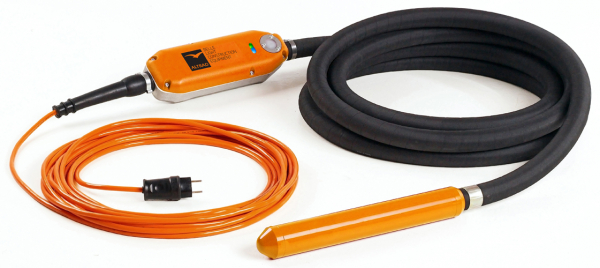

VIBRATECH - 230V 50HZ, diameter 38, 52 or 58 mm
Common Characteristics
Serious, reliable, high frequency electric vibrators designed for the toughest conditions on the site. Vibratech uses a built-in converter that eliminates the need for an additional external power source.
Advantages
Choice of 10m. or 7m. wear-resistant hose to the head for deeper penetration.
15m. power cable.
Simple and robust design for reliable operation.
Long motor life (virtually no maintenance required).
Summer, monolithic, aluminum housing with bevelled edges.
Environmentally friendly product, no emissions.
Technical Data
| Parameter | Value |
|---|
| Length of the hose | 7 / 10
m |
| Needle diameter | 38/52/58
mm |
| Needle length | 330/382/410
mm |
| Centrifugal force | 1825/3420/5075
N |
| Turns | 12000
rpm |
| Weight | 12/17/19
kg |
| Supply Current | 1.3/1.5/1.5
A |
