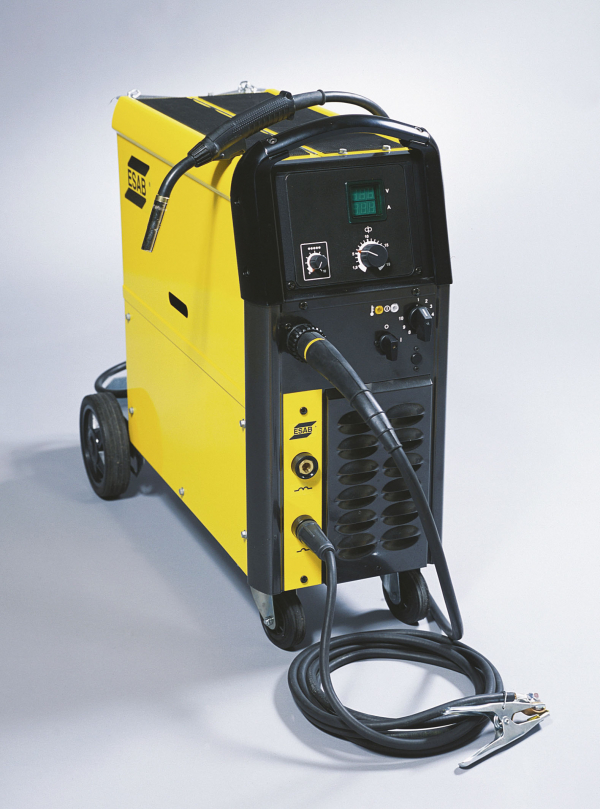

ESAB Origo Mig C340 4WD with PSF305 4.5m.
Common Characteristics
Delivery includes: Welding torch PSF305 4.5m, Mains cable 5m with plug, gas hose 1,5m with clamps and quick connector, earth cable complete, wear parts for 1,0-1,2mm, safety chain for gas bottle and wheels.
• Very good welding properties - stable arc and very finely matched voltage steps
• Also suitable for the welding of aluminium and GMA brazing of galvanized metal sheets
• Galvanized metal housing with optional air filter designed for use under rough conditions
• Two or three inductance connections - optimal arc dynamics
• 4-roll wire feed available - perfect wire conveying
• Professional ESABPSF torches included
• Origo Mig C340 PRO optionally with electric Push-Pull welding torch in 6 or 10 m length
• Simple polarity change - allows the use of solid wire and cored wire
Technical Data
| Parameter | Value |
|---|
| Mains supply | 400/3
V/Ph |
| Fuse | 16
A |
| Setting range | 40 - 340
A |
| Maximum output 30% duty cycle | 340
A |
| Maximum output 60% duty cycle | 250
A |
| Maximum output 100% duty cycle | 195
A |
| Enclosure class | IP23
|
| Dimensions, LxWxH | 840 x 425 x 830
mm x mm x mm |
| Weight | 120
kg |
| Mild steels | 0.6-1.2
mm |
| Stainless steels | 0.6-1.2
mm |
| Cored wires | 0.9-1.2
mm |
| Aluminium | 1.0-1.2
mm |
