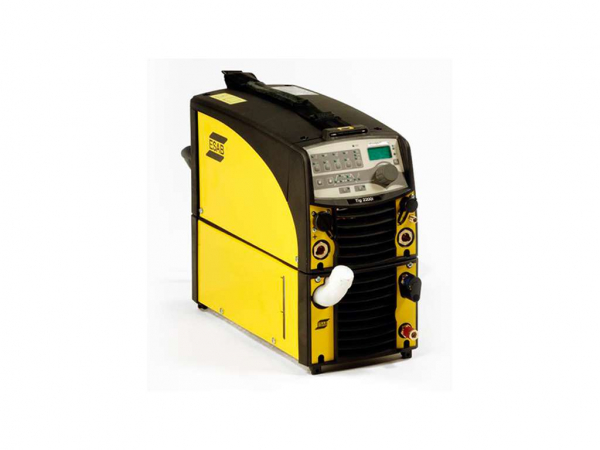

ESAB Caddy Tig 2200iw TA34, with cooling unit
Common Characteristics
Caddy Tig 2200i water-cooled with CoolMini cooler.
CONTROL PANEL TA34
• Graphic illustration of the course of the process
• TIG pulse-welding
• Micro-pulses up to 0.001 s
• Current rise / fall time can be set
• Gas pre-flow / post-flow time can be set
• Parameter storage (2x), can also be called up during welding via the torch button
• Can be controlled remotely / digital display
Technical Data
| Parameter | Value |
|---|
| Mains supply | 230/1
V/Ph |
| Fuse | 16
A |
| Setting range, MMA | 4 - 170
A |
| Setting range, TIG | 3 - 220
A |
| Maximum output 20% duty cycle | 220
m |
| Maximum output 60% duty cycle | 150
A |
| Maximum output 100% duty cycle | 140
A |
| Maximum output 20% duty cycle, MMA | 170
A |
| Maximum output 60% duty cycle, MMA | 130
A |
| Maximum output 100% duty cycle, MMA | 130
A |
| Enclosure class | IP23
|
| Dimensions, LxWxH | 418 x 188 x 359
mm x mm x mm |
| Weight | 13.9
kg |
