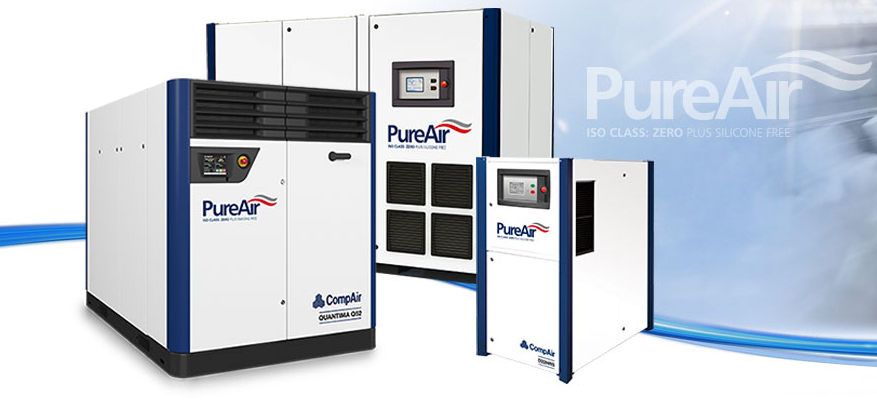

CompAir new range of high efficiency, oil-free two-stage screw compressors to further enhance its successful and award winning D-Series. With the addition of ten new models, the D-Series now covers a wide flow range from 8.9 to 51.8 m3/min. The new models (from 160 to 315kW), which also utilise a CompAir designed and manufactured two-stage airend, offer oil-free and silicone-free air, in accordance with ISO 8573-1 Class 0.
Common Characteristics
- Premium efficiency two stage airend design
- High quality IE3 or IE4 electric motor
- Efficient motor cooling
- High ambient temperatures of up to 45°C
- Delcos XL touch screen controller with enhanced monitoring
- Unique closed cooling water circuit for airend cooling
- Water cooled models available
- Two high efficiency radial cooling fans in accordance with ErP Efficiency Legislation 2015
| Model |
kW |
Free Air Delivered, m3/min
8 bar | 10 bar |
|
7 bar |
8 bar |
|
Fixed Speed |
| D 75 - A / W |
75 |
12.91 |
10.63 |
| D 90 - A / W |
90 |
15.65 |
13.79 |
| D 110 - A / W |
110 |
19.51 |
17.39 |
| D 132 - A / W |
132 |
22.39 |
20.50 |
| D 160 - A / W |
160 |
--- |
22.33 |
| D 165 - W |
160 |
29.10 |
24.90 |
| D 200 - W |
200 |
36.10 |
32.00 |
| D 250 - W |
250 |
44.50 |
37.20 |
| D 315 - W |
315 |
49.20 |
44.50 |
|
Regulated Speed |
| D 110RS-8 A / W |
110 |
8.89 ÷ 19.51 |
--- |
| D 110RS-10 A / W |
110 |
--- |
10.51 ÷ 17.68 |
| D 132RS-8 A / W |
132 |
8.95 ÷ 22.95 |
--- |
| D 132RS-10 A / W |
132 |
--- |
10.51 ÷ 21.10 |
| D 160RS-10 A / W |
160 |
--- |
10.40 ÷ 23.52 |
| D 200RS-8.5 W |
200 |
17.30 ÷ 37.40 |
--- |
| D 200RS-10 W |
200 |
--- |
18.00 ÷ 33.20 |
| D 250RS-8.5 W |
250 |
17.40 ÷ 46.90 |
--- |
| D 250RS-10 W |
250 |
--- |
18.40 ÷ 41.70 |
| D 315RS-8.5 W |
315 |
16.60 ÷ 51.10 |
--- |
| D 315RS-10 W |
315 |
--- |
18.30 ÷ 48.50 |
