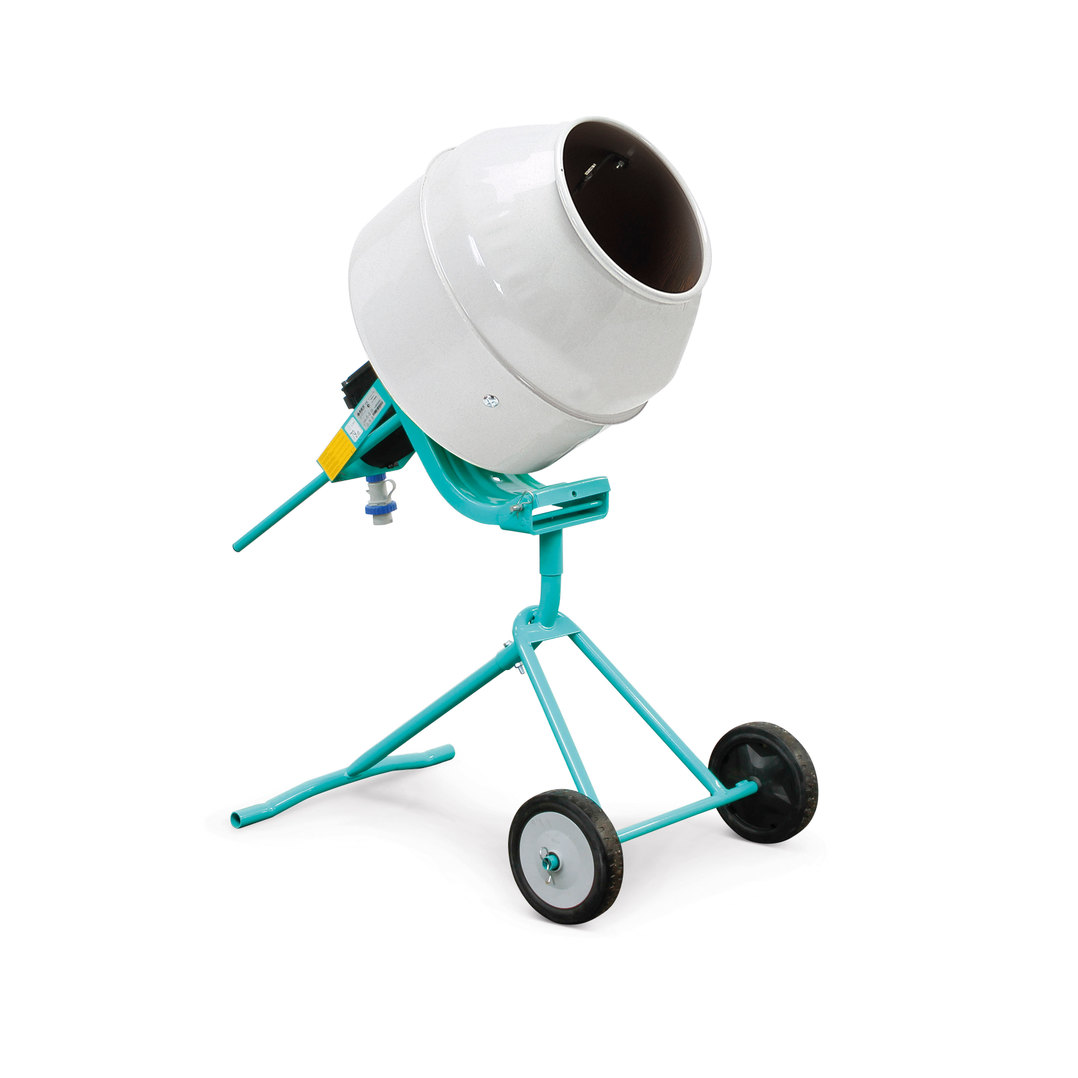

Small-sized concrete mixers. Electric motor. Drum capacity: 134 l.
Compact, lightweight and easy to handle. Simple and fast assembly. Maximum silence. Ideal for working indoors. Single-phase 230V/50Hz (Minibeta) or 115V/60Hz (Minuteman II) electric motor. Available in the versions with steel drum and poly drum (HDPE).
Common Characteristics

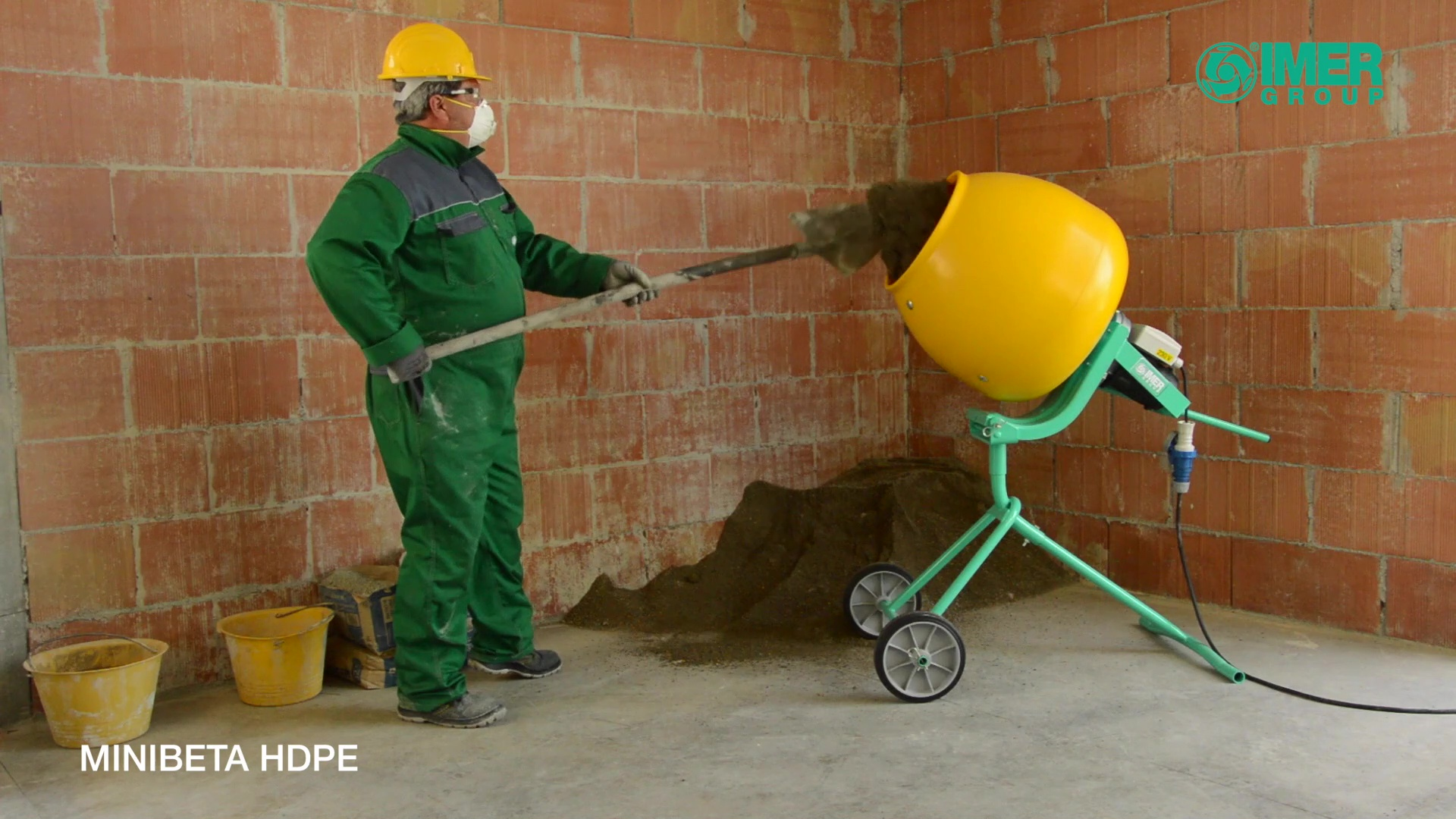

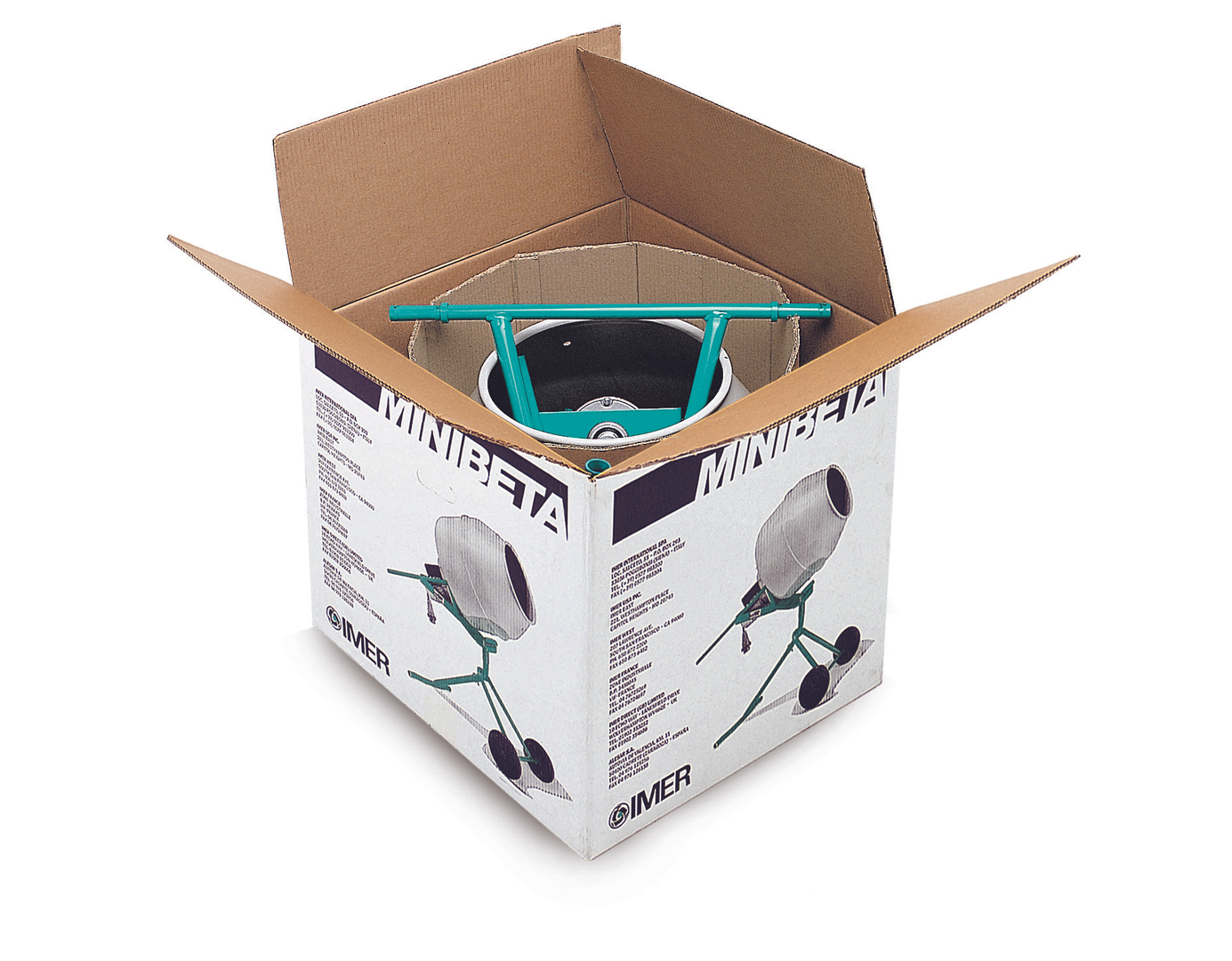

Assembly and disassembly of Minibeta/Minuteman II is simple and takes just 3 minutes. After use, it can be split into the 3 main components and put back in the box. The low noise level of 63 dB(A) makes it particularly suitable for working indoors without causing bother. Fitted with double insulation, it is protected against spraying water (IP55) and also against overload and inadvertent starting again after a power failure.Single-phase 230V/50Hz (Minibeta) or 115V/60Hz (Minuteman II) electric motor.Available in the versions with steel drum and poly drum (HDPE).Minibeta/Minuteman II concrete mixers can be stacked to facilitate transport and storage operations.
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 138
l |
| Batch output | 100
l |
| Drum diameter | 610
mm |
| Weight | 55
kg |
| Electric motor power rate | 0.3
kW |
| Machine dimensions with el. motor L x H x W | 720 x 1300 x 1430
mm |
| Noise level | 63
dB(A) |
| Electric power supply | 230/50
V / Hz |
