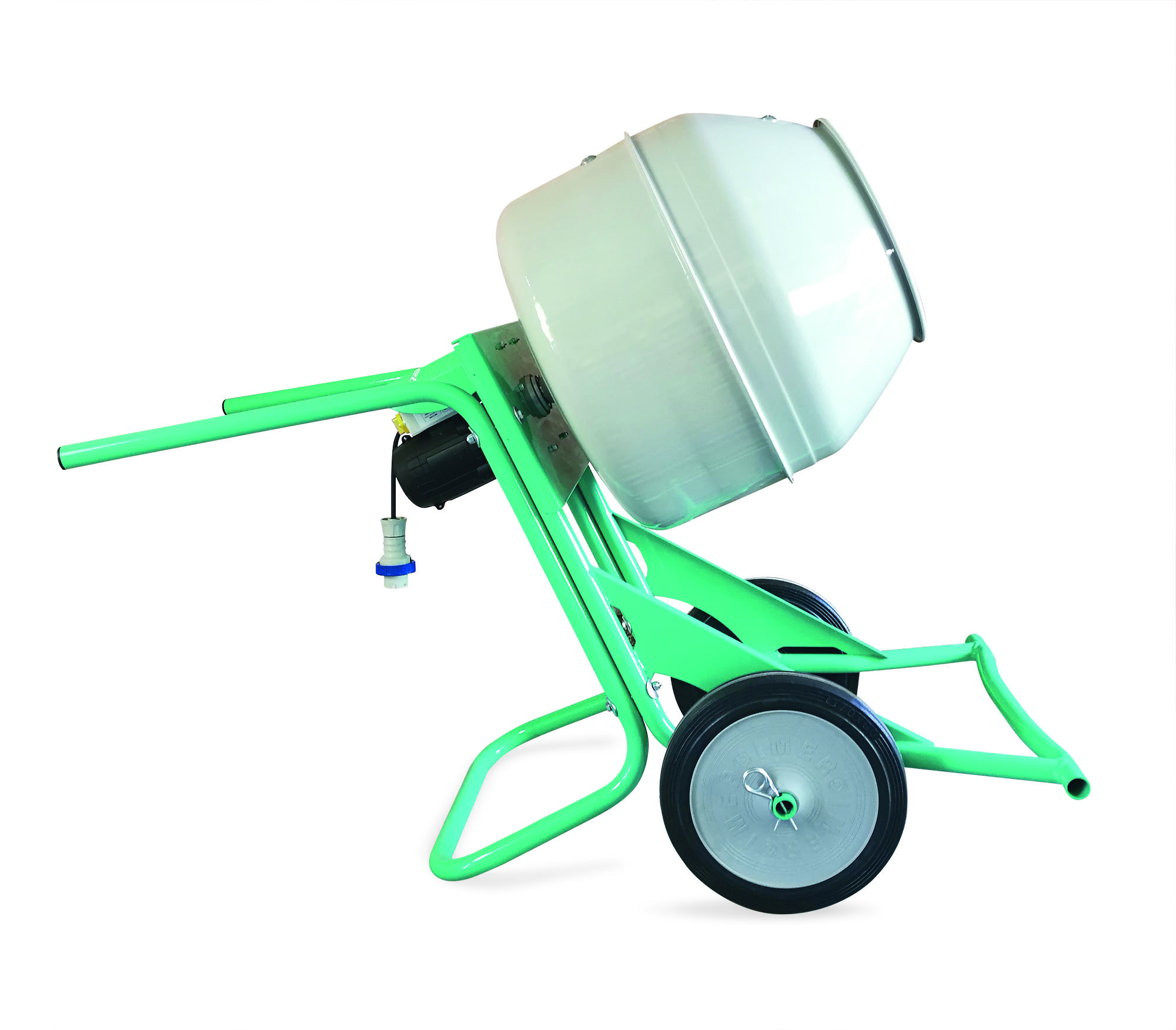

Small-sized concrete mixer with high discharge.
Common Characteristics
• Single-phase 230V/50Hz electric motor
• Gearmotor with steel and technopolymer gears
• Electric safety: double insulation, protected against spraying water (IP 55) and against overload and inadvertent starting again after a power failure.
• Easy access to the drum during the material loading
• Easy to use in narrow spaces, with possibility of transport to the floor
• Oversized solid wheels ensure the stability on any construction site
• It allows to unload the material directly to the wheelbarrow (without the necessity to use the trestle)
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 134
l |
| Batch output | 100
l |
| Drum diameter | 610
mm |
| Weight | 52
kg |
| Electric motor power rate | 0.3
kW |
| Machine dimensions with el. motor L x H x W | 653 х 1489 х 1217
mm |
| Noise level | 63
dB(A) |
