Simple and fast assembly. Maximum silence. Ideal for working indoors.
Models:

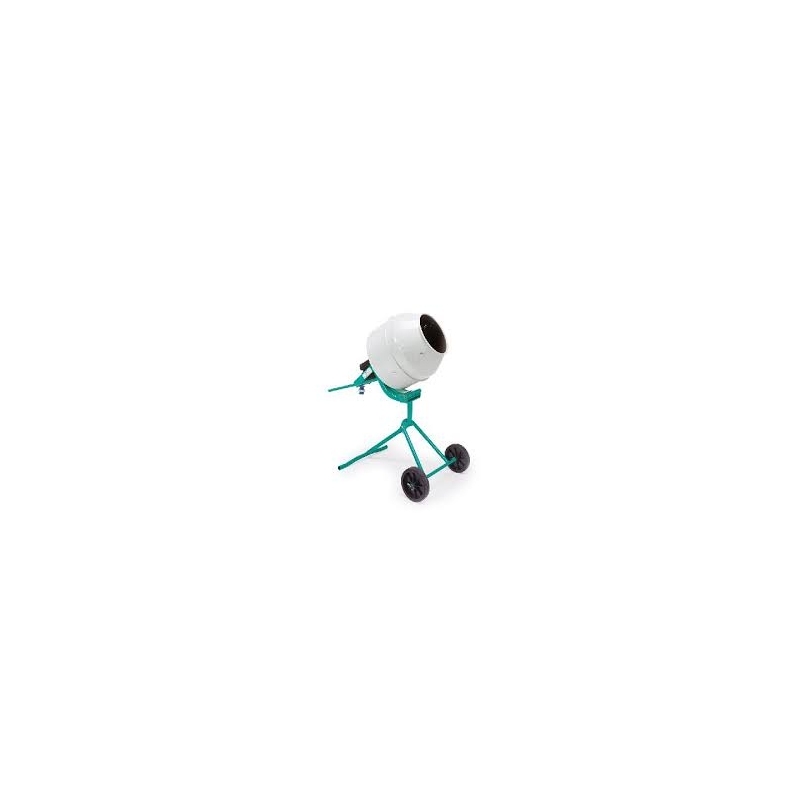

Minibeta 130
Minibeta 130 2P (HDPE)
Common Characteristics
• Single-phase 230V/50Hz motor
• Gearmotor in die-cast aluminium with gears in oil bath protected by a shatter-resistant plastic housing;
• Available in the versions with steel drum and poly drum (HDPE)
• IP 55 switch with no-volt coil and IP 67 plug
• Electric safety: built to EN 60204-1 double insulation norms, protected against spraying water (IP 55), overload and also against inadvertent starting again after a power failure.
• Steel mixing paddles
• Packing: cardboard
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 138
l |
| Batch output | 100
l |
| Drum diameter | 610
mm |
| Weight | 55
kg |
| Electric motor power rate | 0.3
kW |
| Machine dimensions with el. motor L x H x W | 720 x 1300 x 1430
mm |
| Noise level | 63
dB(A) |
