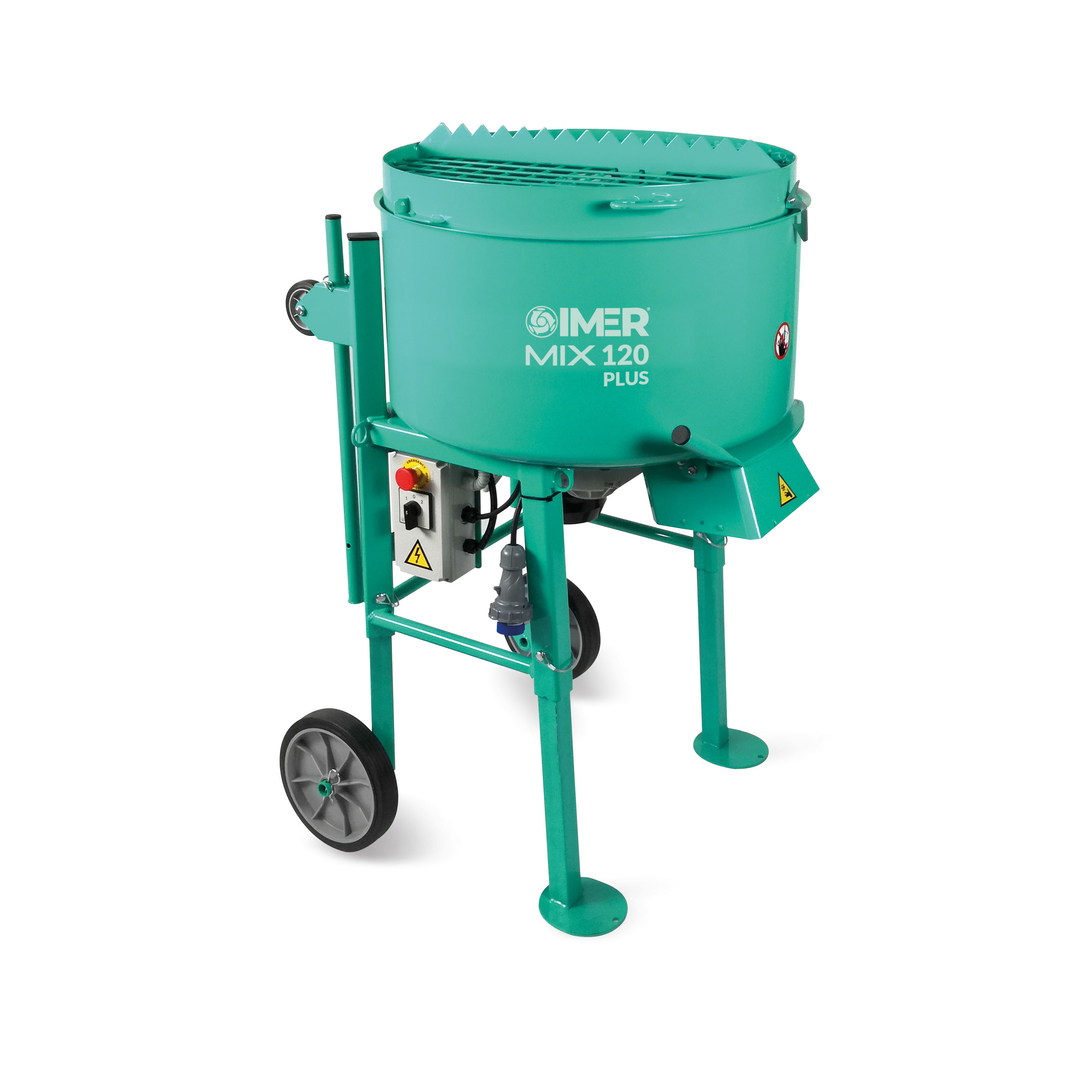

Planetary mortar mixer with forced action. Drum capacity 120 l.

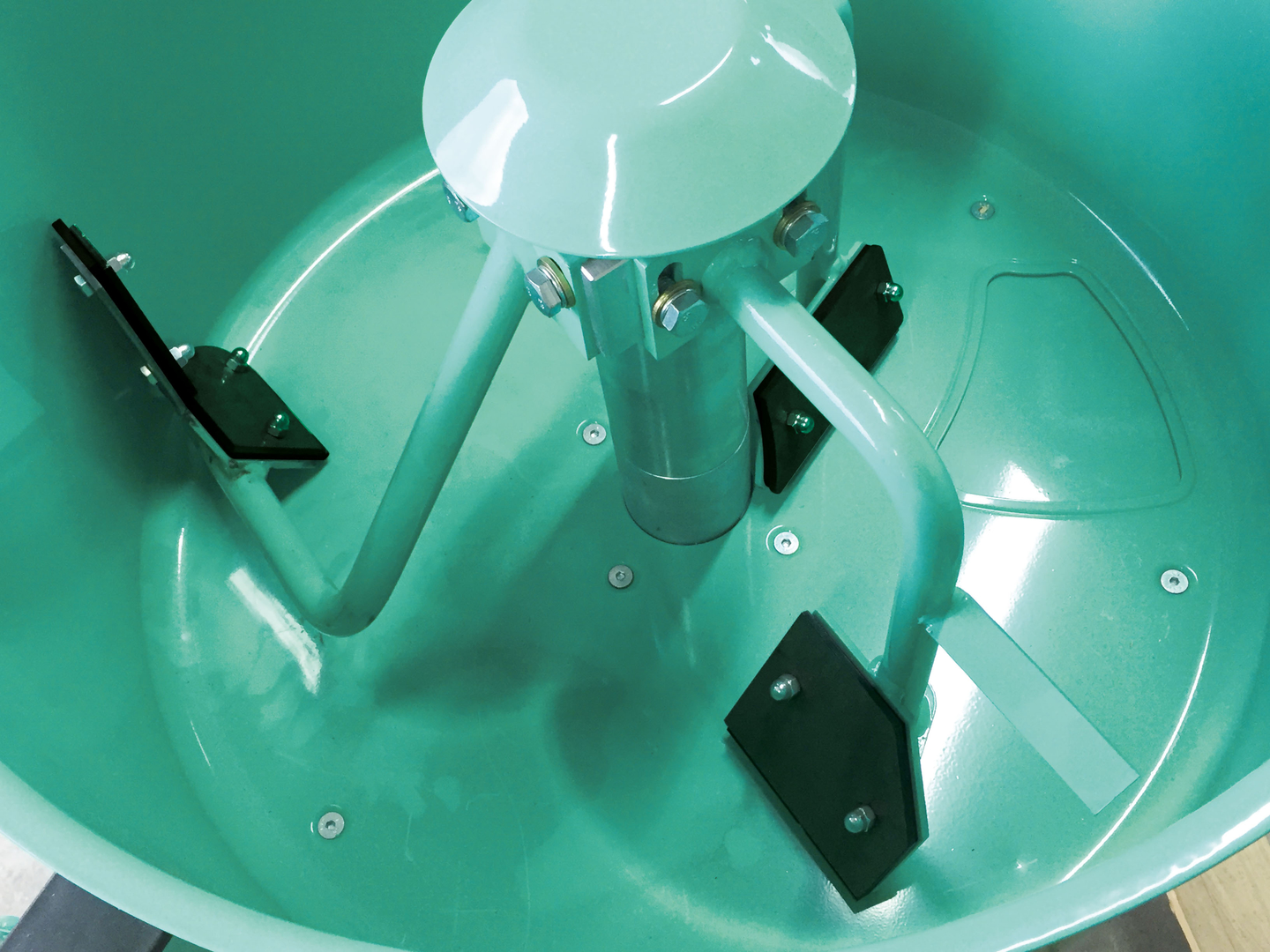

Lightweight and easy loading in small transport vehicles. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible. Paddle rotation reversing gear.
Common Characteristics

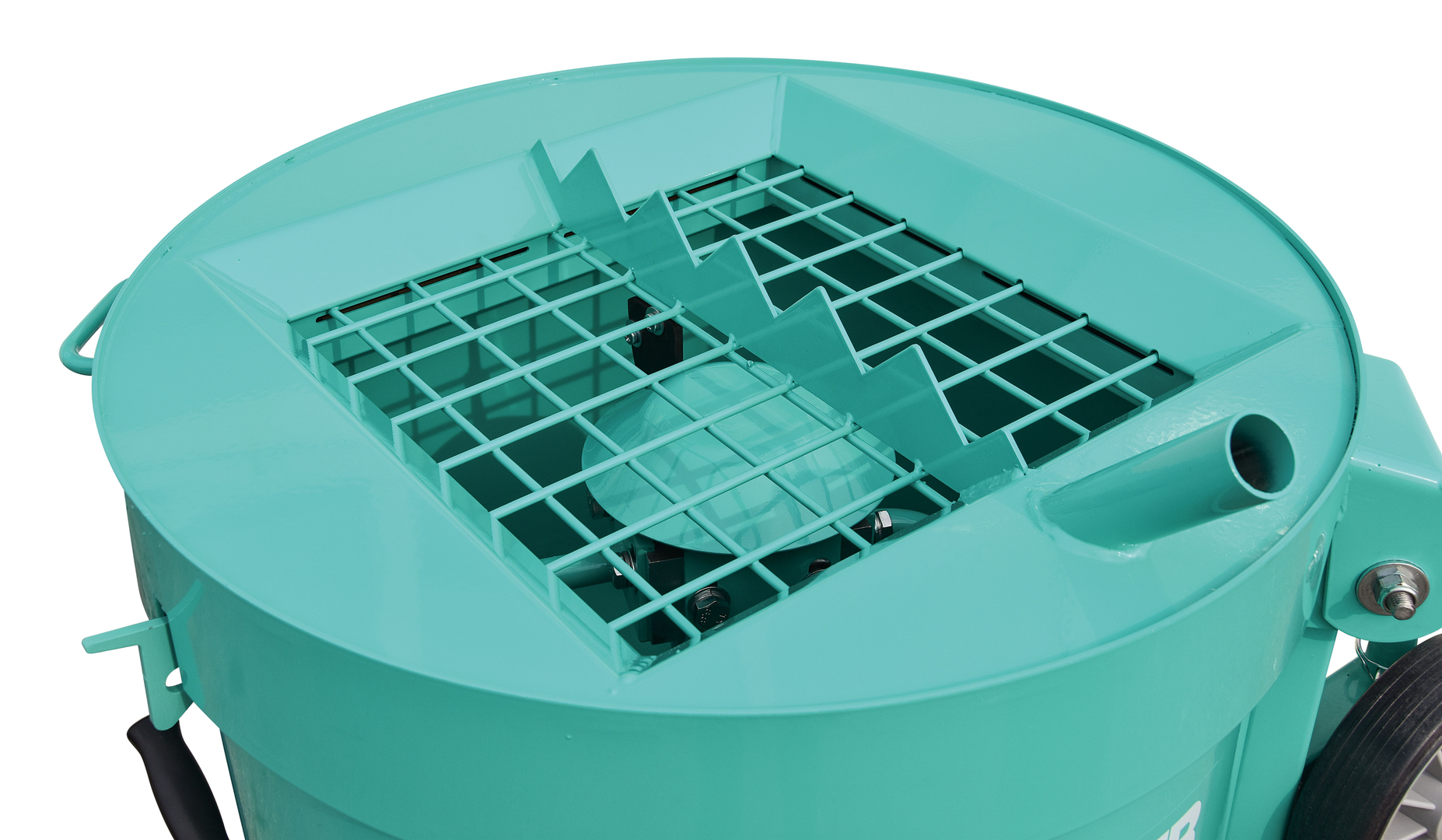

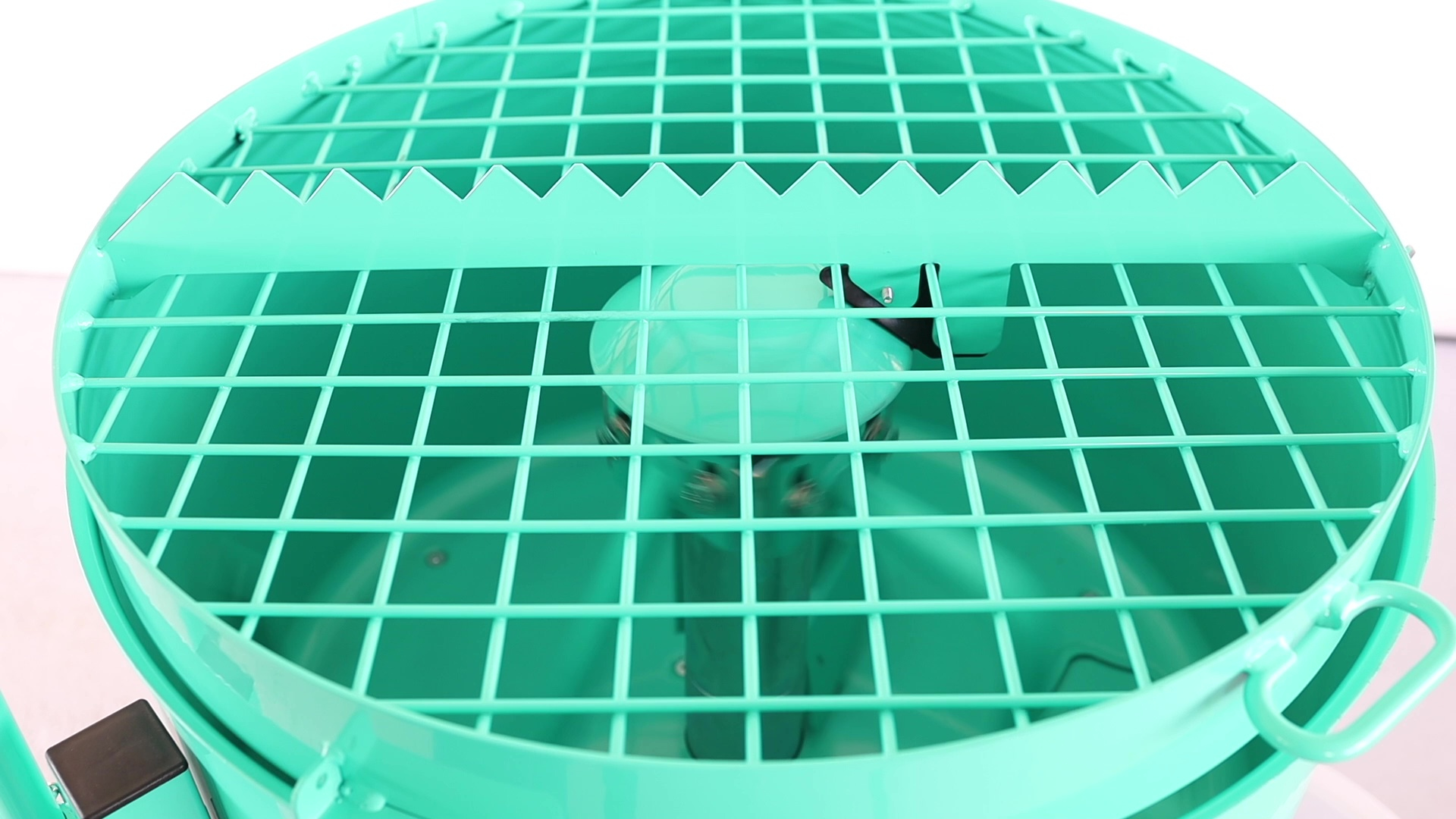

Small size, lightweight and easy loading in small transport vehicles. The I-DUST grid (optional), with connection for vacuum cleaner, limits the dust in the surrounding environment. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible.The rotation direction of the paddles allows to disintegrate any lumps and resume normal mixing without direct manual intervention.If necessary, Mix 120 Plus can be used to mix traditional products, with the maximum mixing performance and quality of the mixture.
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 120
l |
| Batch output | 90
l |
| Drum diameter | 700
mm |
| Rotations | 38
rpm |
| Weight | 130
kg |
| Electric motor power rate | 1.4
kW |
| Machine dimensions with el. motor L x H x W | 890 x 1282–1217 (max–min.) x 739
mm |
| Noise level | 70
dB(A) |
| Max grain size | 8
mm |
| Electric power supply | 230/50
V / Hz |
