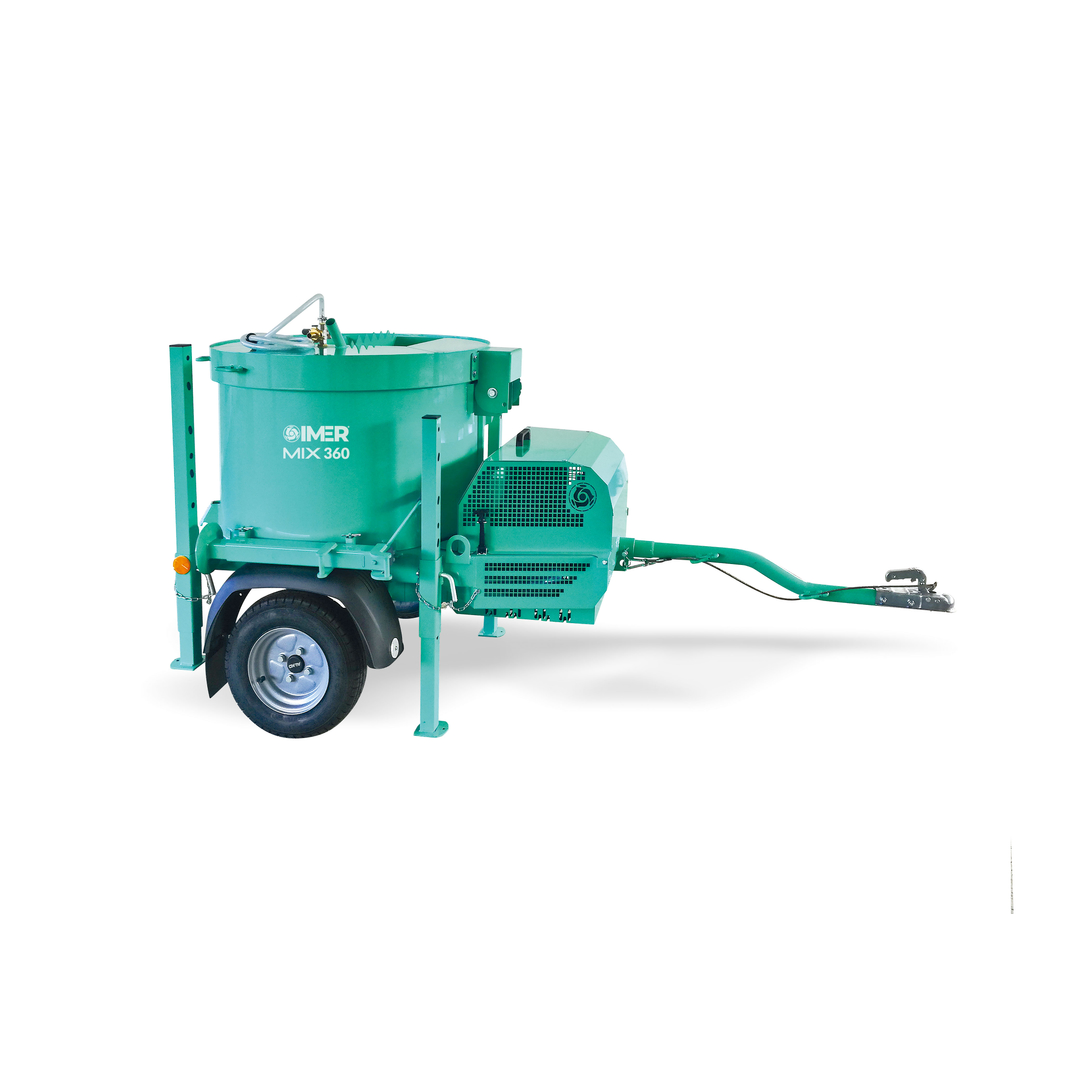

Planetary mortar mixer with forced action. Drum capacity 360 l.
Large capacity and excellent maneuverability thanks to the reduced size and weight. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible. Version approved for road towing (with optional light bar kit added).
Common Characteristics
Large capacity and excellent maneuverability thanks to the reduced size and weight. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible. Version approved for road towing (with optional light bar kit added).
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 360
l |
| Batch output | 200
l |
| Drum diameter | 950
mm |
| Rotations | 35
rpm |
| Weight | 357
kg |
| Electric motor power rate | 3
kW |
| Machine dimensions with el. motor L x H x W | 2779 х 1400–1660 х 1187
mm |
| Noise level | 70
dB(A) |
| Electric power supply | 400/50
V / Hz |
