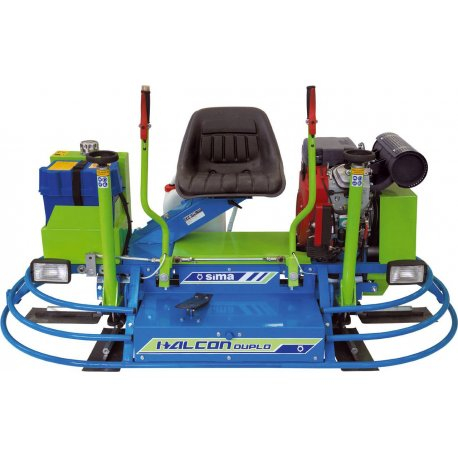

Mechanical ride-on-trowel with 2 x 90 cm rotors. Motor: Honda Petrol 23 Hp.
Common Characteristics
Benefits:
• A perfect finishing.
• Chromium plated centrifugal clutch, ensuring the highest performance at high, medium and low engine revs.
• Emergency stop system (“dead-man release handle”), in accordance with EC safety regulations.
• Easy and accessible blades pitch regulation.
• Water tank with submersible pump to sprinkle water.
• Safety handles for emergency stop.
• Three headlights.
•Mechanical angle blades adjustment
• 23 Hp Honda motor with battery and electric starter.
• Adjustable seat position
Technical Data
| Parameter | Value |
|---|
| Reference Engine | HONDA GX630
|
| Engine / Motor Power | 17.13
Kw |
| R.P.M. Motor | 3600
rpm |
| Blade diameters | 2 х 900
mm |
| Blades R.P.M | 130
rpm |
| Fuel consumption | 7.1
l/h |
| Dimensions (LxWxH) | 2044x1076x1085
mm |
| Weight | 312.4
kg |
