Used for heavy work in renovation, demolition, road building, line installation and more.
Operator friendly VR - The vibro-reduced handles with four dampening springs, central pivot pin and long solid steel handles give better vibration reduction and a high level of operator comfort
High power
Powerful, reliable performance day in and day out
Common Characteristics

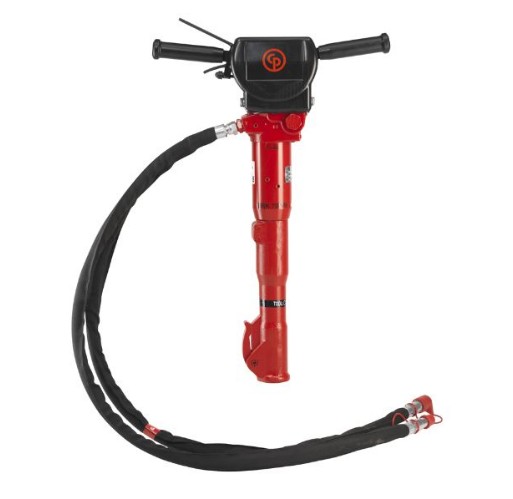

BRK 70 - Heavy-duty, multi-purpose breakers, ideal for heavier jobs in tough materials such as asphalt, frozen soil, and reinforced concrete. The oil flow divider reduces flow and pressure, allowing you to run the tool from hydraulic-powered carriers.
They work at a standard flow rate of 30 l/min and at 20 l/min with a simple adjustment.
Technical Data
| Parameter | Value |
|---|
| Length | 765
mm |
| Oil Flow | 20-30
l/min |
| Working Pressure | 110-125
bar |
| Maximum Return Line Pressure | 15
bar |
| EHTMA Class | C/D
|
| Vibration Level 3 Axes (ISO 28927-10) | 4.6
m/s2 |
| Sound Power Level Guaranteed (2000/14/EC) | 107
dB(A |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) | 95
dB(A |
| Impact Rate | 1350-1750
blow/min |
| Shank Size Hex | 32 x 160
mm |
| Weight with Hoses | 32.5
kg |
