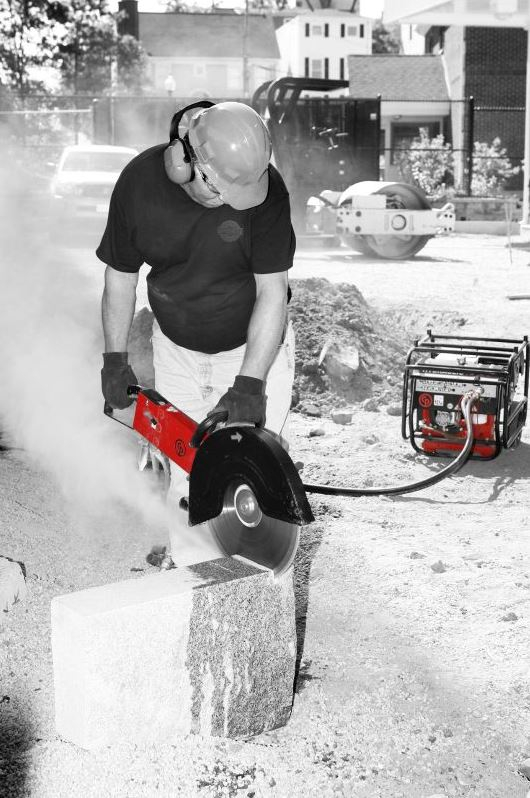

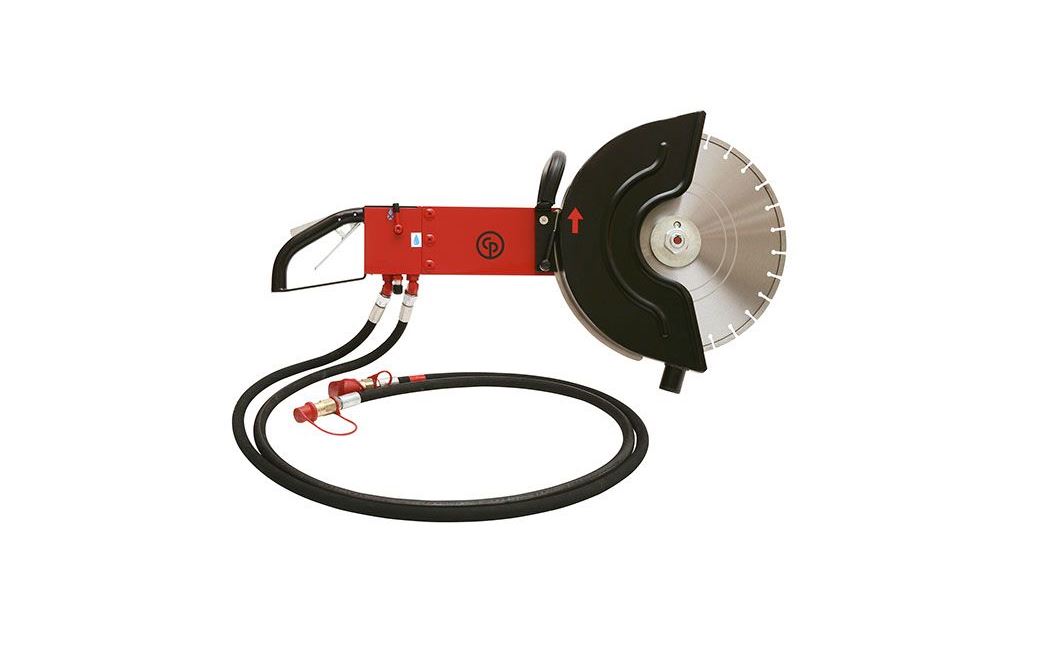

They may be light and compact, but don’t be fooled. A hydraulic cut-off saw with the right blade will cut through concrete, asphalt and steel. With our 16-inch saw at full throttle, you have the raw power of a gasoline-powered engine in your hand.
Common Characteristics
• Easy to use thanks to the open cutting face
• Simple, direct drive configuration reduces maintenance
• Water kit available to provide a supply of cooling water
Technical Data
| Parameter | Value |
|---|
| Vibration Level 3 Axes (ISO 28927-10) | 4.9
m/s2 |
| Sound Power Level Guaranteed (2000/14/EC) | 115
dB(A |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) | 102
dB(A |
| Weight with Hoses | 13
kg |
| Service Weight including Disc | 15
kg |
| Disc Size | 405
mm |
| Arbor Size | 25.4
mm |
| Cutting Depth | 160
mm |
| Oil Flow | 20-40
l/min |
| Revolutions | 2000-4000
rpm |
| Speed | 42-85
m/s |
| Maximum pressure | 172
bar |
