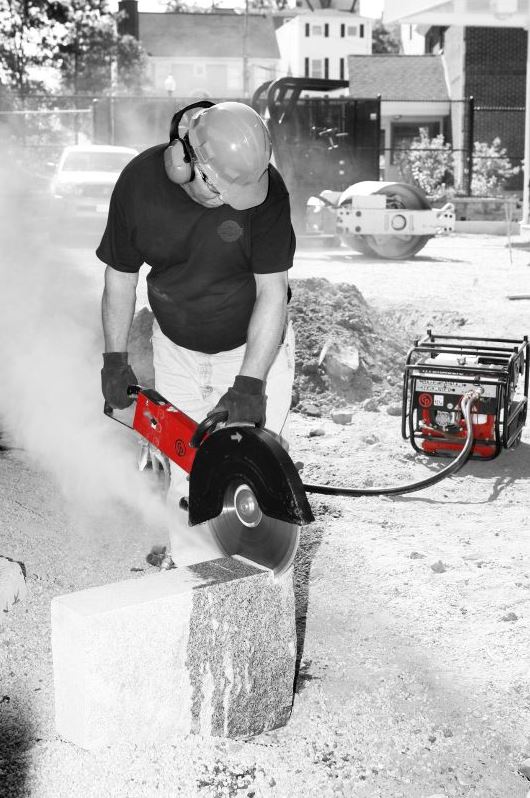

They may be light and compact, but don’t be fooled. A hydraulic cut-off saw with the right blade will cut through concrete, asphalt and steel. With our 16-inch saw at full throttle, you have the raw power of a gasoline-powered engine in your hand.
Common Characteristics
• Easy to use thanks to the open cutting face
• Simple, direct drive configuration reduces maintenance
• Water kit available to provide a supply of cooling water

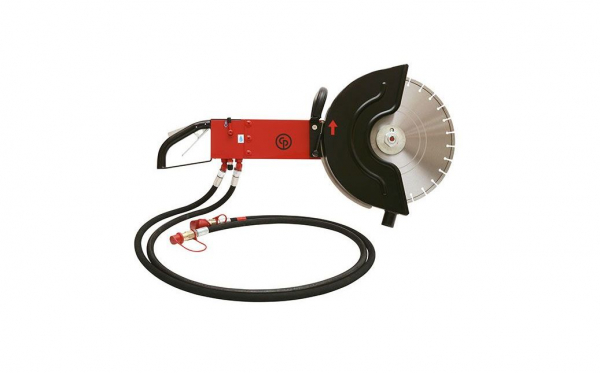

Models CP SAW 14 / CP SAW 16
Technical Data
| Parameter | Value |
|---|
| Weight with Hoses | 12/13
kg |
| Service Weight including Disc | 13.5/15
kg |
| Disc Size | 355/405
mm |
| Arbor Size | 25.4
mm |
| Cutting Depth | 133/160
mm |
| Oil Flow | 20-30/20-40
l/min |
| Revolutions | 2500-4000/2000-4000
rpm |
| Speed | 46-75/42-85
m/s |
