Driving down posts or rods for fences, road signs, crash barriers, tent anchors, or other purposes calls for a tough machine with plenty of power. CP post drivers deliver, whether it’s in soft soil or rock-hard asphalt. The sheer force of the blows is impressive, so you can drive down posts in record time with virtually no effort
Common Characteristics

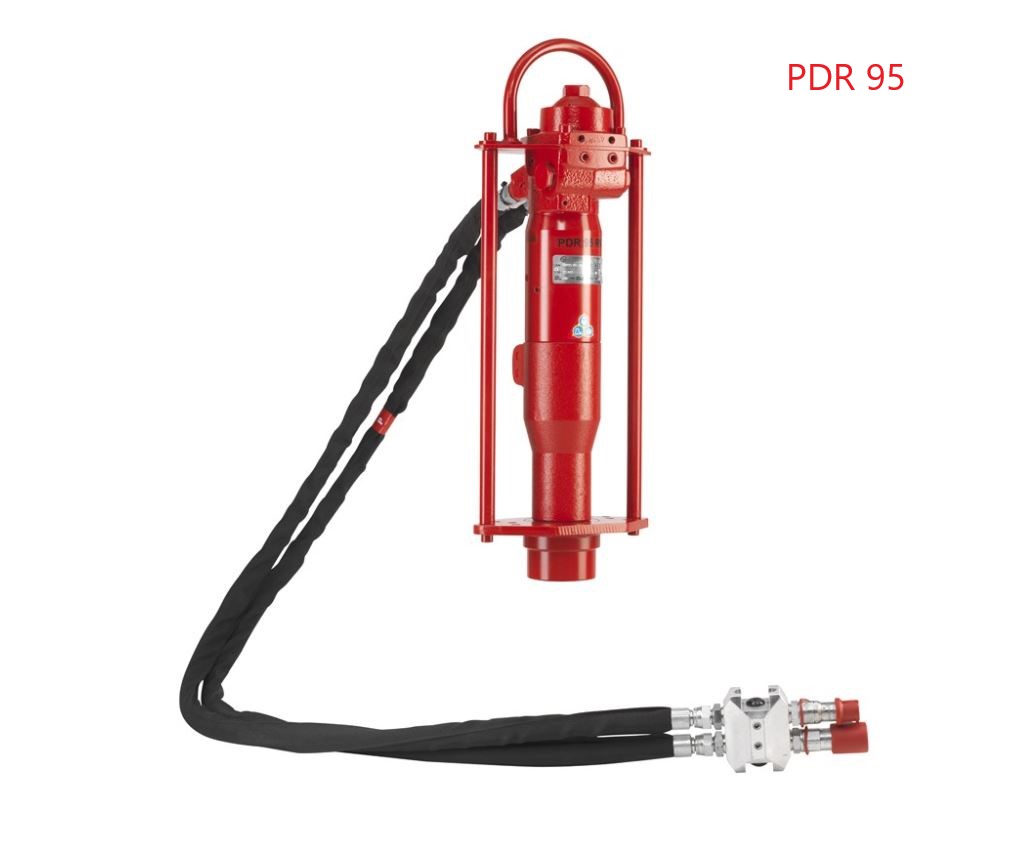

PDR 95: HEAVY-DUTY DRIVER
The PDR 95 drives large posts in the toughest sand or soil conditions. It’s designed so that the striking piston hits drive adaptors directly for maximum driving power. Adaptors are available for posts up to 150 mm in diameter. For large-scale jobs, the PDR 75 and PDR 95 are often used together with tractors or cranes, which make it easier to lift and guide the driver.
T VERSIONS - Trigger function is mounteddirectly on the driver for short post driving
RV VERSIONS - Equipped with an On/Off valve mounted at the end of a 2 m long tail hose for remote
operation on long poles. On long poles, the post driver is lifted up together with the pole.
Technical Data
| Parameter | Value |
|---|
| Working Pressure | 105-125
bar |
| Maximum Return Line Pressure | 15
bar |
| EHTMA Class | D/E
|
| Sound Power Level Guaranteed (2000/14/EC) | 118
dB(A |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) | 105
dB(A |
| Weight with Hoses | 39.8
kg |
| Oil Flow | 28-40
l/min |
| Post/rod diameters | 70-150
mm |
| Impact rate at 30 l/min | 1320
bpm |
