Driving down posts or rods for fences, road signs, crash barriers, tent anchors, or other purposes calls for a tough machine with plenty of power. CP post drivers deliver, whether it’s in soft soil or rock-hard asphalt. The sheer force of the blows is impressive, so you can drive down posts in record time with virtually no effort.
Common Characteristics

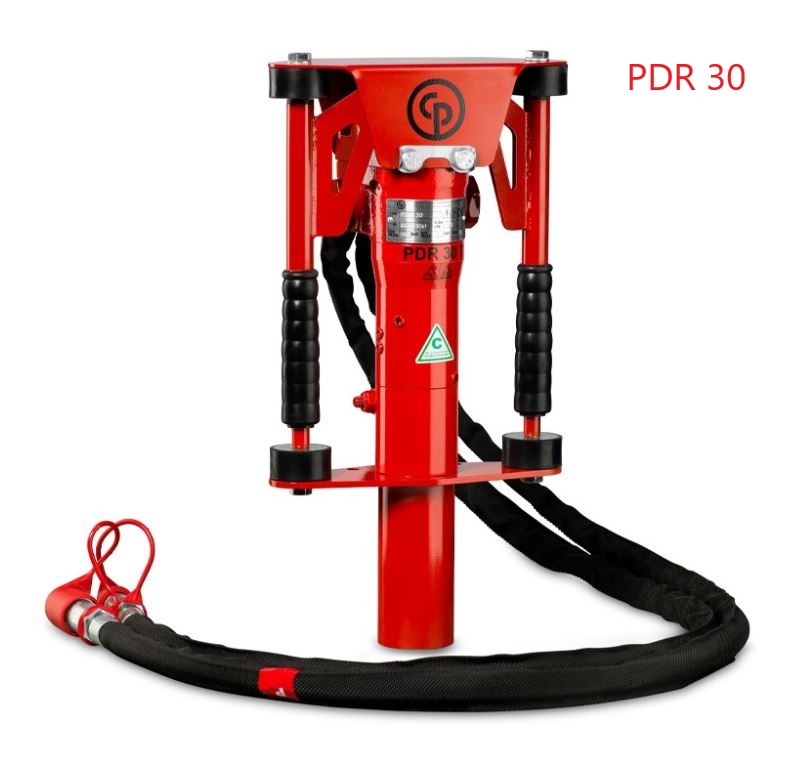

PDR 30 T: LIGHTWEIGHT, HIGH-FREQUENCY DRIVER
The PDR 30 T has a built-in trigger handle for fast driving of small-diameter rod, anchors, fencing, tent stakes and earth connectors. It accepts standard 50 mm rods. Adaptors or bushing inserts are available for 18-65 mm rods.
Technical Data
| Parameter | Value |
|---|
| Maximum Return Line Pressure | 10
bar |
| EHTMA Class | C
|
| Vibration Level 3 Axes (ISO 28927-10) | 17.5
m/s2 |
| Sound Power Level Guaranteed (2000/14/EC) | 116
dB(A |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) | 102
dB(A |
| Impact Rate | 2300
blow/min |
| Weight with Hoses | 17.6
kg |
| Oil Flow | 20
l/min |
| Working Pressure | 80-100
bar |
| Post/rod diameters | 10-60
mm |
