For removing steel or wooden fence posts, crash barriers, or concrete foundations.
Common Characteristics

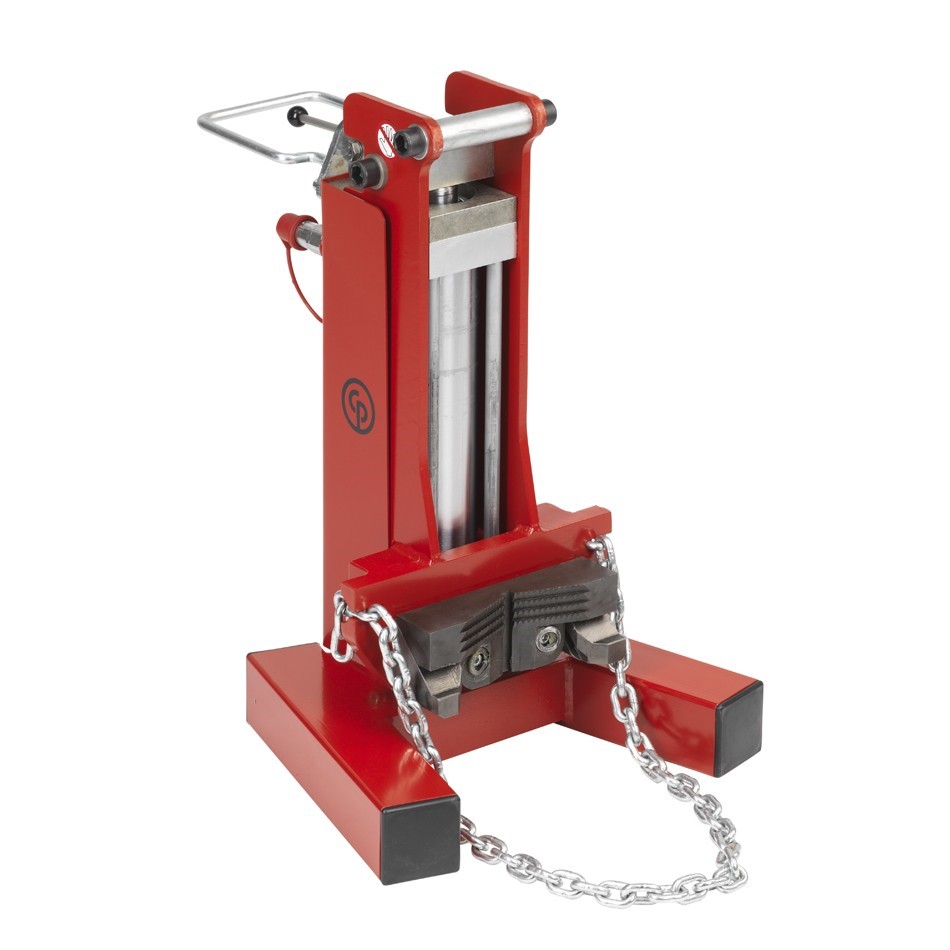

Removing steel or wooden fence posts, crash barriers, or concrete foundations? With 6 tons of pulling power and an automatic chain-tightening clamp, the CP post puller has the muscle you need
to get the job done.
The machine accepts a wide range of different shapes and, if needed, you can use a separate hand lever to add another 4 tons of pulling force!

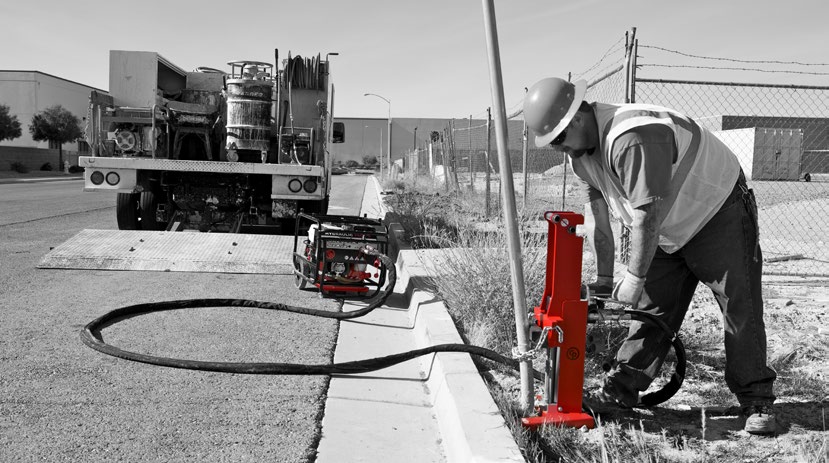

The CP post puller can be powered by a hydraulic power pack, or connected to a hydraulic outlet on a truck, excavator or loader.
Technical Data
| Parameter | Value |
|---|
| Oil Flow | 20-40
l/min |
| Working Pressure | 100-160
bar |
| Maximum Return Line Pressure | 30
bar |
| EHTMA Class | C/D/E
|
| Service Weight with Hoses and Chain | 60
kg |
| Lift Capacity Per Stroke | 12-200
mm |
| Pulling Force | 6 000
kg |
| Full Pulling Force | 10 000
kg |
