Common Characteristics

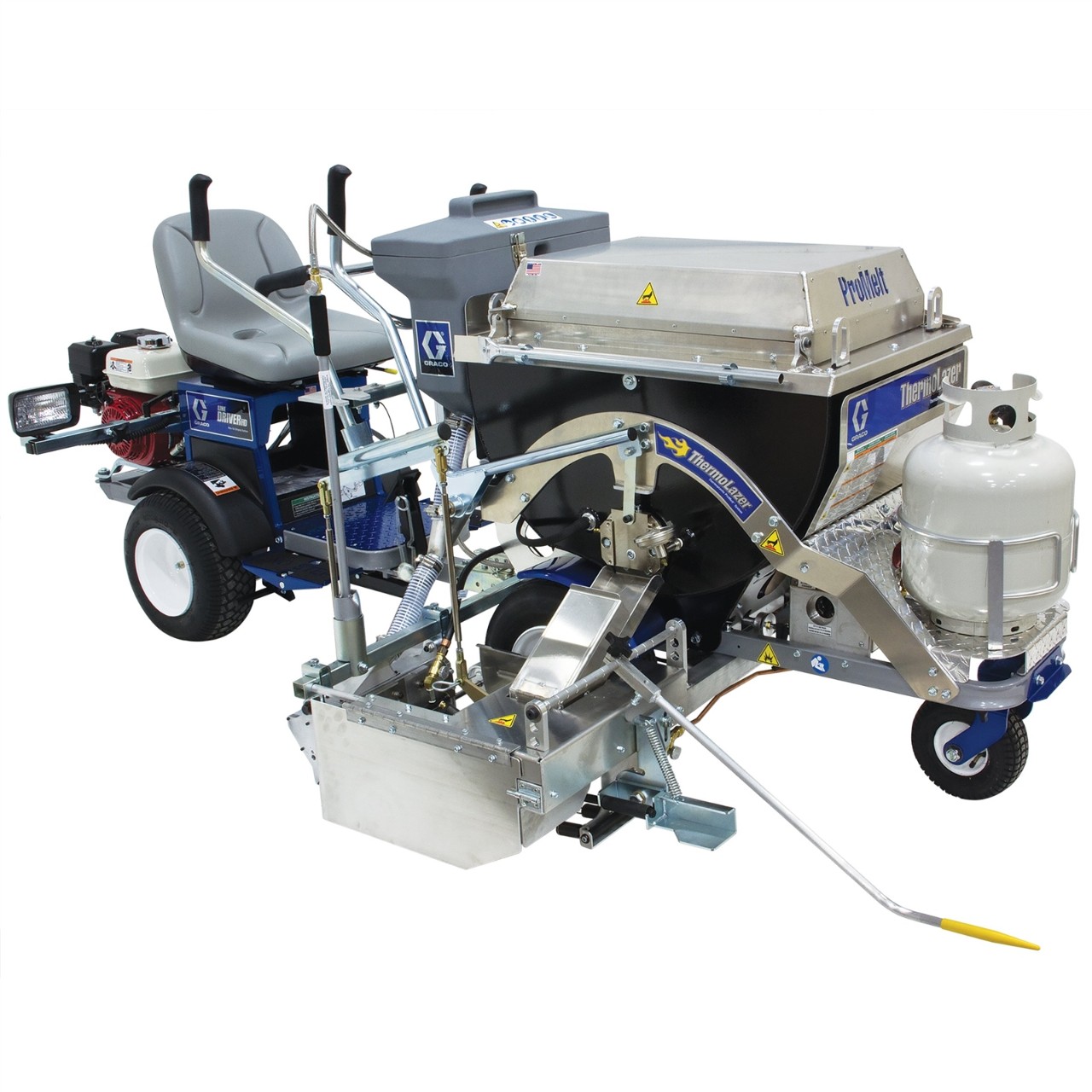

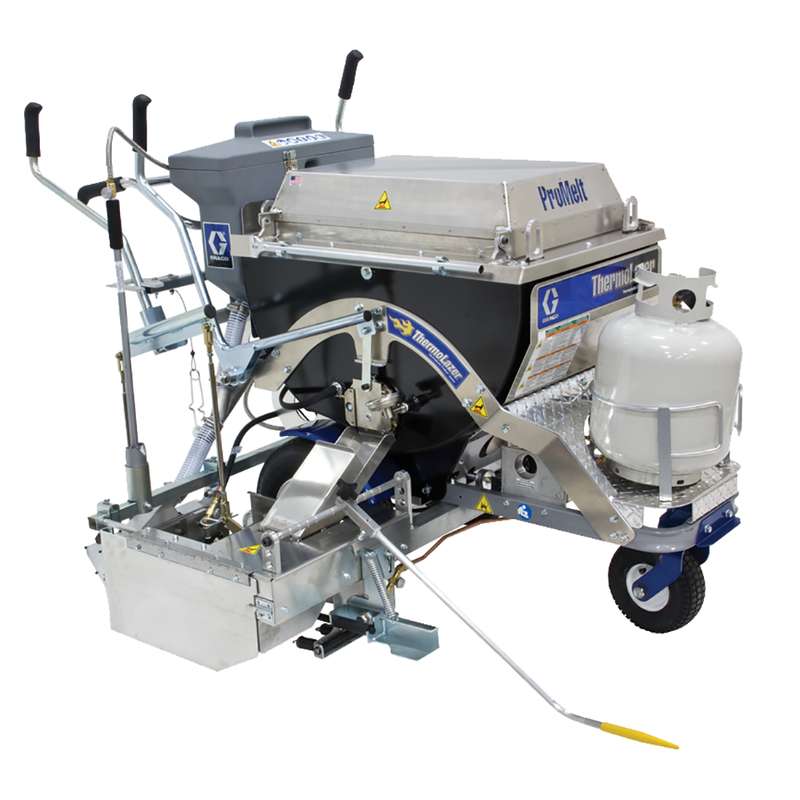

The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labour, resulting in more money in your pocket. Graco's breakthrough technology allows you to melt 135 kg of thermoplastic on board in less than an hour.
ProMelt Technology
The 4 chamber melting system offers more surface area to melt thermoplastic quickly
With 100000 BTU's the melt time is faster resulting in more finished jobs every day
SmartDie II System
Fast change-out system - Hardened steel dies with a built-in mil thickness adjustment system
Use with or without heat - Allows you to optimise your striping in all weather conditions
"Floats" with the surface - Puts the thermoplastic where you want it for superior line quality
External heat system - 4-Torch die heat system keeps it hot
135 kg Material Kettle
Easy-to-fill kettle with PaddleMax Dual mixer for improved mixing
40 kg Split Bead Hopper System
Perfectly matched to the material kettle with a superior flow design
No-tool system allows fast and easy line width changes
Ease-Z-Steer Handle Bar System
Makes turning and handling as simple as a LineLazer system
Adjustable handle bar for users of all sizes
Bead Dispense System
No-tool system allows fast and easy line width changes
30 cm dispenser with 2.5 increments allows you to "dial-in" the drop rate
Ergonomic Design
Easier to use and almost effortless to push/pull, just like the proven LineLazer design
Optional LineDriver System
Double your striping productivity and get straighter lines with less fatigue
Move between jobs without having to push
Patented Dual Pedal System - Multiple positions allow for simple forward and reverse
