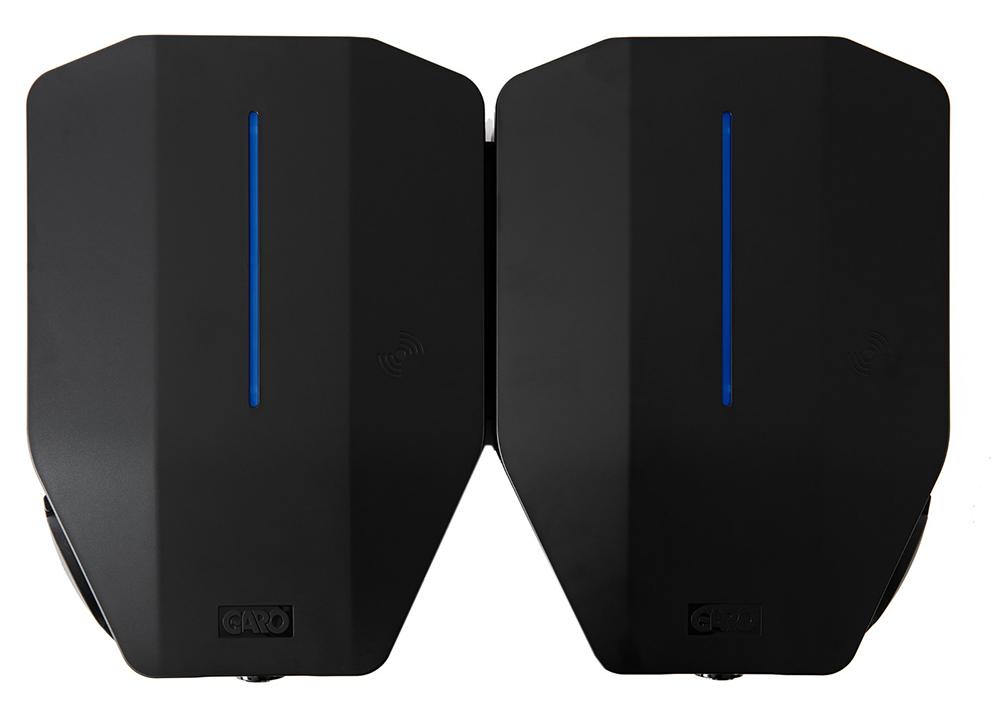

Charging station Double GARO Entity PRO 2x22 kW with socket
Common Characteristics
Charging station Entity Pro Double 2x22kW with outlet, phasebalancing and modem with SIM Garo Connect. Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Entity PRO comes with an outlet. Built-in Energymeter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Complete wallbox.
Technical Data
| Parameter | Value |
|---|
| Socket or Tethered | контакт
|
| Lead AC Output Current | 32 + 32
A |
| Power outlet | 22 + 22
kW |
| Rated voltage | 230 / 400
V AC |
| Frequency | 50
Hz |
| Temperature range | -40 до +40
C |
| Degree of protection | 54
IP |
| Location | Стена или стойка
|
| DC Monitoring | Стандартно
|
| Load management | Стандартно
|
| Local Meter | вграден електронен
|
| Communication | 4G, LAN, Mesh WiFi
|
| RFID | Стандартно
|
| Protocol | OCPP1.5 / 1.6
|
| Certifcation | EN 61851-1, IEC 61439-7, ISO 15118, IEC 61851-1-2017
|
