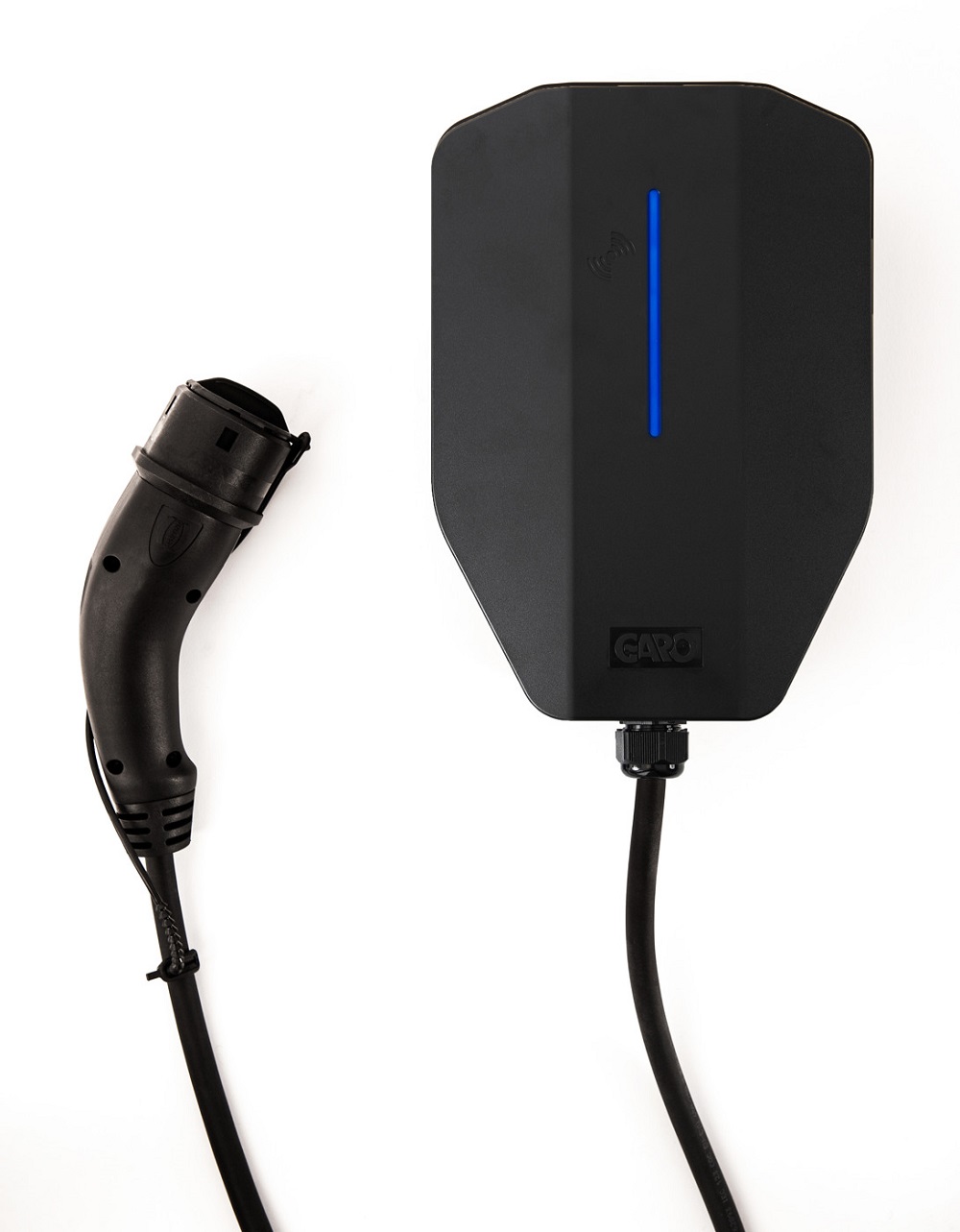

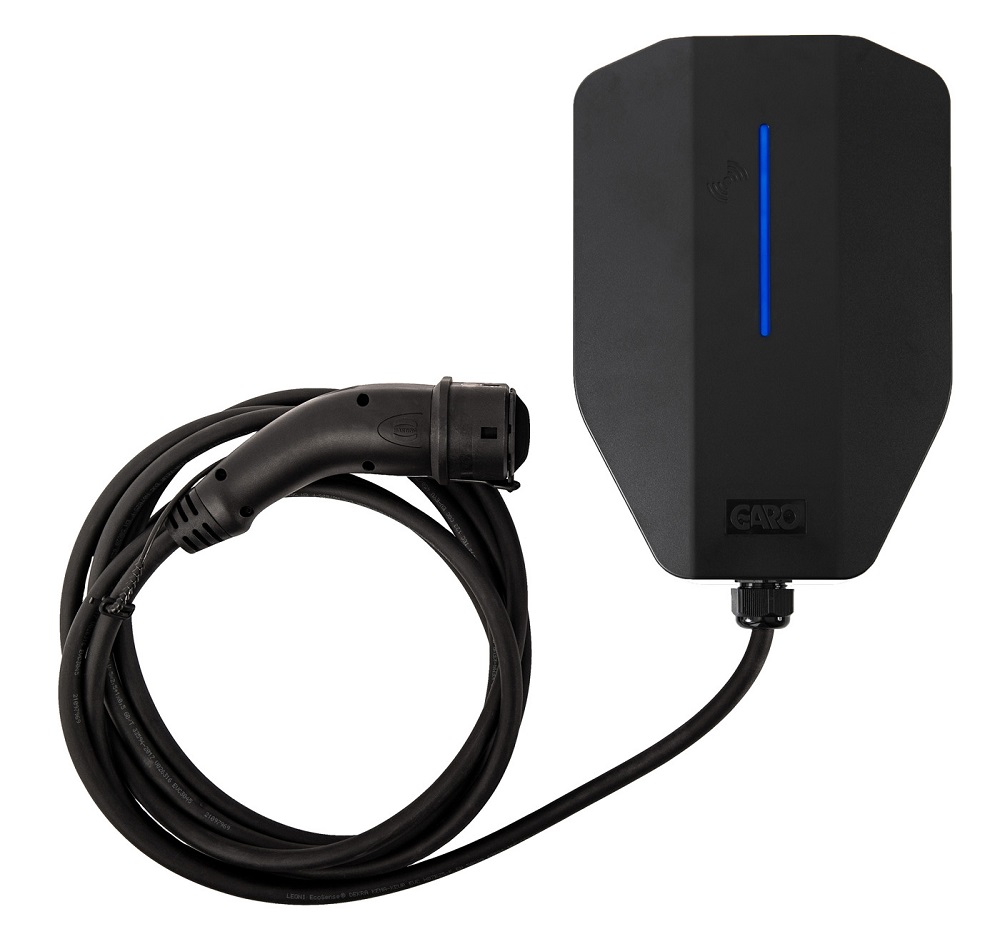

Charging station GARO Entity Compact 14 kW with 5 m fixed cable
Common Characteristics
Entity Compact Wallbox 14kW with fixed cable 3x20A 5m, modem and SIMcard GARO connect.
A complete device with all component parts: An installation bracket, a charger and a front panel. Available for purchase with a fixed cable in various lengths. Built-in fuse and electronic meter.
Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements.
The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet connection using Ethernet, Wi-Fi or built in modem.
Technical Data
| Parameter | Value |
|---|
| Socket or Tethered | кабел 5м
|
| Lead AC Output Current | 0 до 20
A |
| Power outlet | 13.9
kW |
| Rated voltage | 230 /400
V AC |
| Frequency | 50
Hz |
| Temperature range | -40 до +40
C |
| Degree of protection | 54
IP |
| Weight | 4.10
kg |
| Location | стена или стойка
|
| DC Monitoring | стандартно
|
| Local Meter | стандартно
|
| Communication | LAN, 4G, mesh WiFi
|
| RFID | стандартно
|
| Certifcation | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118
|
| Dimensions | 26.8 х 19 х 10.2
H x W x D cm |
