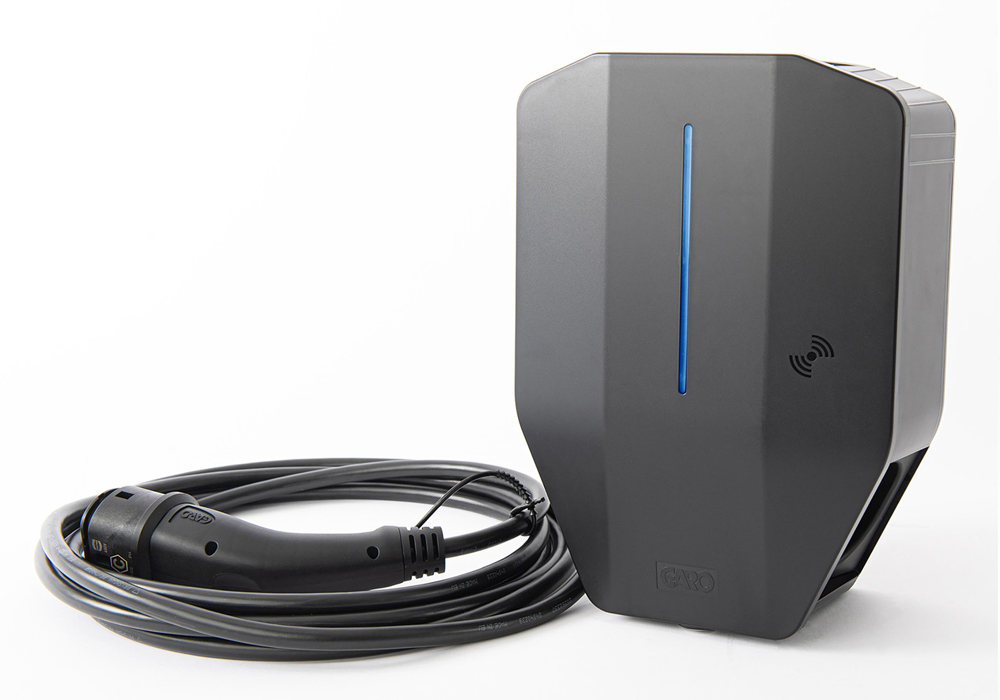

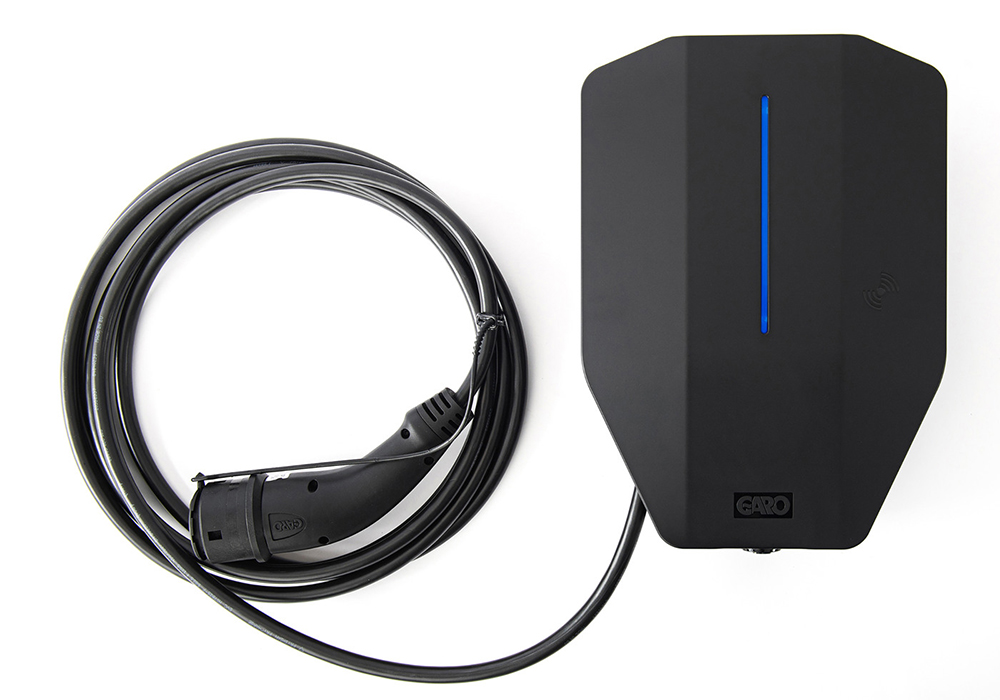

Charging station GARO Entity PRO 22 kW with fixed cable 5m
Common Characteristics
Charging station Entity Pro 22kW with fixed cable, phasebalancing and modem with SIM Garo Connect.Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Entity PRO comes with an outlet. Built-in Energymeter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Complete wallbox.
Technical Data
| Parameter | Value |
|---|
| Lead AC Output Current | 0 - 32
A |
| Power outlet | 22
kW |
| Rated voltage | 230 / 400
V AC |
| Frequency | 50
Hz |
| Temperature range | -40 до +40
C |
| Degree of protection | 54
IP |
| Weight | 5.5
kg |
| Location | Стена или стойка
|
| DC Monitoring | Стандартно
|
| Load management | Стандартно
|
| Local Meter | Стандартно с вграден електронен
|
| Communication | 4G, LAN, Mesh WiFi
|
| RFID | Стандартно
|
| Protocol | OCPP1.5 / 1.6
|
| Certifcation | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118
|
| Dimensions | 34 х 24 х 15
H x W x D cm |
