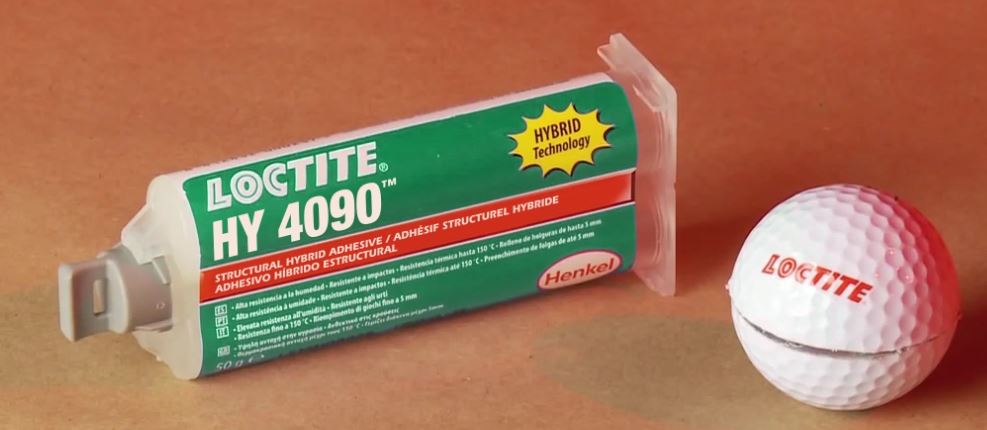

Off-white to light yellow 2-part hybrid adhesive with a high viscosity/non-drip for use in structural bonding.
Common Characteristics
LOCTITE® HY 4090 has a high viscosity and is a off-white to light yellow gel. It opens completely new application areas in structural bonding – for the very first time combining instant adhesive properties with those for epoxies to give more striking benefits. Fixture time of 90 - 180 secs and suitable for gaps up to 5 mm. Resistant to vibration, shock loads and impacts. Best application results are achieved with LOCTITE® 50 ml Adhesive Mixing Nozzle (IDH 1826921), LOCTITE® 400 ml Adhesive Mixing Nozzle (IDH 1573135), LOCTITE® 96001 (IDH 267452) or LOCTITE® 983439 (IDH 218311).
High moisture resistance.
Vibration, shock loads and impact resistance.
Temperature resistance up to 150 °C.
Gap filling up to 5mm.
UV resistant allowing outdoor applications.
http://www.henkeldocs.com/books/bcot/
Technical Data
| Parameter | Value |
|---|
| Chemical basis | Cyanoacrylate
-epoxy hybrid
|
| Fixturing time | 180
sec |
| Service temperature range | -40 +150
°C |
| Flexible | -
|
| Impact resistance | ++
|
