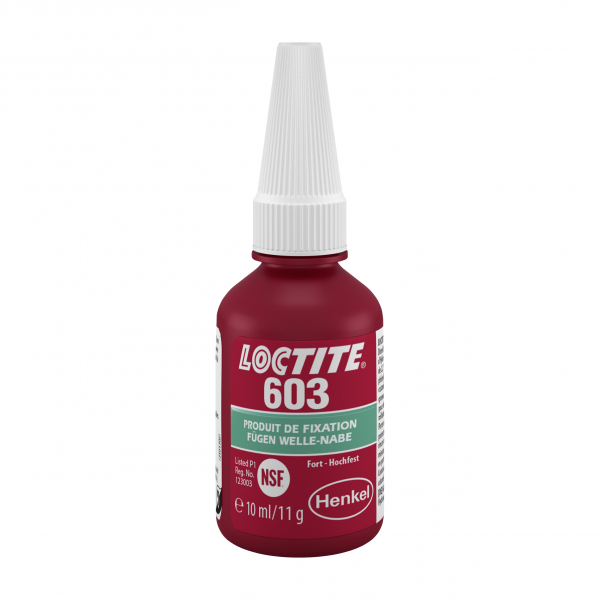

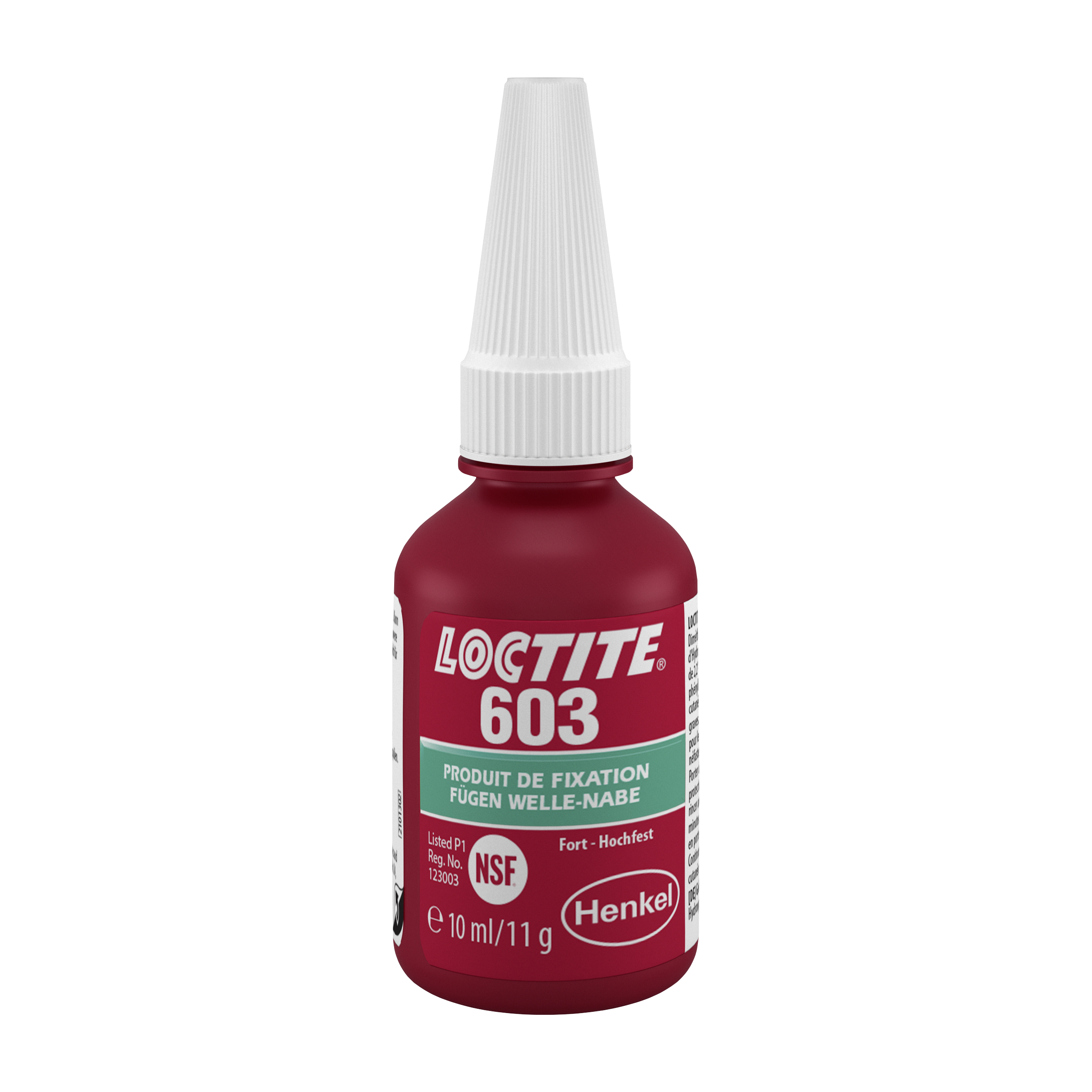

LOCTITE 603 is a high-strength retaining compound. Designed for the bonding of cylindrical fitting parts, especially for sintered bearings and also where consistently clean surfaces cannot be assured.
Common Characteristics
LOCTITE 603 Retaining Compound - high strength. Ideal for bearings. For use on close-fitting cylindrical parts. High oil tolerance.

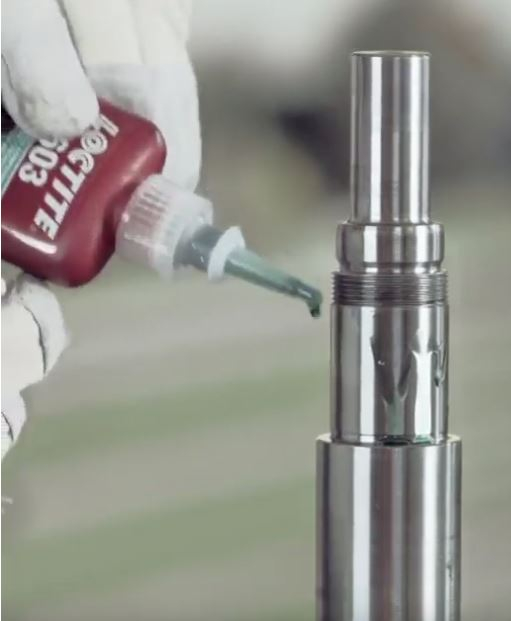

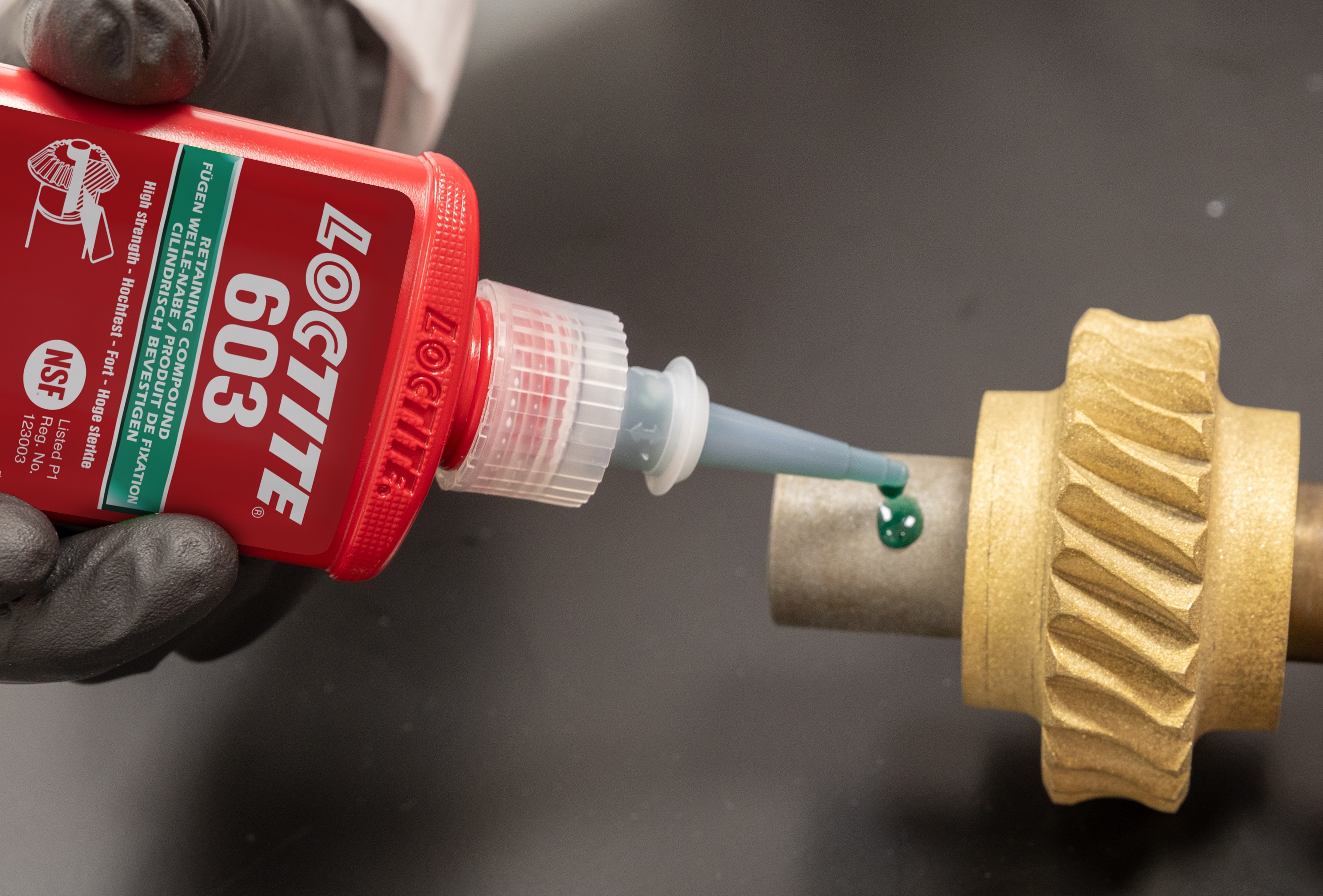

LOCTITE® 603 is a high-strength retaining compound. Designed for the bonding of cylindrical fitting parts, especially for sintered bearings and also where consistently clean surfaces cannot be assured. The product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage due to shock and vibration. It has a high oil tolerance.
Your Benefits
High-strength retaining compound
Especially suitable for sintered bearings
High oil tolerance
Technical Data
| Parameter | Value |
|---|
| Chemical basis | Methacrylate
|
| Fluorescence | +
|
| Тensile shear strength | >22.5
N/mm2 |
| Тhixotropy | -
|
| Viscosity | 100-150
mPa·s |
| Fixture time on steel | 8
min |
| Maximum diametrical clearance | 0.1
mm |
