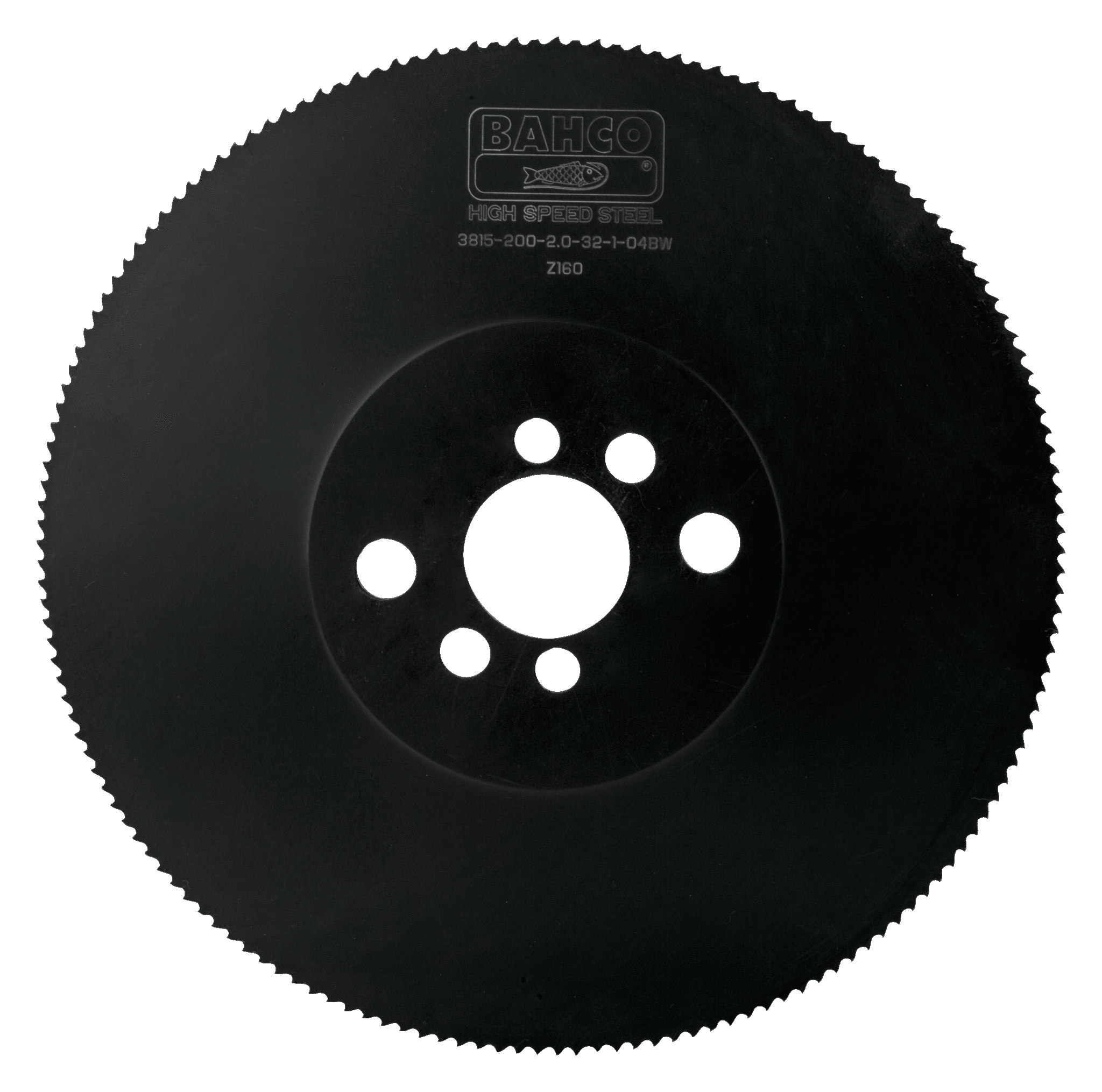

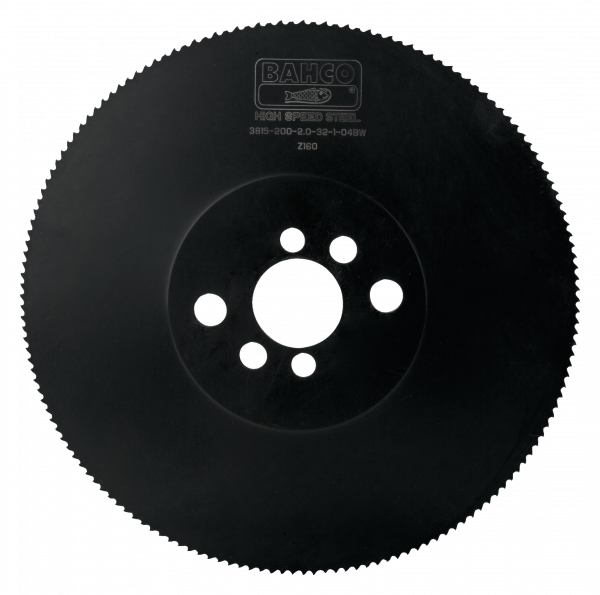

HSS Circular Saw Blade 225 mm BAHCO 3815-225-2.0-32-1-05BW

Common Characteristics
High-speed steel (HSS) circular saw blades for cutting steel, iron, metal and light metal applications
Tooth Shape BW is mainly for cutting tubes and profiles, the tooth is alternately bevelled at 45° and breaks the chip in two which guarantees good chip clearance
Tooth shape C is used for solid sections and thick pipes, every second tooth has two chamfers on each side while the others are without chamfer
Example: -03BW = Tooth pitch 3mm with BW tooth shape
Technical Data
ParameterValue
Diameter A225  mm
Diameter centre hole B32  mm
Number of teeth C150
Thickness D2  mm
Thooth shapeBW5
