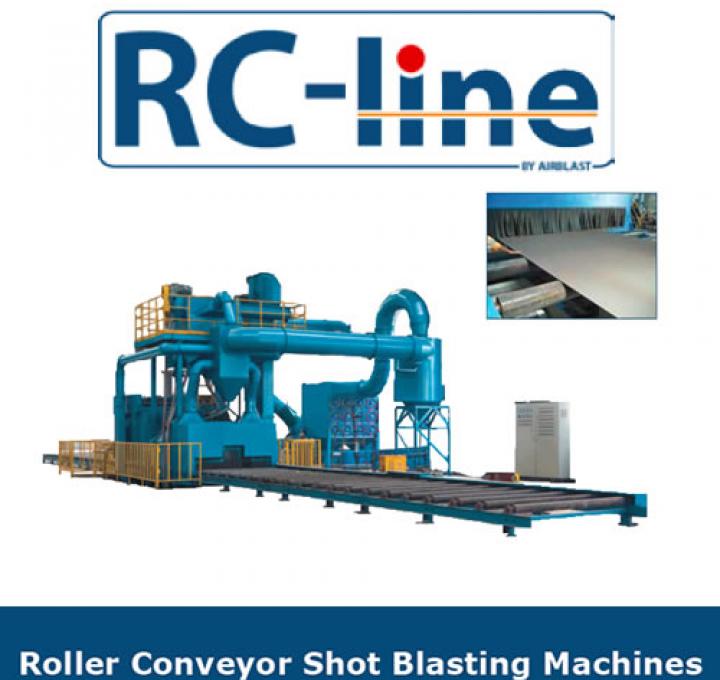

RC-Line Shot Blasting Machines AIRBLAST - 3 different versions.
Common Characteristics
- The S (Standard) & H (Heavy Duty) are shot blasting machines designed to process plates, sections, angles, pipes and others.
- The C (Construction) machine is specially designed for post fab structural components to be used in industries such as shipyard, automobile, motorcycle, bridge, machine and others to be used in industries such as steel structure, machine builders, shipyards and subcontracters.
| Type |
S/H/C 15.410 |
S/H/C 25.610 |
S/H/C 33.801 |
S/H/C 45.1010 |
| Effective cleaning width (mm) |
1500 |
2500 |
3300 |
4500 |
| Room feed-in size (mm) |
1550 x 600 |
2600 x 600 |
3400 x 600 |
4600 x 600 |
| Length of workpiece (mm) |
1200 - 12000 |
3000 - 12000 |
2400 - 12000 |
4500 - 18000 |
| Speed of wheel conveyer (stepless speed variation) (mtr/min) |
0.5 - 4 |
0.5 - 4 |
0.5 - 4 |
0.5 - 4 |
| Thickness of steel sheet (mm) |
1.5 - 60 |
3 - 60 |
3 - 110 |
4.5 - 100 |
| Beam size reference (mm) |
1000 x 300 |
1300 x 300 |
2 x 800 x 300 |
2 x 1000 x 300 |
|
Quantity of shot blasting (kg/min) |
4 x 250 |
6 x 250 |
6 (8) x 360 |
8 x 360 |
| First enclosed quantity (kg) |
4000 |
4500 |
8000 |
11000 |
| Roll brush adjusting height (mm) |
600 |
600 |
600 |
600 |
| Filter capacity (m³/hr) |
8000 |
12000 |
16000 |
24000 |
| Exterior size (mm) |
15200 x 5370 x 6797 |
31200 x 8070 x 7500 |
44042 x 6385 x 7500 |
45000 x 7830 x 11117 |
| Power (except for dust cleaning) (kW) |
113,5 |
204,8 |
224,55 |
293,6 |
