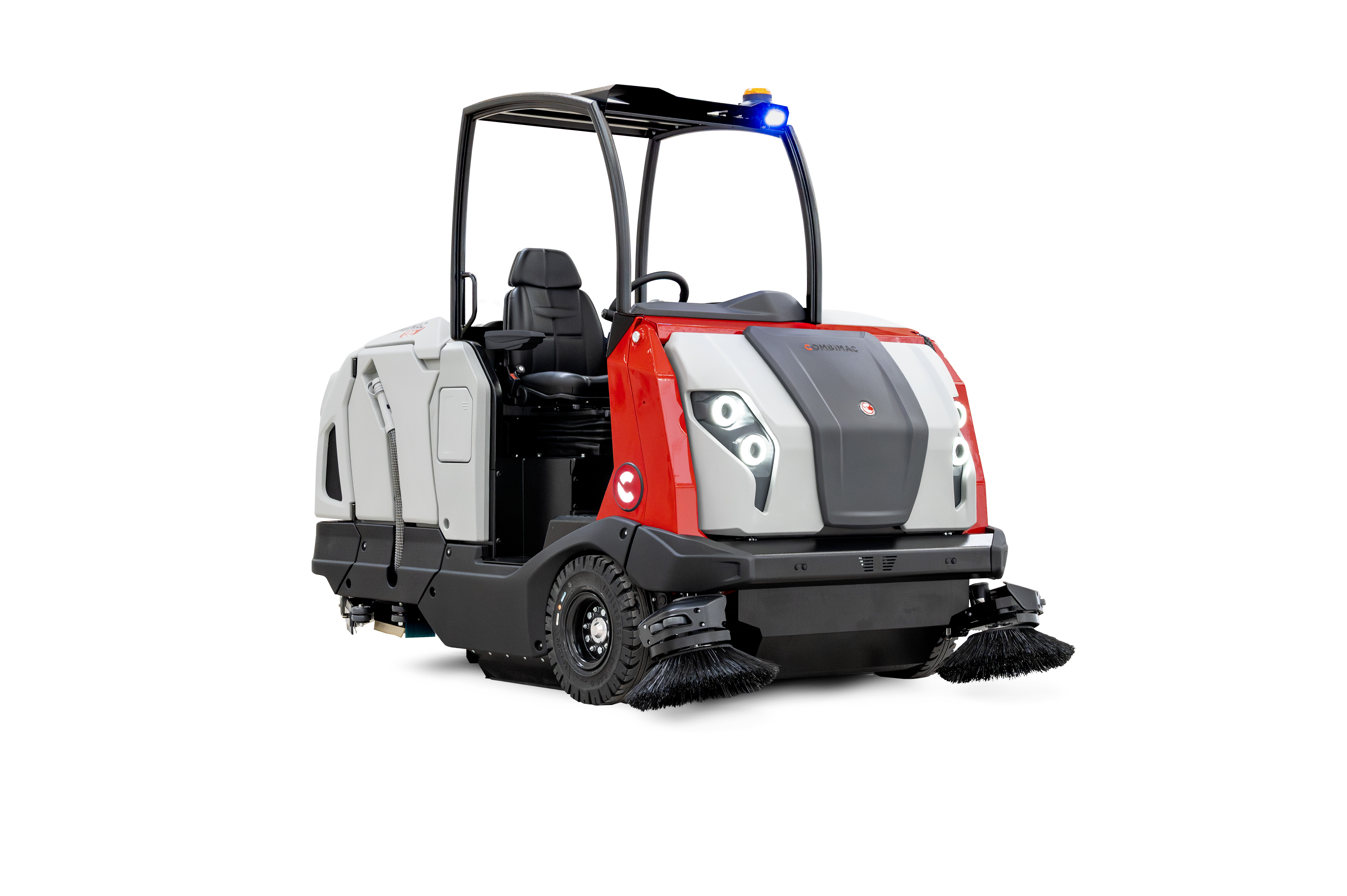

Combimac is the industrial combination sweeper-scrubber that sweeps, scrubs, and dries floors in a single pass. This high-performance industrial floor cleaning machine integrates a sweeper and a floor scrubber into one system, making it the perfect solution for fast, efficient, and thorough cleaning of large surfaces. Designed to clean areas from 20,000 to 60,000 sqm, Combimac helps reduce cleaning time and maximize productivity while consistently delivering outstanding results.
Combimac’s sweeping unit features two side brushes and two counter-rotating cylindrical brushes, allowing the machine to remove all types of debris: from fine dust to bulky or heavy waste such as cans, leaves, wood fragments, stones, and even fruit. The scrubbing base is equipped with four disc brushes and a powerful vacuum system that ensures effective detergent distribution and suction, leaving floors perfectly clean and dry after each pass.

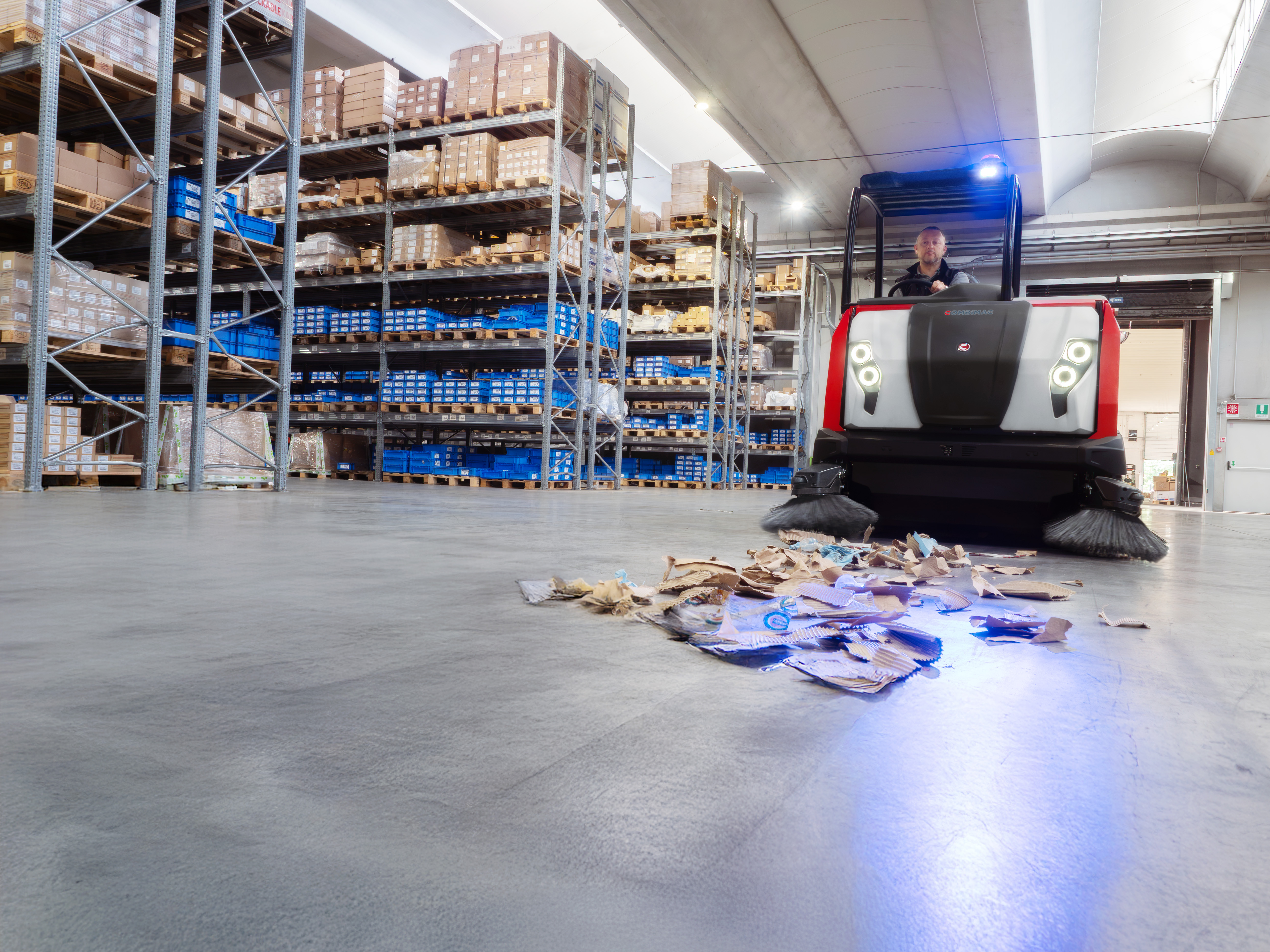

This combination machine is ideal for industrial cleaning in environments such as factories, warehouses, logistics hubs, transportation facilities, and produce markets. It’s also suitable for lighter dirt typically found in supermarkets, exhibition halls, parking areas, and large public venues.
Engineered for heavy-duty applications, Combimac is the combined sweeper-scrubber that ensures high productivity and excellent results with minimal effort, making large-scale cleaning operations faster and more cost-effective.
Common Characteristics
• Equipped with a separate double-action system consisting of a sweeper system and a floor scrubber base

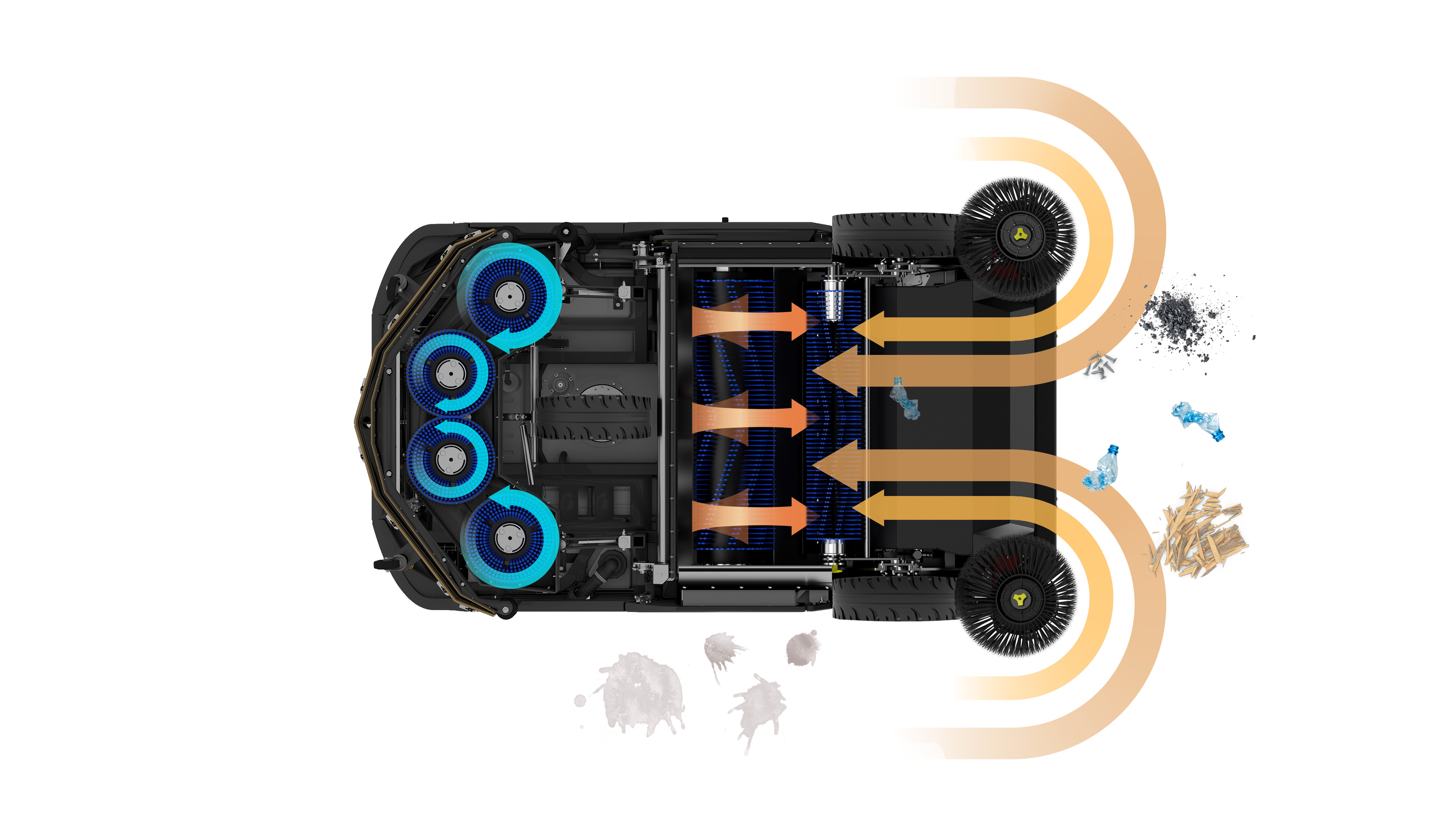

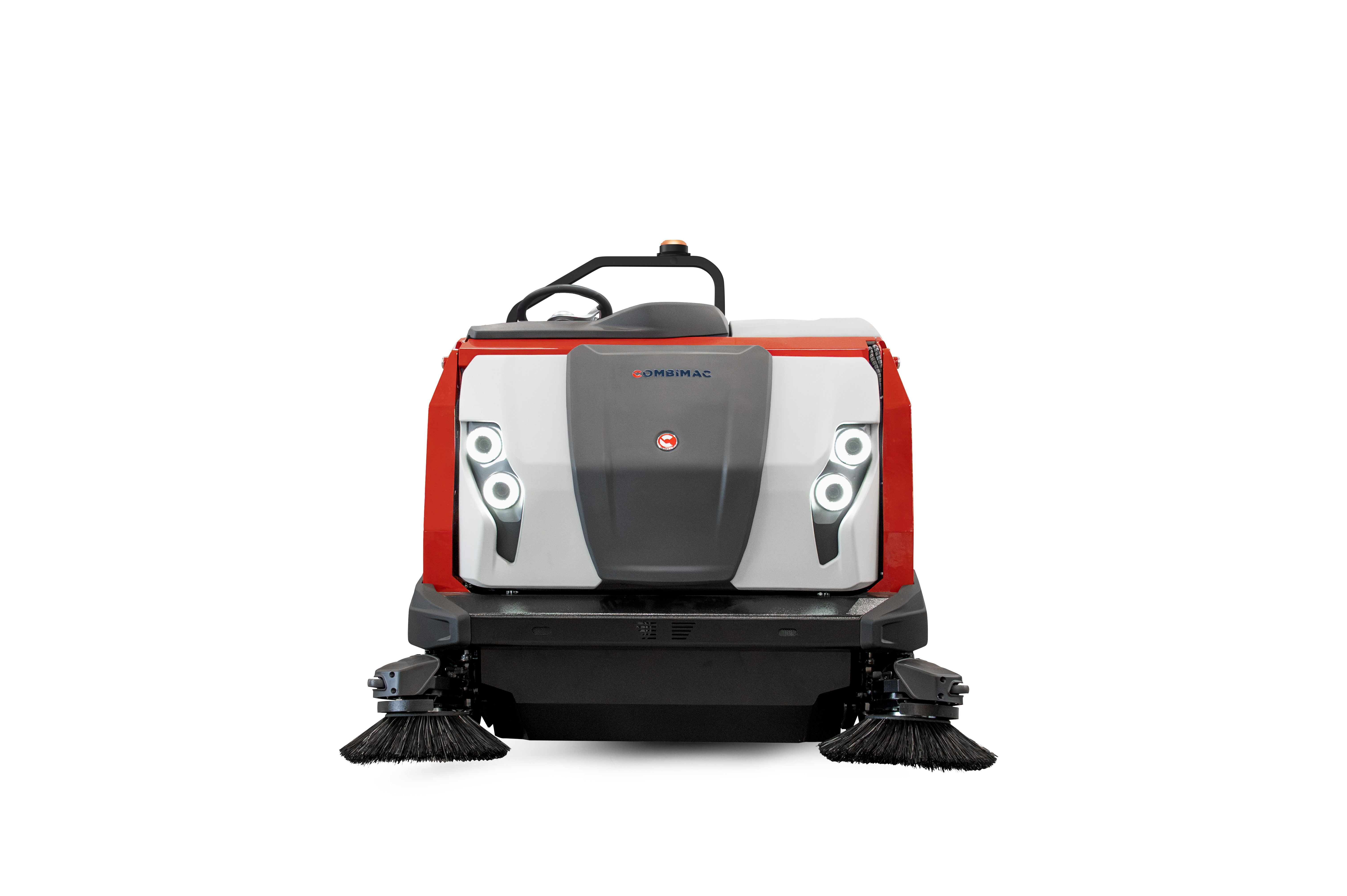

• Sweeping system made up of two side brushes that convey dirt and debris to the center of the machine, where they are collected by two cylindrical brushes

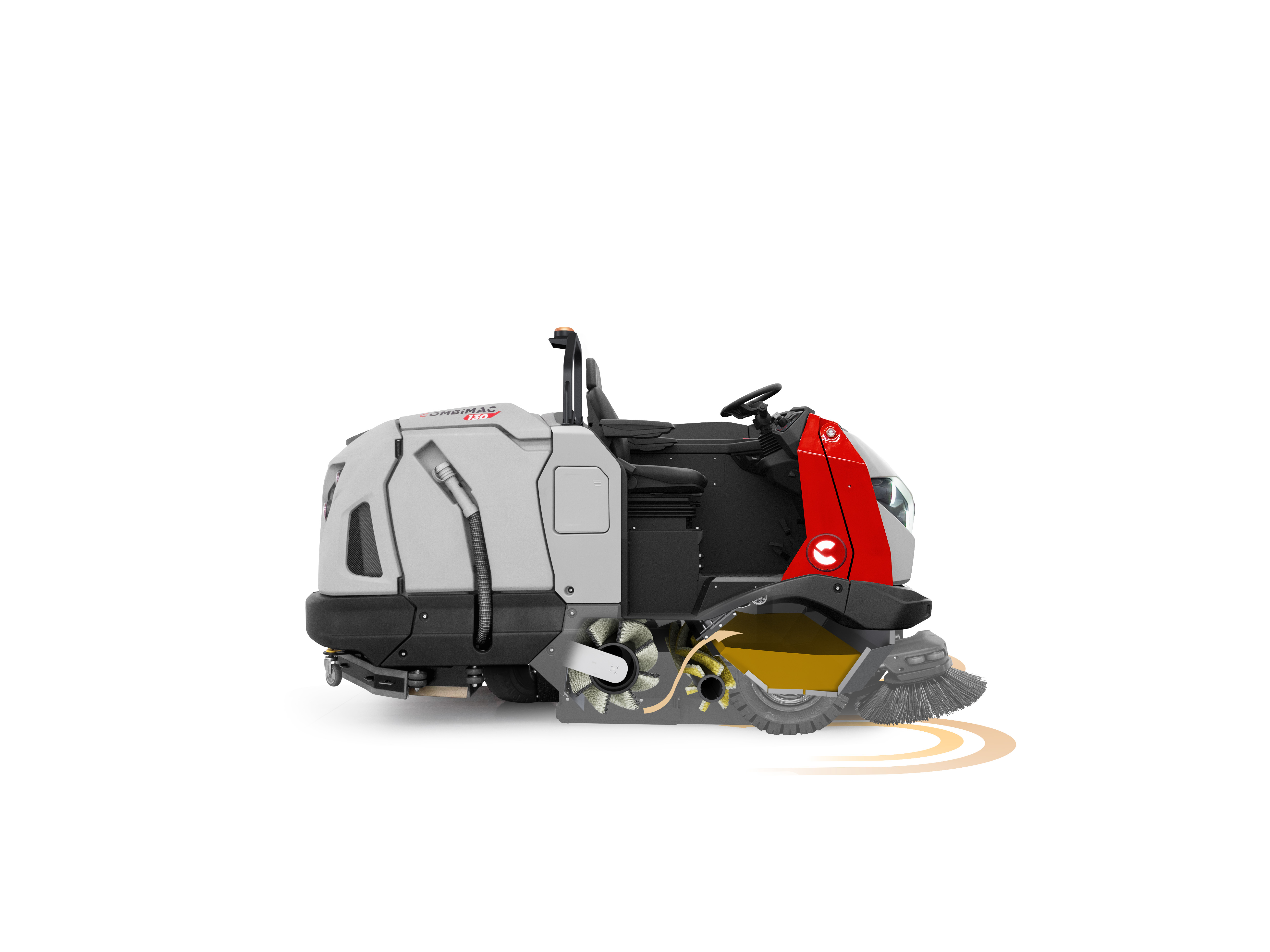

• The configuration of the sweeping system with two counter-rotating cylindrical brushes eliminates the need for a front flap-lifting mechanism, allowing Combimac to easily and automatically collect all types of debris

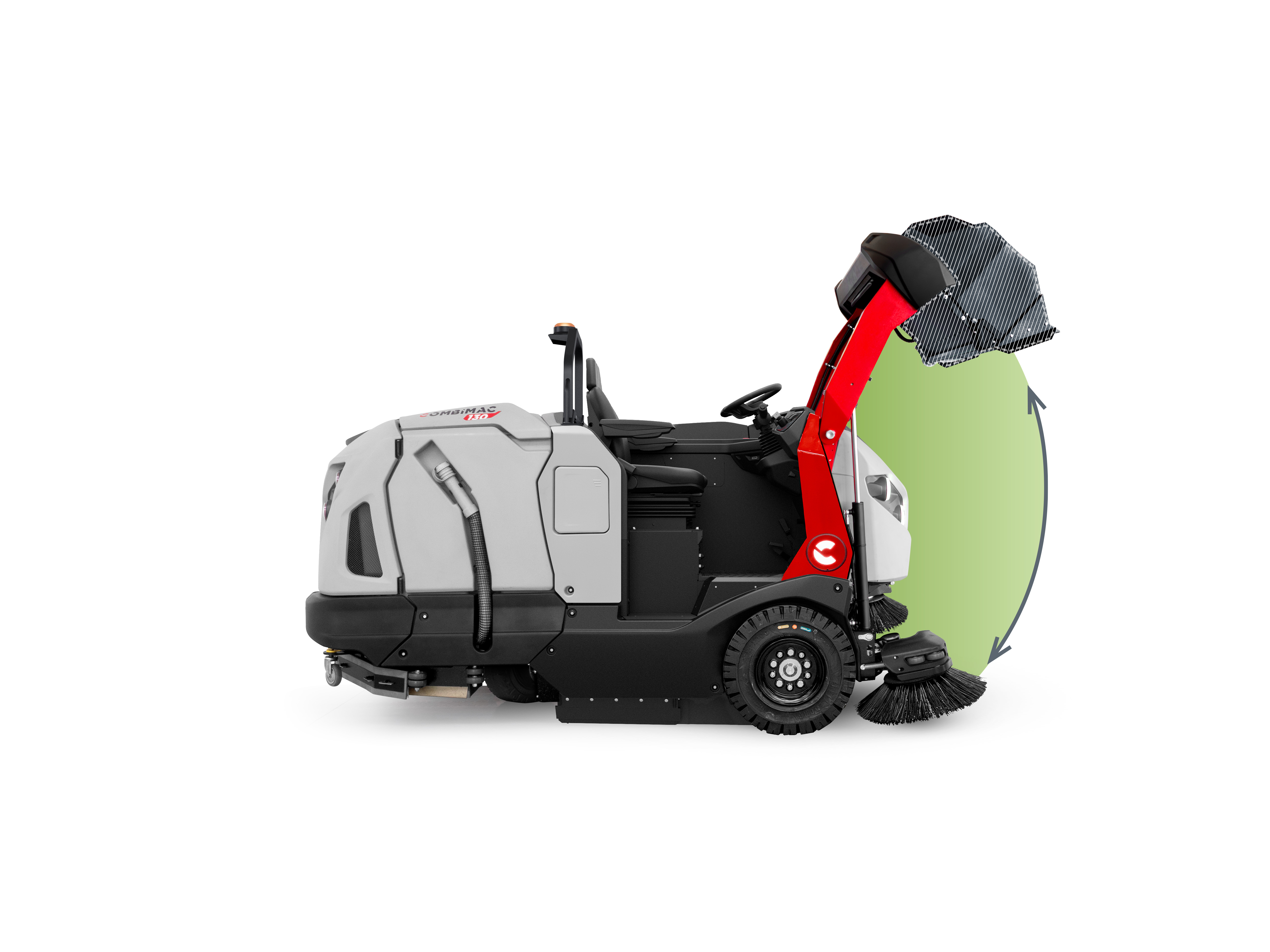

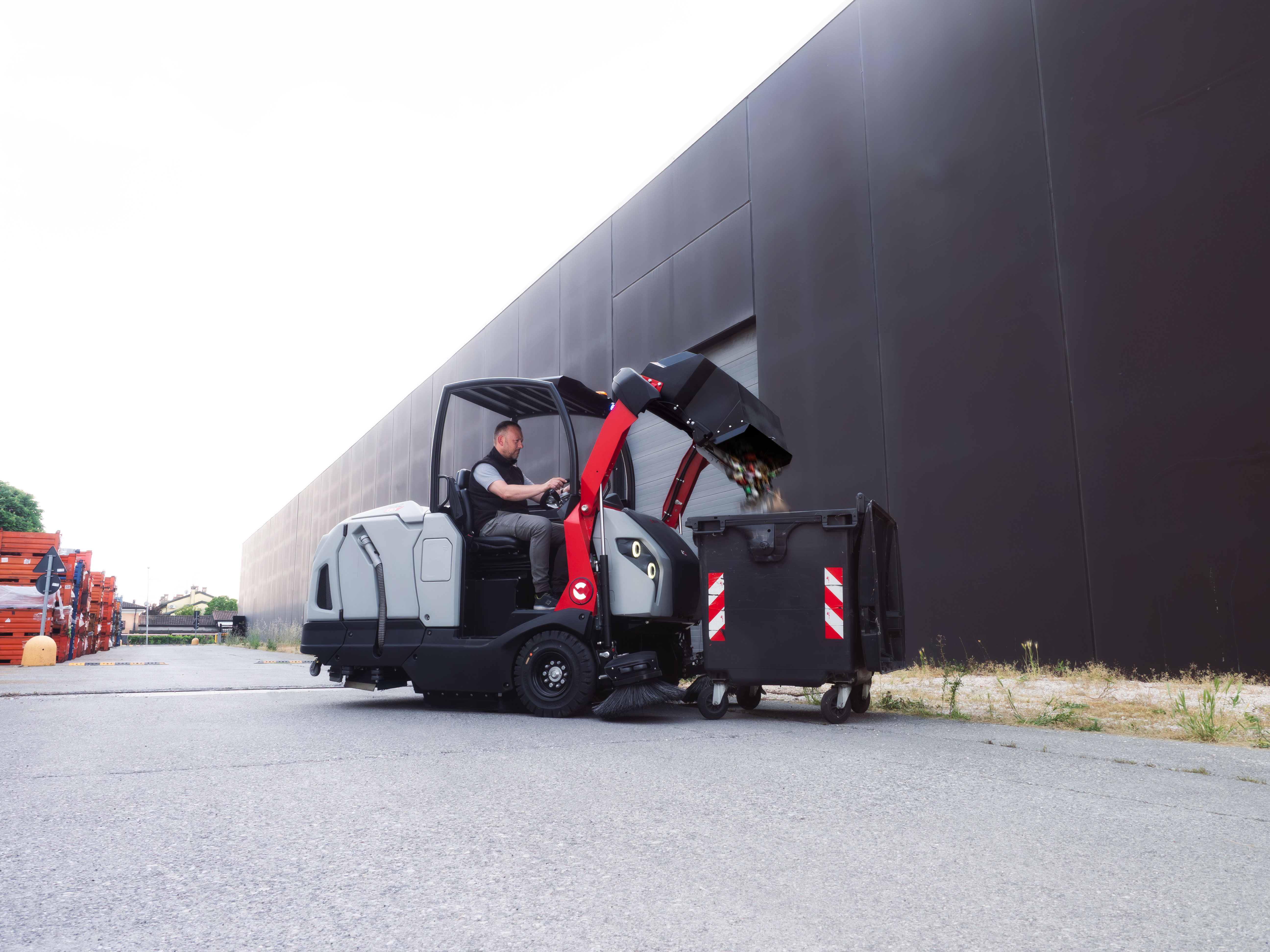

• Large debris hopper, which can be lifted by hydraulic pistons for easy emptying
• Equipped with a standard pocket filter; also available with cartridge filter for more specific filtration needs

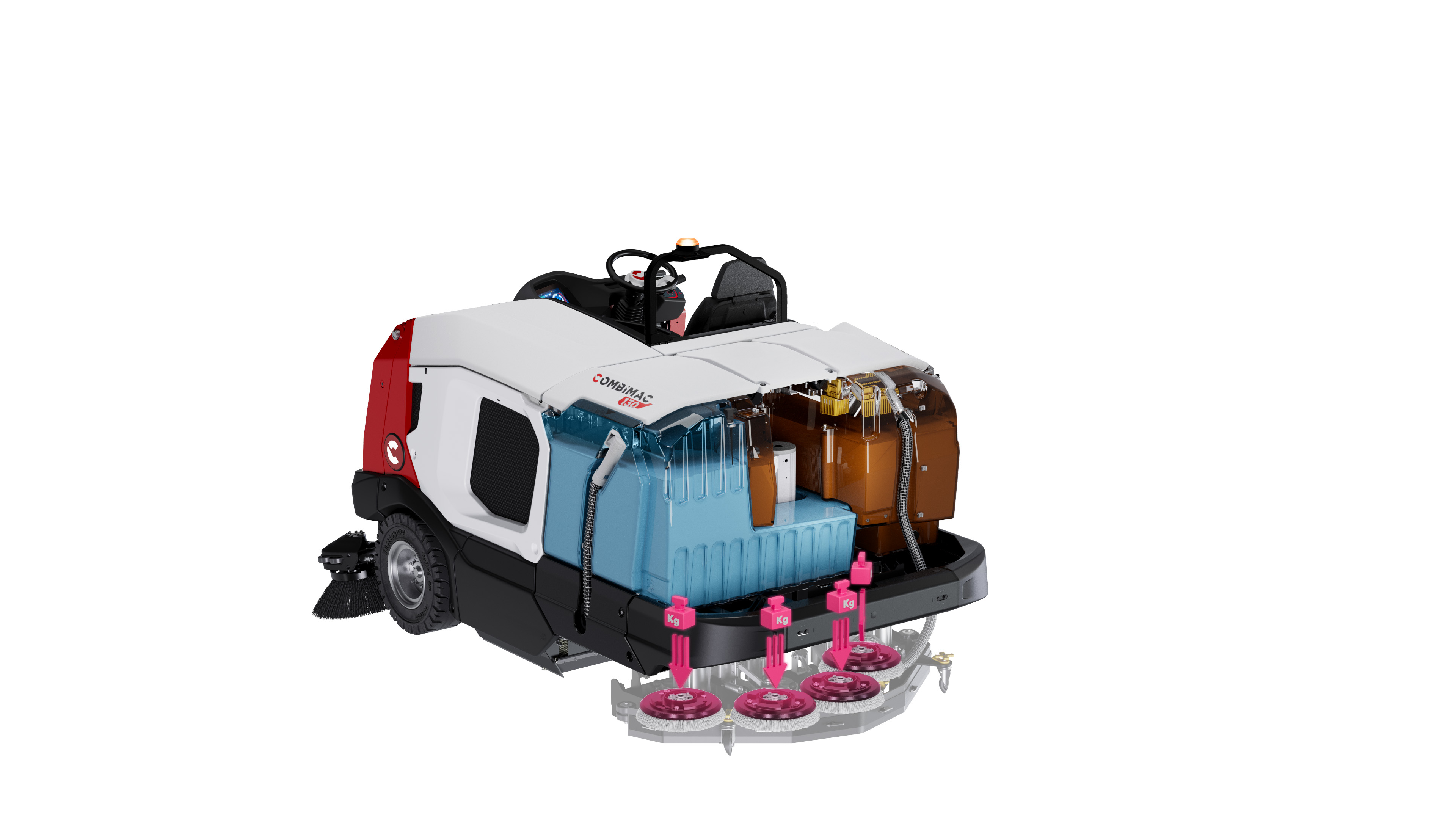

• Scrubbing system consisting of four disc brushes
• Dual vacuum motor as standard to ensure perfect drying in a single passage
• Powerful wheel motor and rear-wheel drive enable Combimac to easily handle ramps, overcoming inclines of up to 20%
• AC wheel motor with antiskid and non-marking wheel to ensure maximum adherence on any type of floor, even when wet
• The wheel motor is positioned between the sweeping and scrubbing systems, allowing Combimac to always work on a swept and dry floor
• Continuous sensor positioned on the steering wheel axle that recognizes the exact position of the wheel motor, automatically reducing the speed in accordance with requirements
• Power steering as standard
• Hydraulic brake on the rear wheels
• Electric brake installed on the wheel motor acts as a parking brake
• Full electric power
• Up to 6 hours of autonomy
• Maximum freedom of use, even in closed or sensitive environments such as warehouses and production areas
• The option to install a lithium-ion battery drastically reduces charging times and enhances Combimac's performance
• User-friendly driving and simple controls

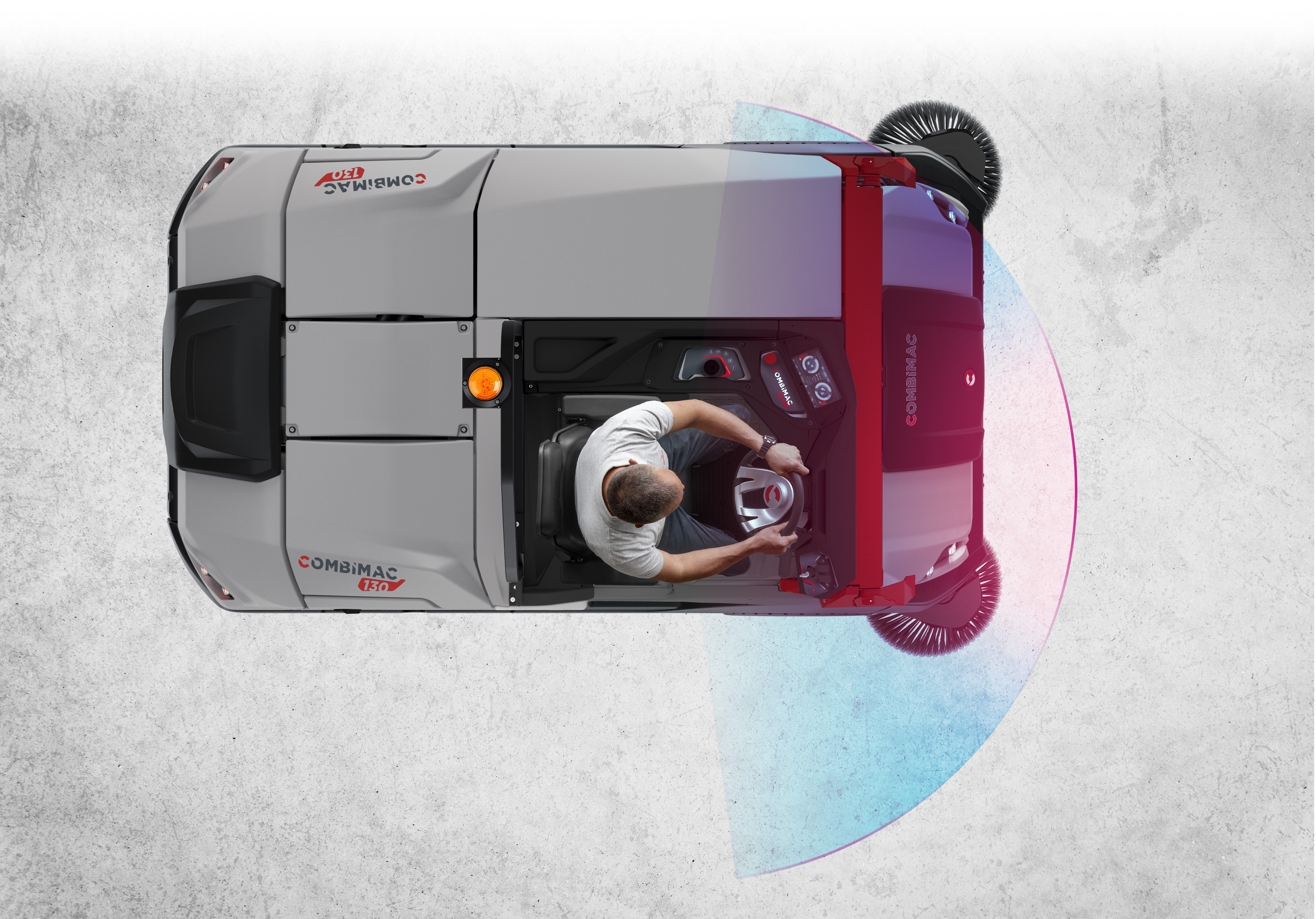

• Raised and offset driving position, with a shorter front end
• The steering wheel, new generation drive pedal and super comfortable seat with armrests and headrest, ensure maximum comfort for the operator
• Colour touch screen display to make it even easier and more intuitive for the operator
• Working program selector to manually select the type of task
• Standard rear view camera
• The rear anti-collision sensor is supplied as standard
• Front and rear LED headlights as standard
• Courtesy lights pack

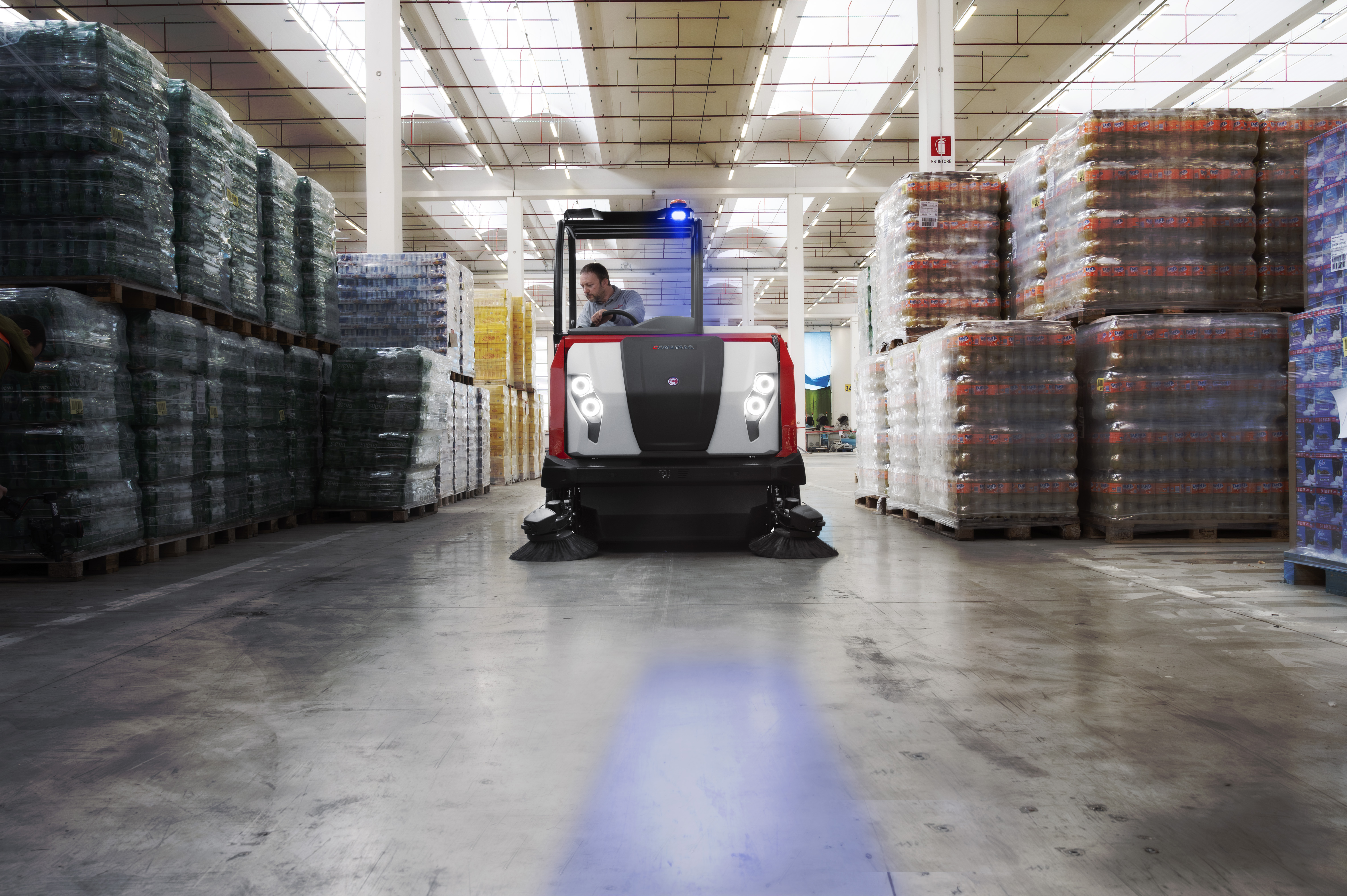

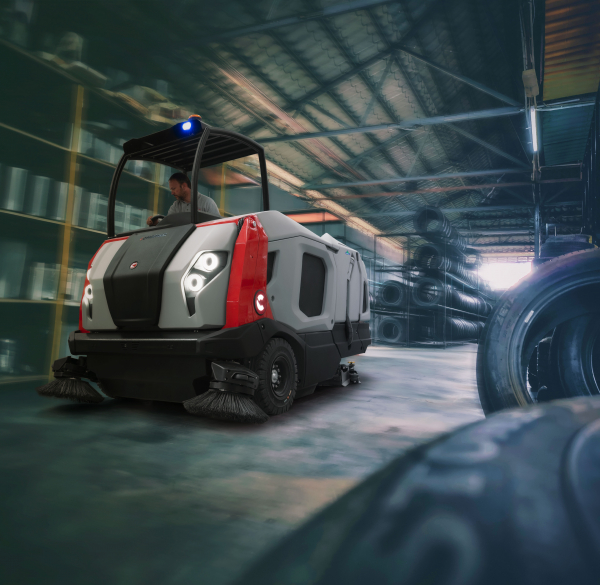

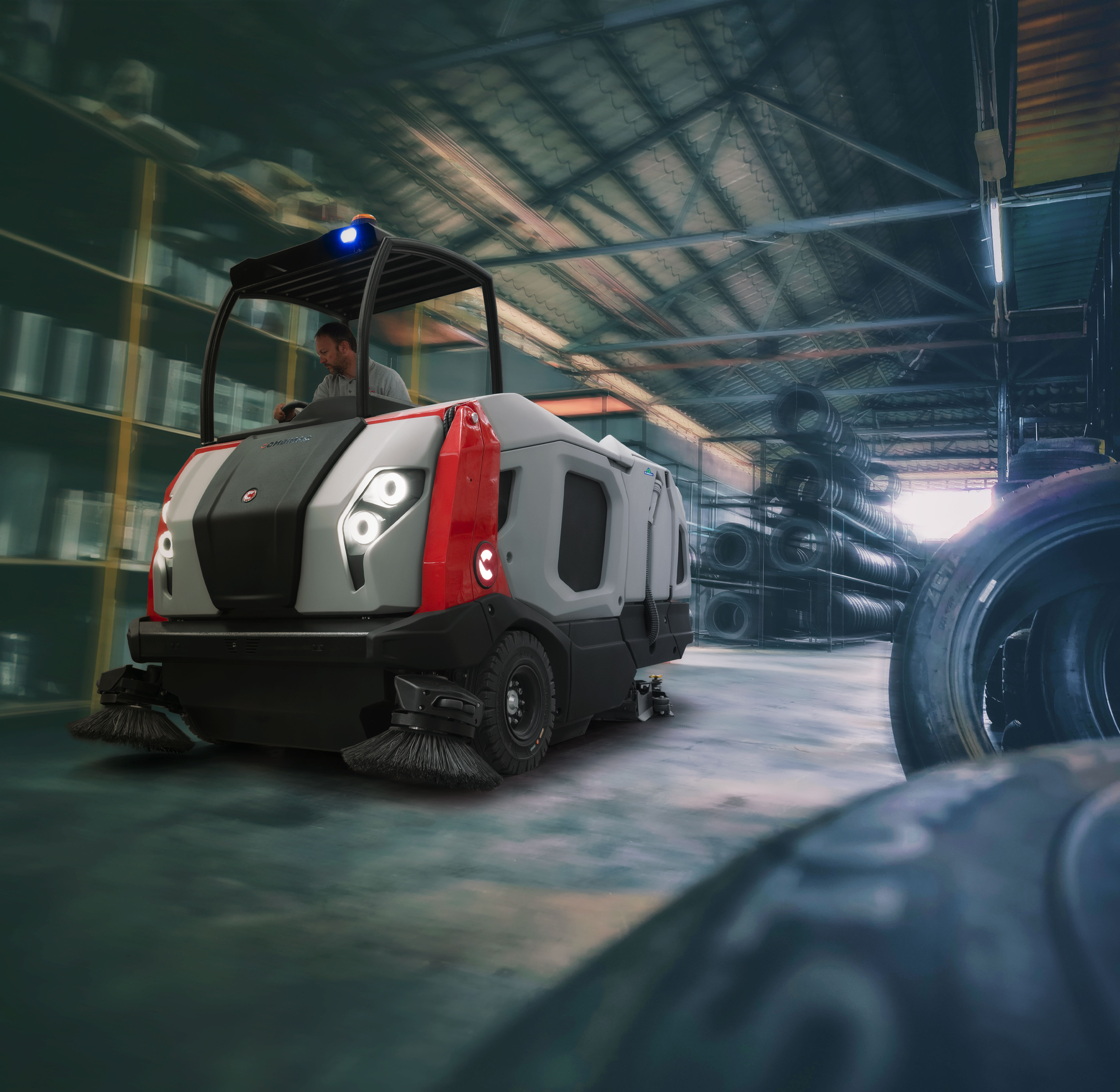

• Blue Safety Spotlight that projects a light beam on the ground to indicate the presence of the combined sweeper-scrubber in advance
• Steel frame coated with cataphoretic paint which provides it with remarkable resistance to corrosion
• Brush head made of steel
• Parts requiring daily maintenance distinguished by yellow colour
• Safety button
• ECO Mode: to reduce noise level and energy consumption and increase the combination machine autonomy
• CDS - Comac Dosing System: the system allowing the water and the detergent to be measured out separately
• Solution level sensor upon request
• CSF - Constant Solution Flow: the distribution system that ensures correct delivery of solution on both disc brushes
• PM - Pressure Monitoring: system for monitoring the pressure on the brushes
• FFS - Fast Filling System: system for filling the clean water tank, even letting the operator perform other activities while the tank quickly fills up. When the tank is full, the water flow stops automatically
• Stop&Go: when the machine is temporarily idle, the solution flow is interrupted and the brushes are halted so as to optimise consumption and reduce waste
• CFC - Comac Fleet Care: allows remote control of machine status
• ST - Spray Tool: for effective cleaning even in those areas the combined scrubbing machine is unable to reach and for cleaning the tanks
• ST - Suction Tool: for effective cleaning even in those areas the combined scrubbing machine is unable to reach
• ReWater – filtering system for re-using the scrubbing solution
Technical Data
| Parameter | Value |
|---|
| Central brush working width | 1180
mm |
| Working width with two side brushes | 1980
mm |
| Side disc brushes diameter | 550
mm |
| Solution tank | 300
l |
| Recovery tank | 300
l |
| Detergent tank capacity (CDS versions) | 10
l |
| Debris hopper volume | 300
l |
| Drainage height | 1650
mm |
| Working width (scrubbing brush head) | 1300
mm |
| Working width (sweeping brush head) | 1980
mm |
| Theoretical productivity | 15850
km2/h |
| Side brush | 550
mm |
| Front cylindrical brush diameter | 220x1080
mm |
| Rear cylindrical brush diameter | 410x1180
mm |
| Brushes, quantity and type | 4, disc
|
| Disc brush diameter | 355
mm |
| Pressure on the brush (min - max) | 150
kg |
| Filtering surface | 10
m2 |
| Squeegee width | 1510
mm |
| Machine dimensions (l x h x w) | 3000x1760x2250
mm |
| GVW (Gross Vehicle Weight) | 2745
kg |
