• With automatic filter cleaning for normal dust generation, 20 l container
• Suitable for assembly work on the construction site (concrete, stone, cement) and working with power tools in the workshop (wood, paint, varnish)
• Medium dust emission
For universal use in industry, in the workshop and on the construction site. Suitable for drilling, grinding, milling and sawing operations with wood, concrete, stone, cement, with normal dust generation. Antistatic prepared.
For use with or without filter bag. With integrated socket for work with power tools. Large foot switch for on/off and automatic switch-on for the power tool. Additionally equipped with a blow-out function and an extremely robust filter cartridge. The wobble-free accessory depot, hose rewind and plug fixation as well as the lateral parking position for the suction accessories allow easy carrying on the construction site and tidy stowage during transport.
Common Characteristics

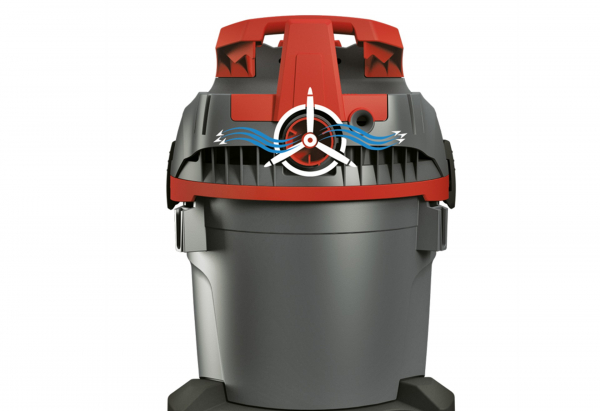

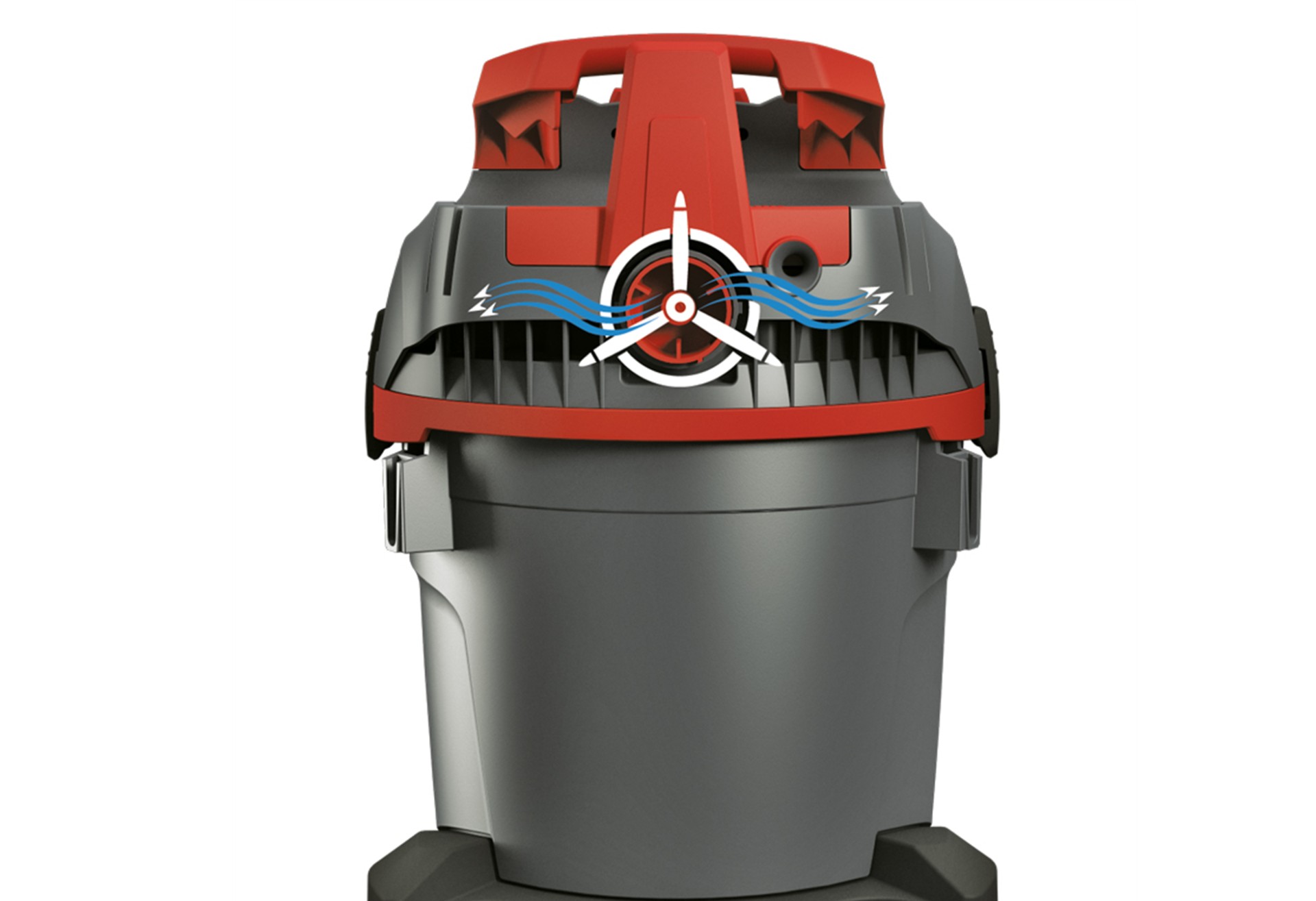

• Single-stage high-speed motor with high-speed turbine. Optimum efficiency with significantly higher volume flow and vacuum than comparable motors with the same wattage. And significantly lighter and more compact at the same time. With proven starmix bypass cooling for wet and dry vacuuming. The service life of the carbon brushes is over 800 hours!
• Compact, rectangular design: takes up little space, easy to carry, optimal for storage
• Low center of gravity: High anti-tilt and best maneuverability
• Robust wheels and castors: Easy and safe driving - even over "hill and dale"
• Bayonet connection: Draw-proof connection between hose and container
• High filling volume: Filters mounted parallel to the motor axle require no additional space in the container
• Easy and clean access to the filter cassettes. No contact with dirt or dust when changing filters.

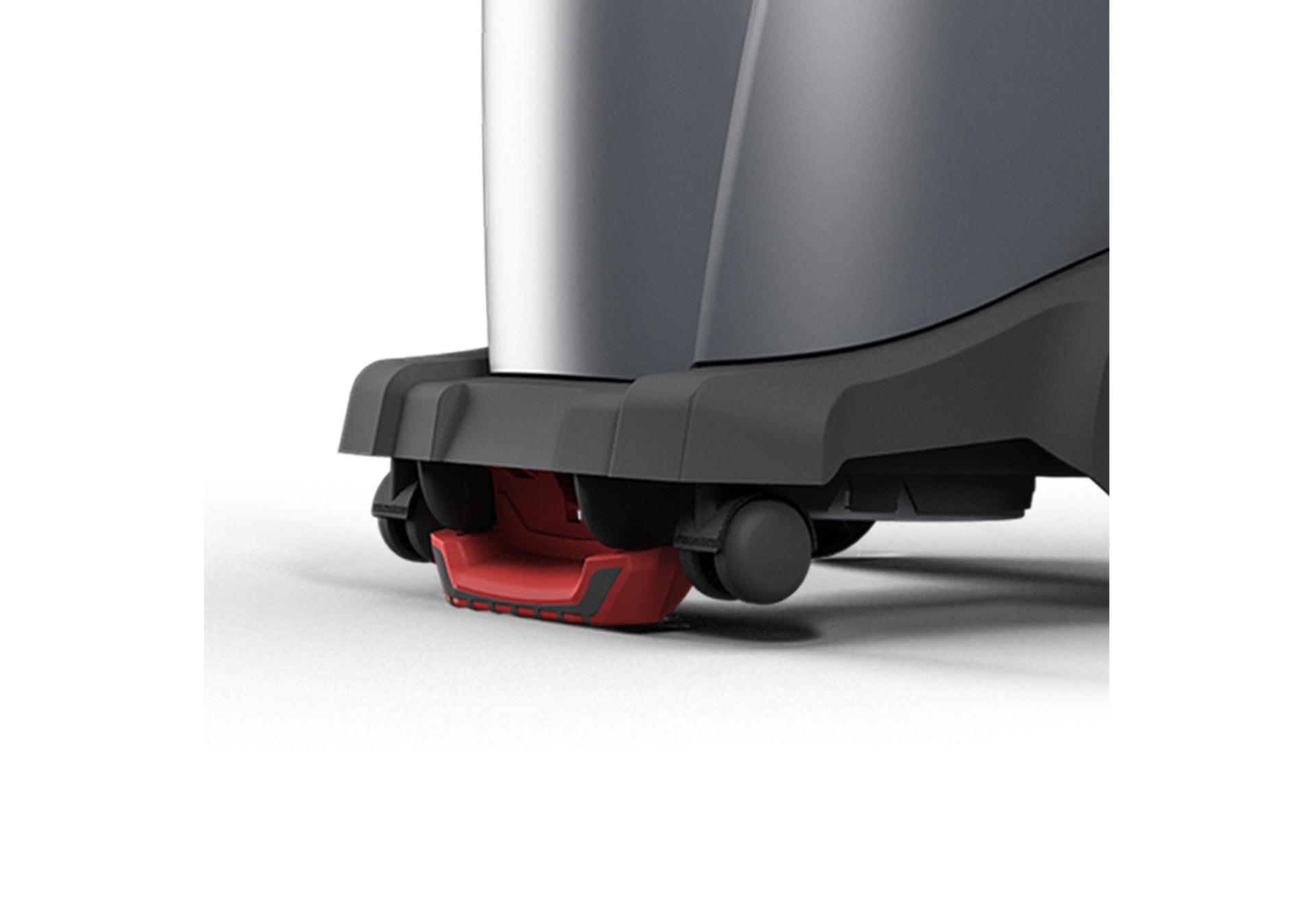

• With this new parking brake, the NSG can be quickly and stably fixed in the parking position - without hands, only with the foot. As a driving protection, it protects the chassis from damage and makes it easier to overcome obstacles. Furthermore, the foot brake can be used as an ergonomically shaped handle for easy and clean emptying of the container.
• Automatic pulse filter cleaning and integrated socket for connecting power tools. For optimum work results thanks to clean filters. Time saving due to high user-friendliness.

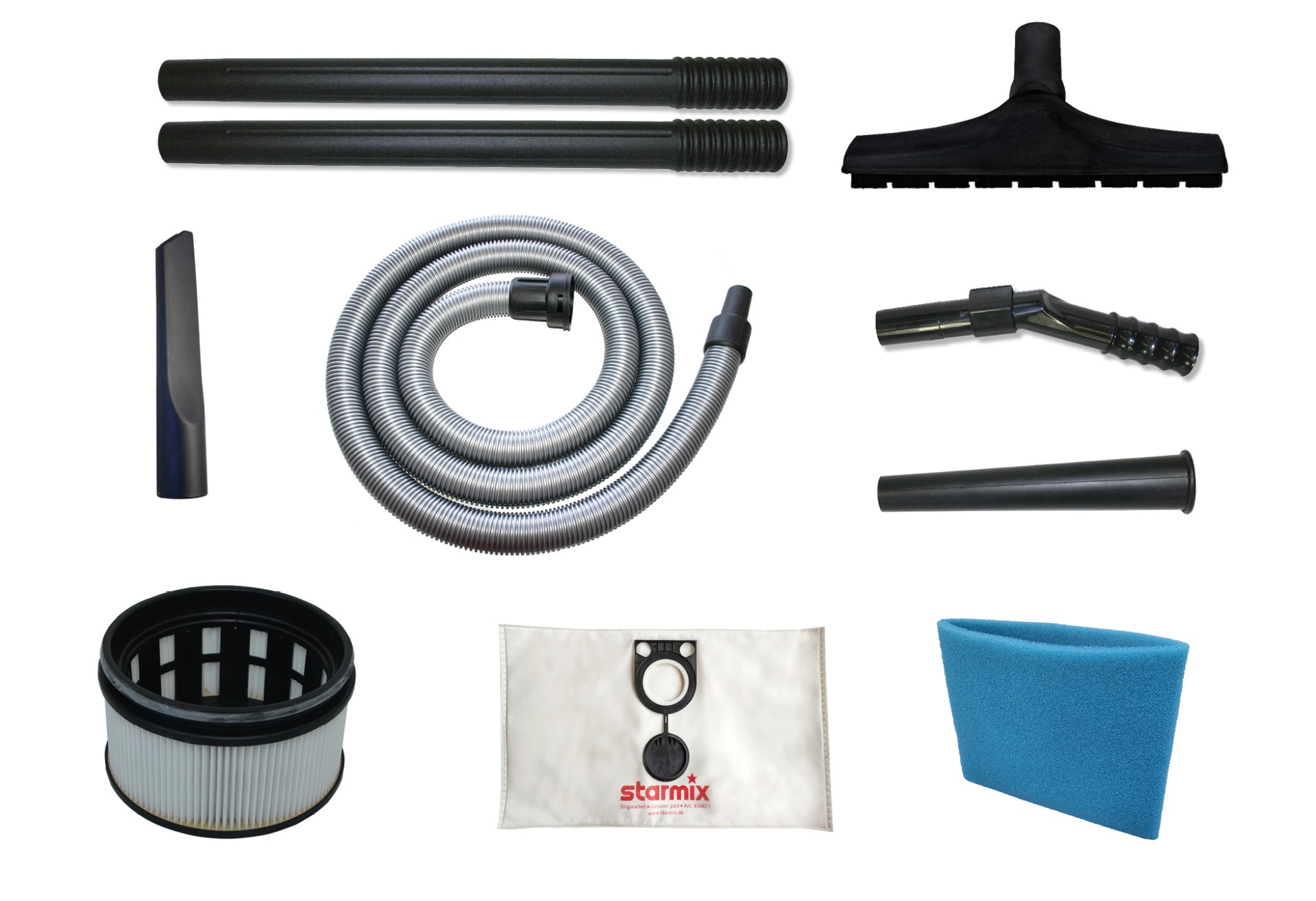

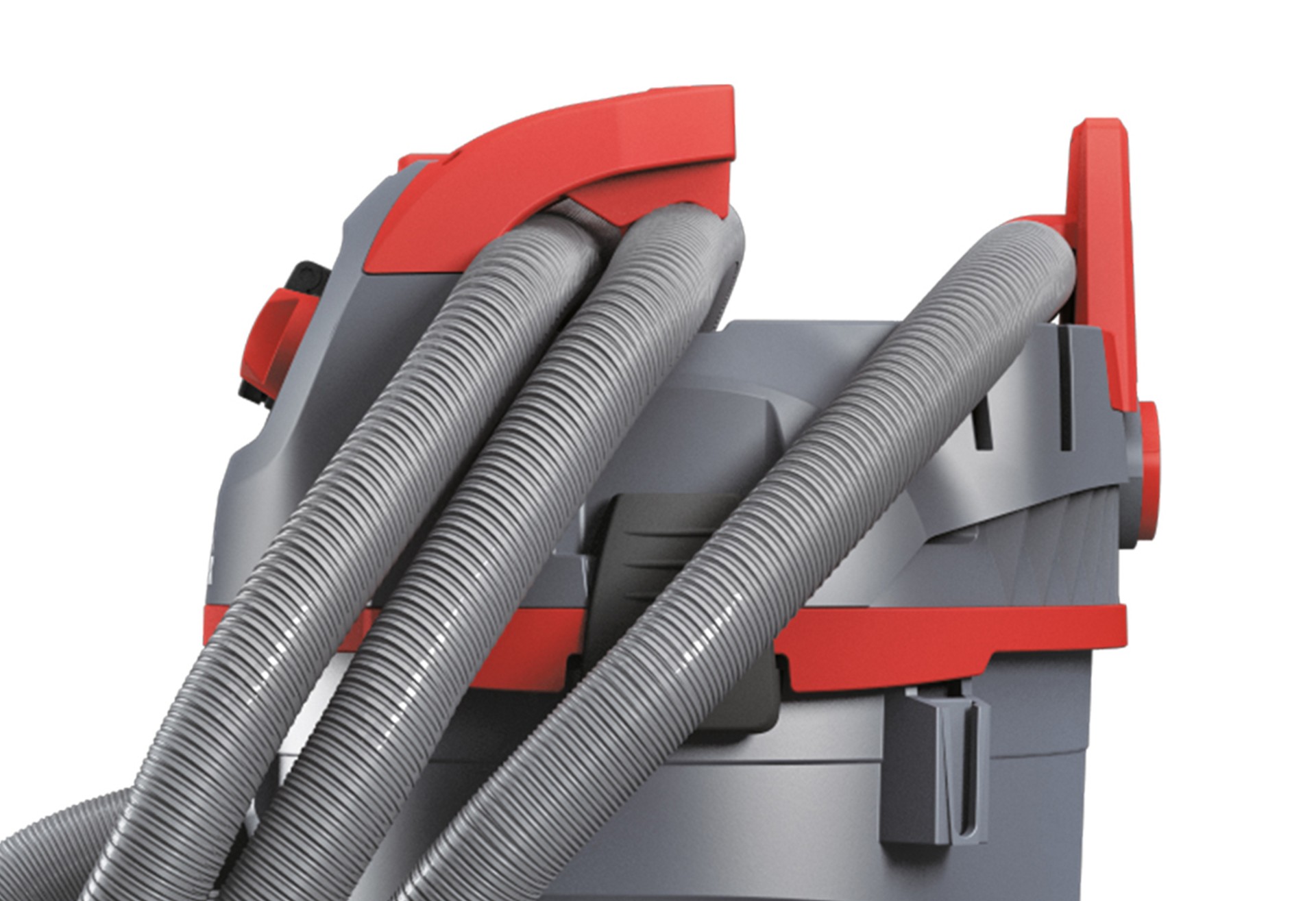

• Simply clever: All included accessories can be stored safely on the device.
• The I/O switch is easily accessible on the top of the container. In addition, it is used to select the automatic switch-on function (the vacuum starts automatically when the connected power tool is switched on) and the vibration function.
• Quick and easy: Just by loosening two screws, the red power cord can be changed.
• The water level is detected by a float. As soon as the maximum filling volume is reached, no further liquid can be aspirated automatically.
Technical Data
| Parameter | Value |
|---|
| Power consumption (max.) | 1400
W |
| Volume flow (max.) measured at the motor head | 69
l/s |
| Vacuum (max.) measured at the motor head | 259
mbr |
| Container volume (max.) Gross-Dust-Water | 20-16-10
l |
| Filter surface area | 3600
cm2 |
| Power cable length | 8
m |
| Dimensions L/W/H | 43 х 39 х 55
cm |
| Weight | 9.3
kg |
| Noise level | 72.5
dB(A) |
