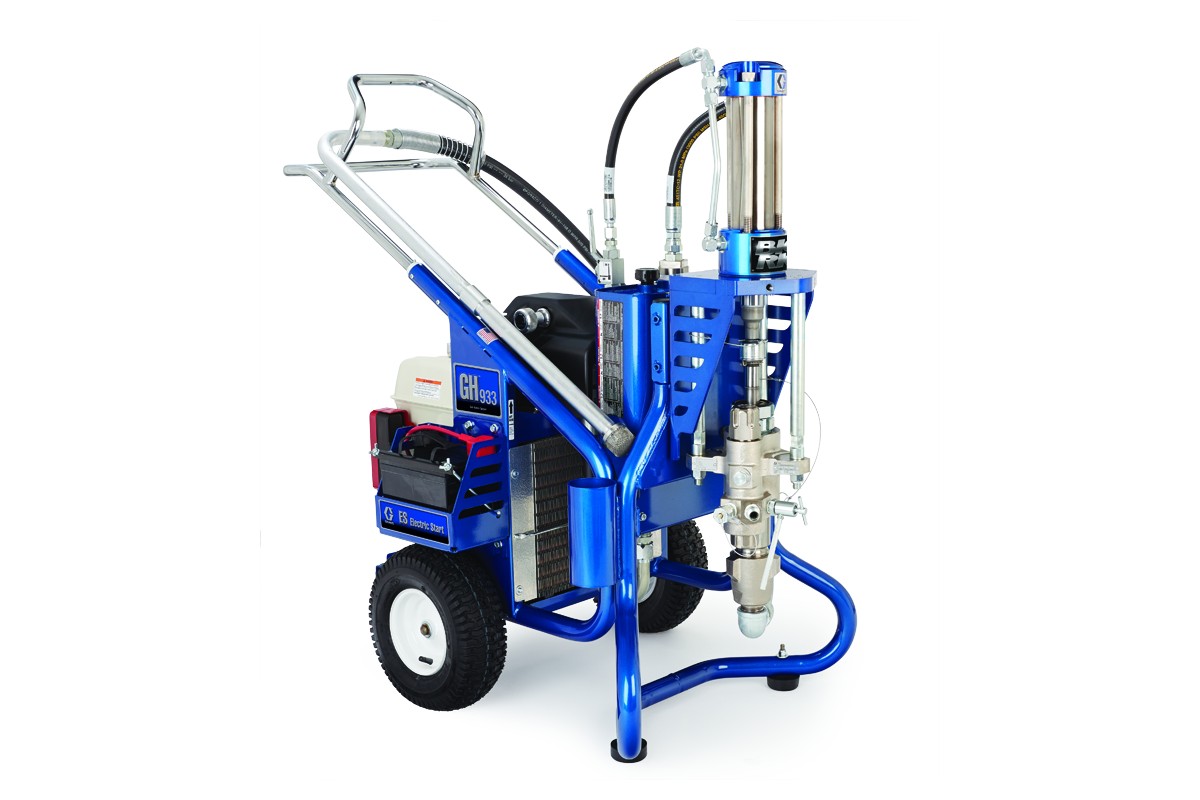

Large Gas Hydraulic Sprayers GRACO GH 933 Big Rig

Graco Big Rig airless sprayers provide the highest pressure and flow for the heaviest materials.
Common Characteristics
Application of GH 933 : High performance in architectural coatings, bridges, waterproofing, roofing, fireproofing and protective marine coatings. It also sprays with the most aggressive coatings, without the need for an expensive air compressor.
Absolute portability - there is no air compressor, so there is no question of air supply and air hose.
Maximum Performance - tested 9.7 Kw (13 horsepower) Honda engine with an integrated fuel tank with an optional electric starter system.
Exceptional flexibility - displaces high - pressure high - flow, only the right nozzle for proper operation needs to be selected.
Heavy - Duty Graco Hydraulic System with faster, more responsive changeover and high - precision pressure control.
Heavy - Duty Cooling System with large 4 - gallon reservoir and durable hydraulic filter extends life.
Exclusive Xtreme™ Pump includes QuikChange pump section with long life XtremeSeal™ and leather packings.
QuikAccess intake valve removes easily for fast repairs.
Honda Power - 390 cc to deliver maximum performance.
NEW ES Models feature Honda Engine with Electric Start and high capacity, 12 Volt 18 amp charging system.
Ready – To - Spray Big 250 Systems.
Configured with 250 feet of pressure - rated hose, gun, tip extensions and all the fittings you will need, these systems offer ultimate convenience and value.
Technical Data
Gear ratio2,64:1
Maximum working pressure500  bar
Maximum flow rate9.5  l/min
Dimensions (height, width, depth)1052x233x244  mm
Weight46.7  kg
