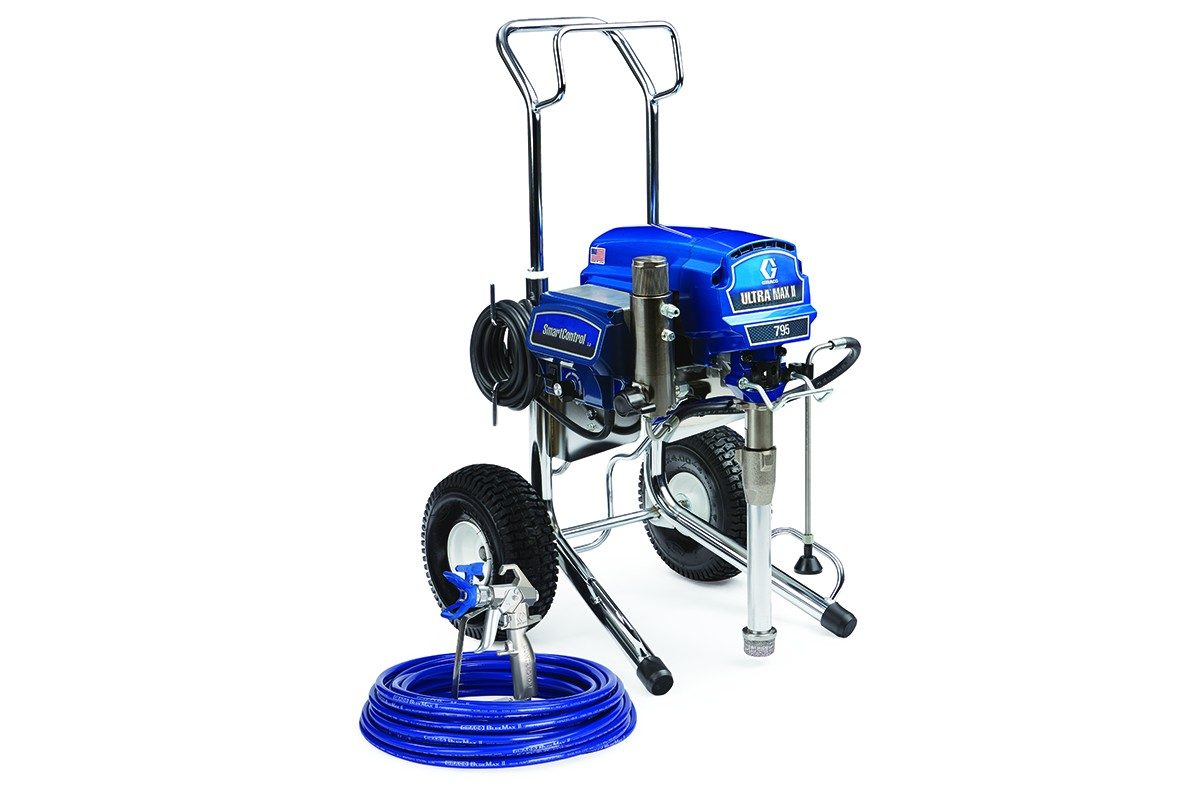

Sprayer GRACO ULTRA MAX - different models.
Common Characteristics

The Standard Series sprayer comes with these "Only On A Graco" features:

  • Advantage Drive System Runs quiet and has a lifetime guarantee.
  • MaxPower Brushless DC Motor – Never change brushes with this maintenance-free, totally enclosed motor.
  • SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.
  • Endurance Pump – Amazingly durable and easy-to-service design means less downtime on the job.
  • Easy Out Pump Filter – Spill less material when removing the filter element.
  • Rugged Cart Design – Chrome over steel makes this durable cart last for years.
  • Heavy-Duty Prime Valve – Maintenance-free design withstands high pressure dumping.


The ProContractor Series sprayer has all the features of the Standard Series, plus:

  • QuikReel – Deploy and rewind up to 300 ft of hose in seconds without twists or coils.
  • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
  • WatchDog Pump Protection System – Saves the pump from damage when paint or texture material runs out or a hose breaks.
  • ProConnect 2 Pump Removal System – Change out the pump using no tools in seconds resulting in quickly getting back to work.
  • FastFlush Cleaning System – Cleans the unit four times faster using only half the water.
  • On-Board Toolbox – End frustration and save time by never again searching for tips, filters, and tools.
  • Ready to Spray – Save setup time, thanks to the 100 ft of hose and gun that’s already attached and ready to use.


ULTRA® MAX II 695 ProContractor ULTRA® MAX II 795 ProContractor ULTRA® MAX II 1095 ProContractor
Flow - l/min. 3 3,6 4,1
Max. Pressure - bar 230 230 230
Weight - kg 43 45 55
SmartControl version - LED display 3 3 3
Motor Type DC Brushless DC Brushless DC Brushless
Motor Rating - kW 1,75 2 2,2
Generator Requirements - kW 5 5 5
Max.Tip Size : 1 gun 0,031 0,033 0,035
Max.Tip Size : 2 guns 0,019 0,021 0,025
