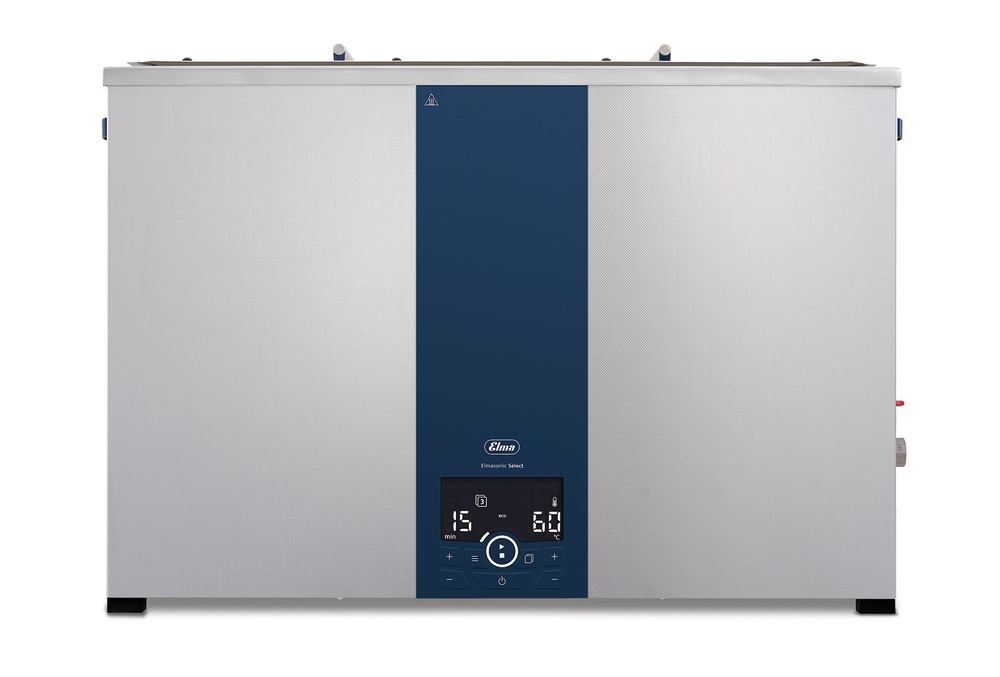

Elmasonic Select 900

Elmasonic Select 900 - 89 l
Included sound - protection cover
Common Characteristics
37 kHz ultrasonic frequency (control range -2,5/+5,5 kHz).
5 ultrasonic modes for need-based sound field distribution in the ultrasonic bath.
Eco-mode: Gentle cleaning with quieter operation by running the sweep-mode at a slightly lower intensity.
Sweep-mode : Even cleaning through even sound field distribution in the ultrasonic bath.
Pulse-mode : Removal of even stubborn contamination through pulsating sound field distribution.
Dynamic-mode : Combination of the ultrasonic modes sweep and pulse in order to increase the cleaning performance.
Degas-mode: Quick degassing of the cleaning liquid and for special applications in the laboratory.
4 memory locations for cleaning programs, available via quick selection.
Autostart function for temperature-controlled start of cleaning.
Adjustable limit temperature from 40-60 °C (can be switched to °F).
Digital control unit with wipeable membrane keyboard and easy-to-read display for displaying all operating states.
Optical and acoustic feedback, e.g. at the end of cleaning or when the limit temperature is reached.
Pre-selection of cleaning time: cleaning time adjustable between 1 minute and 6 hours.
Electronic temperature control adjustable in steps of 5 °C from 25-80 °C (can be switched to °F; temperature tolerance -5/+8 °C).
Setup menu for individual adjustment of the device functions.
Dry run protection (except for Elmasonic Select 500 and 900).
Automatic safety shutdown after 8 hours.
Splash-proof case and cleaning tank made of stainless steel.
Shut-off valve on the side for emptying the cleaning tank via the outlet on the rear of the device (only for Elmasonic Select 60 to 300).
Shut-off valve and outlet on the side of the device for emptying the cleaning tank (only for Elmasonic Select 500 and 900).
Technical Data
Mains voltage220-240  V
Ultrasonic frequency37  kHz
Max. filling volume tank89  l
Unit outer dimensions875 595 / 505  mm
Tank internal dimensions600 / 500 / 285  mm
Basket internal dimensions545 / 460 / 190  mm
Weight49.3  kg
Total power consumption2960  W
Effective ultrasonic power960  W
Heat output (for H units)2000  W
