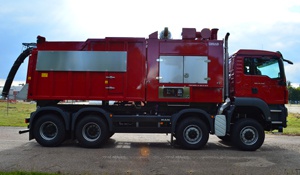

A truck mounted unit that can transport bulk materials and liquids by vacuum through a hose system with a diam up to 200 mm.
Common Characteristics
This vacloader is equipped with a separate diesel engine which makes it possible for the vacloader to operate independently of the truck. It has a suction only feature and provides great flexibility for different applications with multiple add-ons available. Its square tank design makes it suitable for dry applications and it’s often used in following industries: cement, steel, building, energy etc.
Technical Data
| Parameter | Value |
|---|
| Make | Volvo D8 TAD873VE
|
| Cylinder volume | 7.7
l |
| Power | 235 / 320
kw / hp |
| Max engine speed | 2200
rpm/min |
| Charging system | 24
VDC |
| Vacuum pump | Kaeser Omega 83 PV
|
| Max.vacuum | 950
mbar |
| Air volume, unloaded | 8100
m3/h |
| Air volume (-500mbar) | 7100
m3/h |
| Operating speed | 1100
rpm |
| Max power required | 220
kw |
