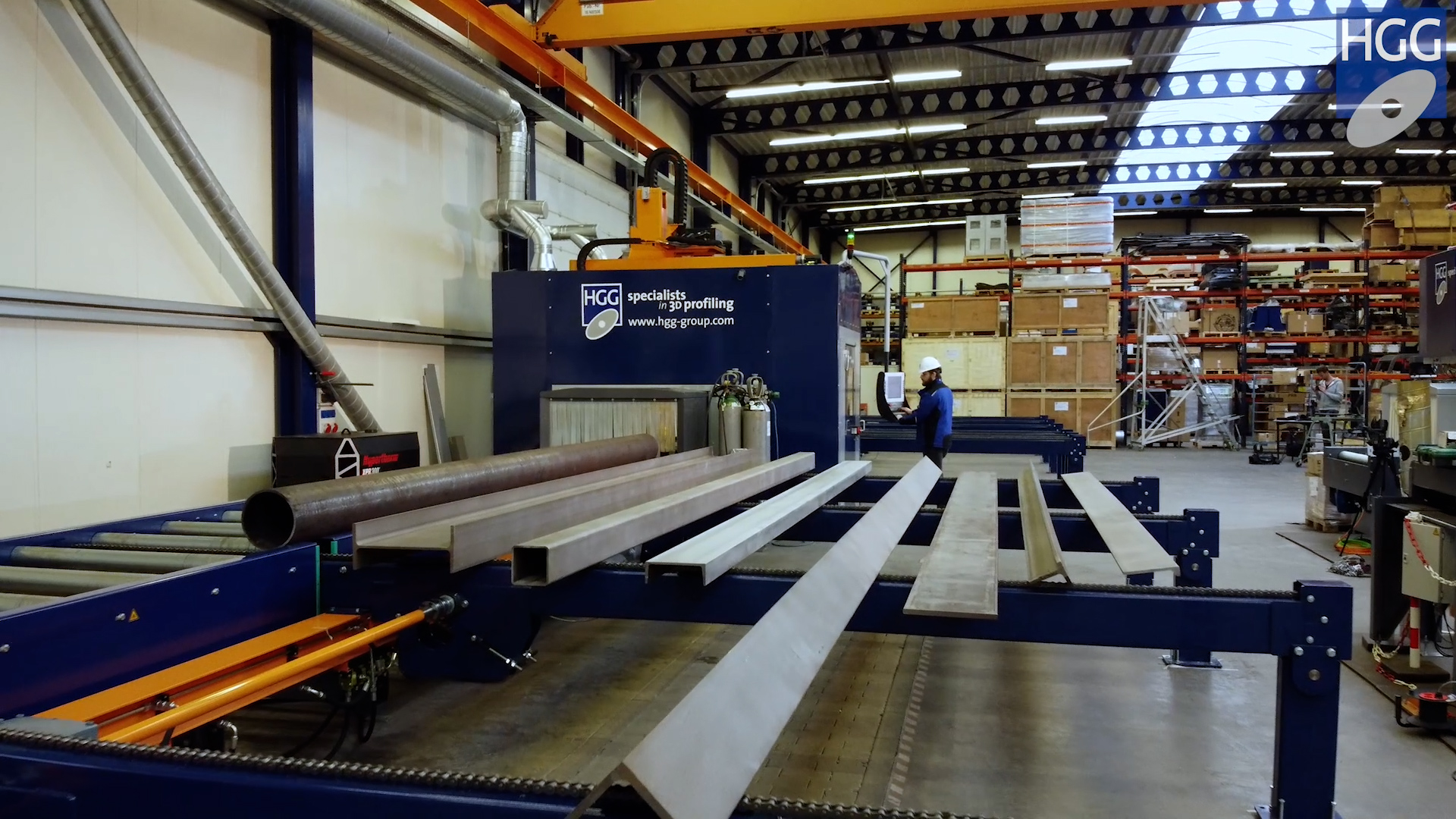

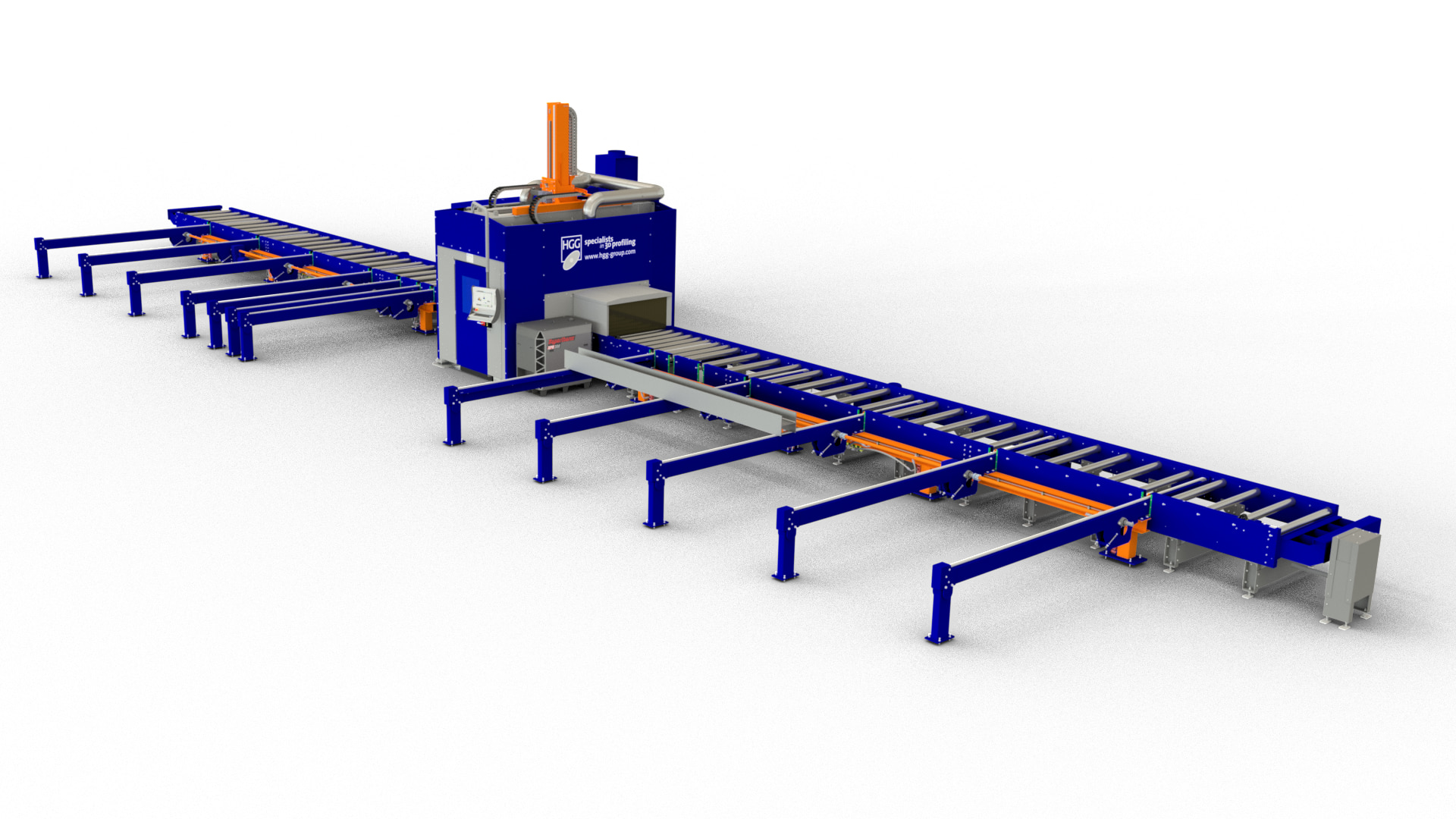

The RPC 1200 Mk3 is the world’s first beam coping robot that also profiles pipes.
Common Characteristics

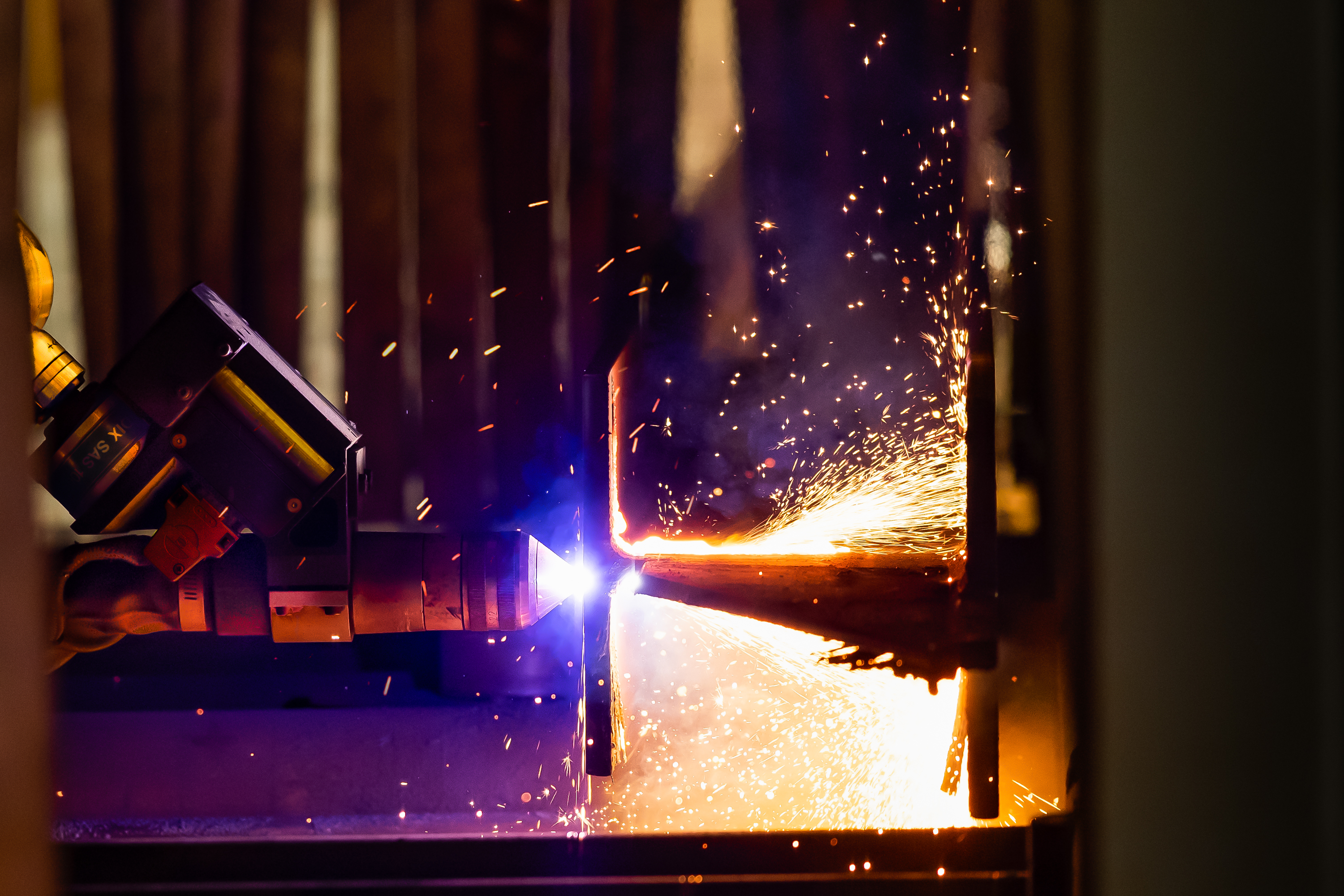

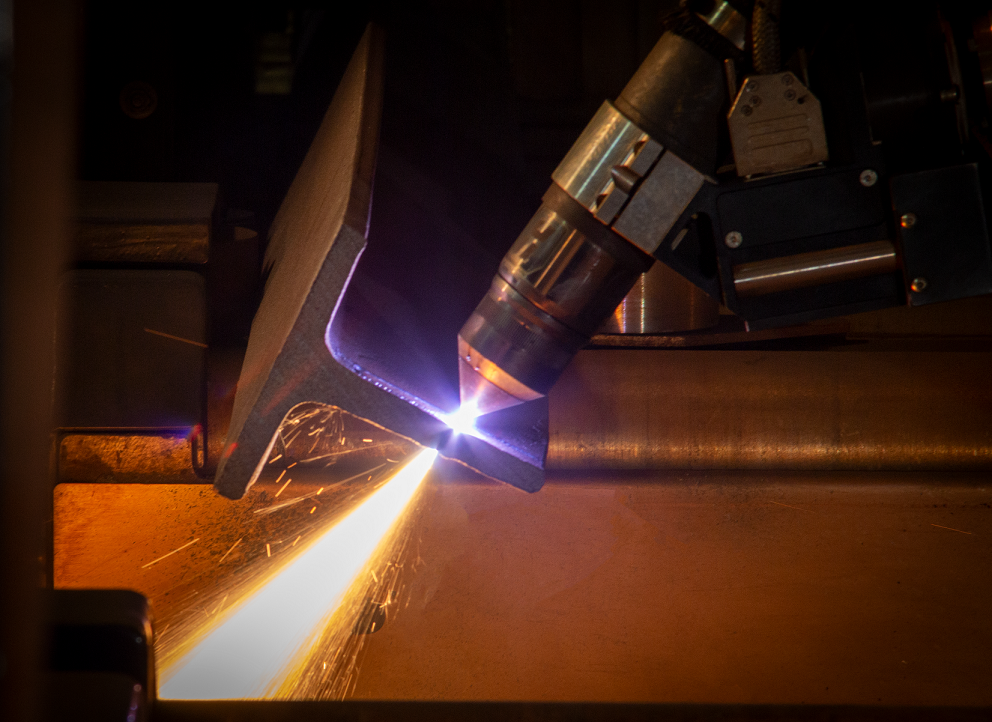

The RPC 1200 Mk3 is the world’s first beam coping robot that also profiles pipes. This all-in-one solution with thermal 3D cutting, is the most versatile beam cutting solution available on the market. It offers high-speed plasma cutting of ready-to-fit parts, prepared for any desired connection, both welded and bolted. The RPC sets a new standard by offering an entire fabrication shop in a single machine.
Product features:

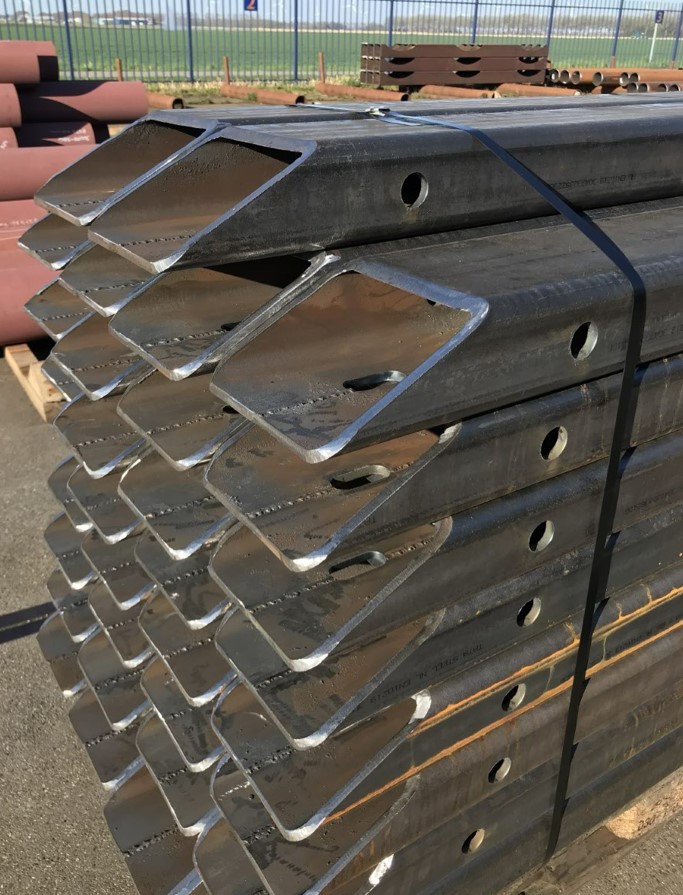

- The first beam coping robot that cuts all profiles including pipes.
- 3D Laser measurement for compensating material deviations.
- Save 20% in fit-up with plasma layout and text marking.
- Hi-Def plasma by default
- Plasma marking with cutting torch
- Powersource: Hypertherm or Kjellberg
- CHS / Pipe cutting requires additional equipment and is only compatible with HGG Standard conveyers
Technical Data
| Parameter | Value |
|---|
| Plasma cutting | да/yes
|
| Plasma marking | да/yes
|
| Pipe processing | да/yes
|
| Square tube processing | да/yes
|
| Profiles processing | да/yes
|

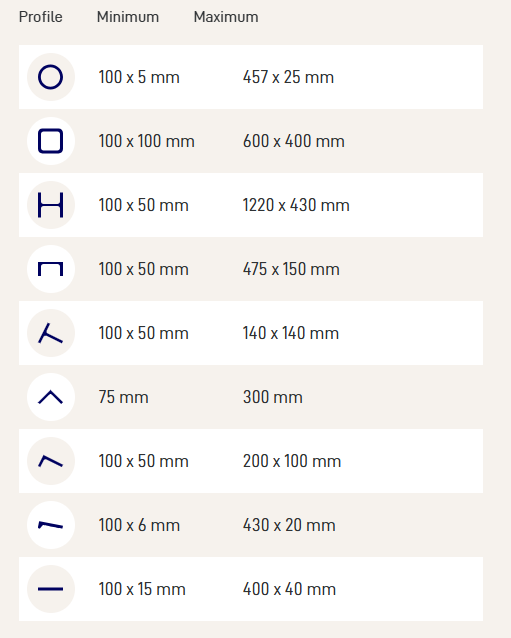

| Pipe processing capacity | 100x5-457x25
mm |
| Square tube processing capacity | 100x100-600x400
mm |
| Channel profile processing capacity | 100x50-475x150
mm |
| Angle profile processing capacity | 75-300
mm |
| Flatbar processing capacity | 100x15-400x40
mm |
| Angle L-shape profile processing capacity | 100x50-200x100
mm |
| HEB-beam processing capacity | 100x50-1220x430
mm |
| Max. length of profiles | 12000
mm |
| Robot accuracy | 1
mm |
| Robot repeatability | 0.02
mm |
