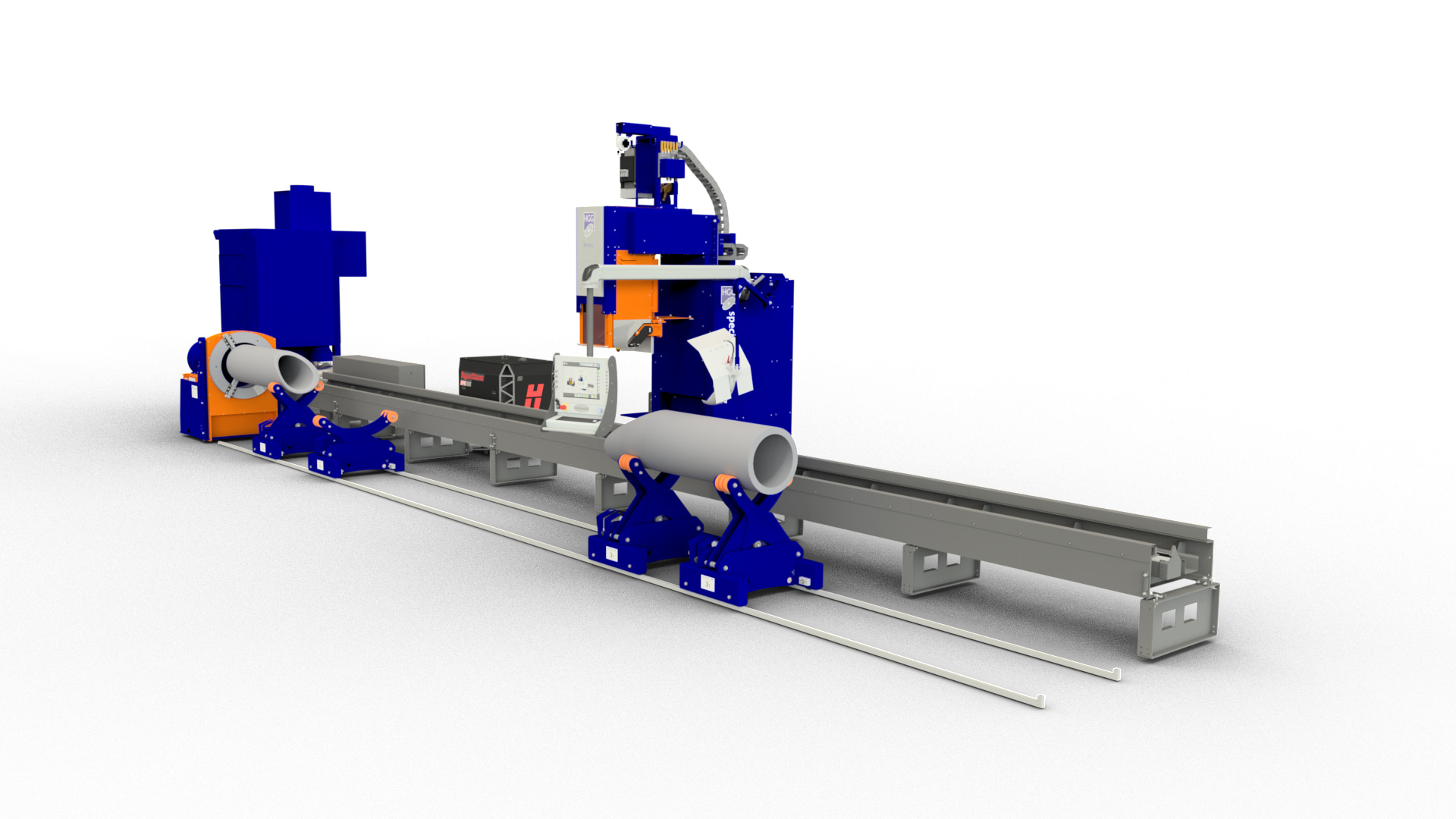

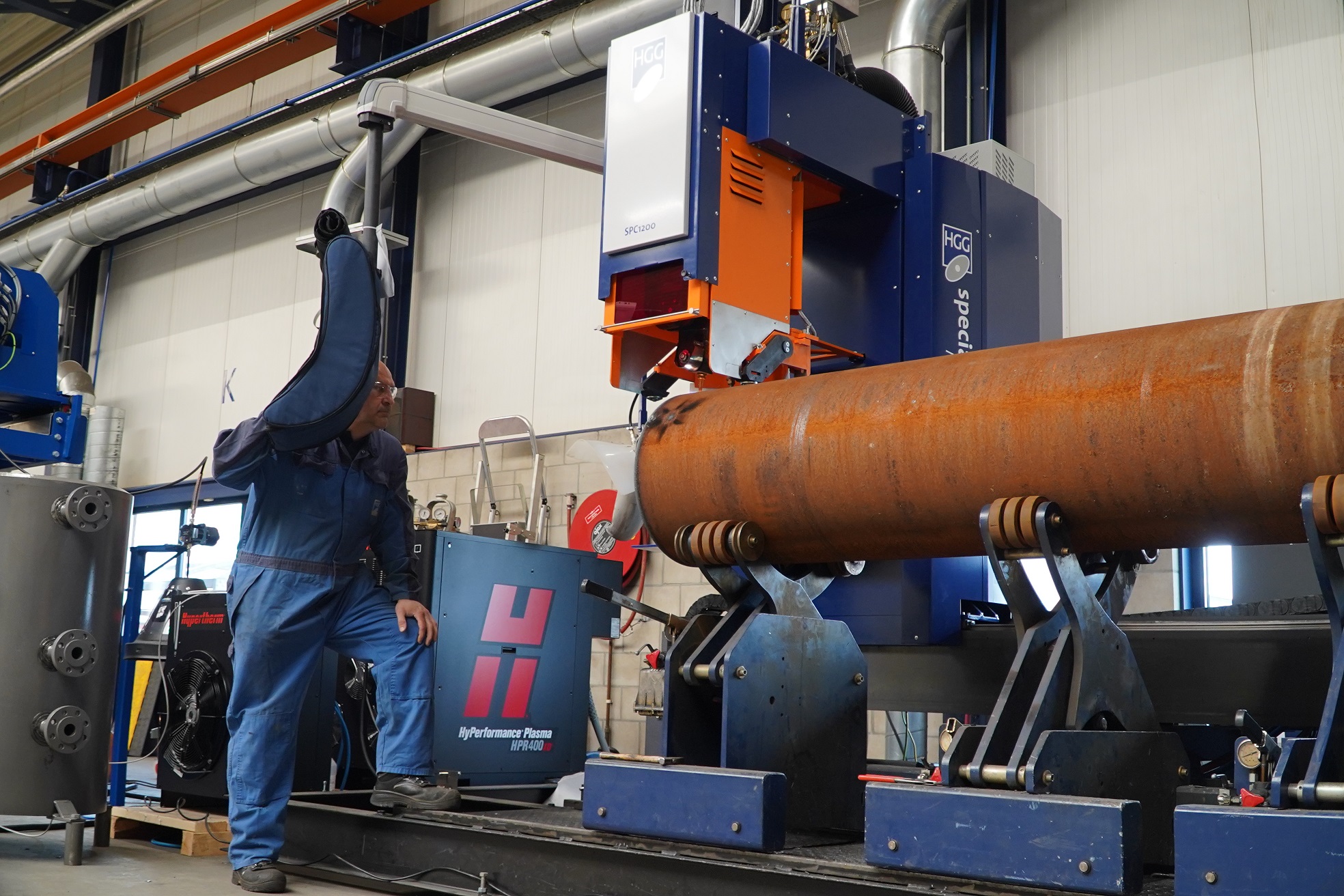

Versatile pipe cutting machine SPC 500–1200 PT
Common Characteristics

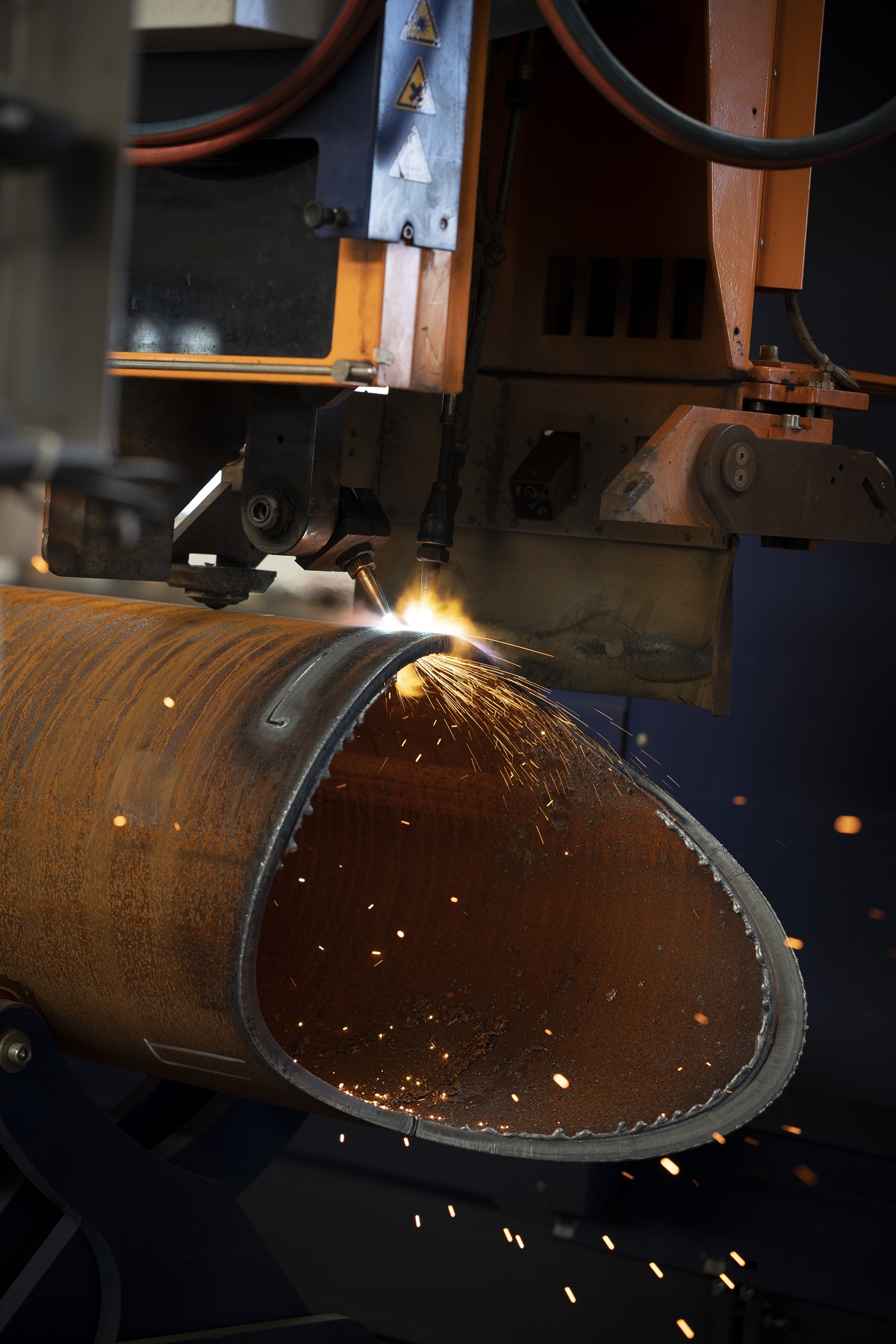

The highly accurate SPC 500–1200 PT is versatile pipe cutting machine designed to handle a wide range of materials, sizes, and wall thicknesses. Perfect for any application, this machine offers numerous customization options to meet your specific needs and requirements.
Product features
- Minimizing waste with long- and zero scrap jaws. - The chuck and jaws are designed to cut as close as possible to the end of the pipes, minimizing valuable waste material in the process.
- Keep operators safe thanks to 3-Point Fume Extraction System.- The 3-point fume extraction redirects fumes away from the shop floor, filters them, and releases them outside, enhancing operator safety and machine lifetime.
- Automated pierce assist to extend consumable lifespan.- Pierce assist safeguards fast piercing, protects expensive material, minimizes spatter for longer nozzle lifetime and guarantees a constant quality of the cut
Technical Data
Parameter | Value |
---|
Plasma cutting | да/yes
|
Oxy-fuel cutting | да/yes
|

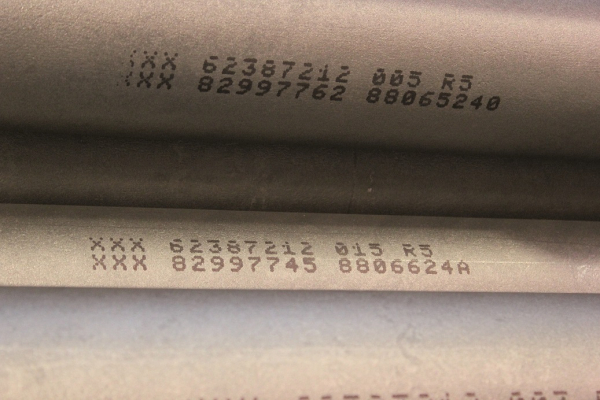

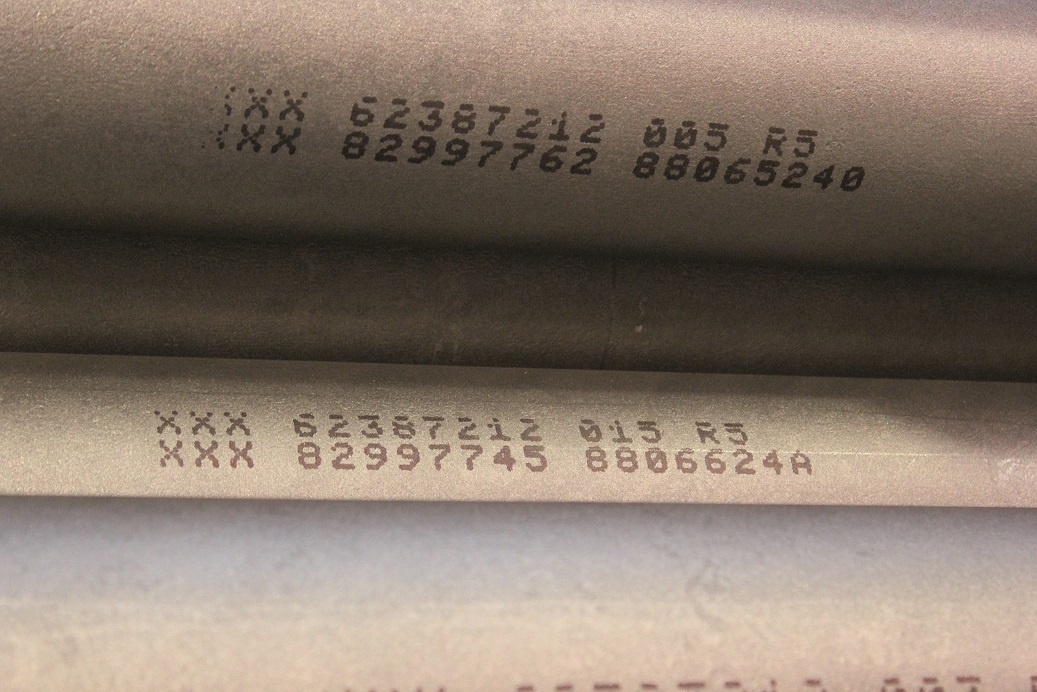

Plasma marking | да/yes
|
Material positioning weight | 8000-12000
kg |
Material weight | 12000
kg |
Material thickness | 3-150
mm |
Максимален ъгъл на рязане | 70
C degree |

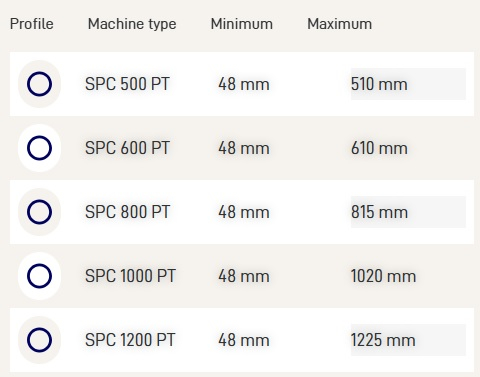

Pipe processing capacity SPC 500 PT | 48-510
mm |
Pipe processing capacity SPC 600 PT | 48-610
mm |
Pipe processing capacity SPC 800 PT | 48-815
mm |
Pipe processing capacity SPC 1000 PT | 48-1020
mm |
Pipe processing capacity SPC 1200 PT | 48-1225
mm |
