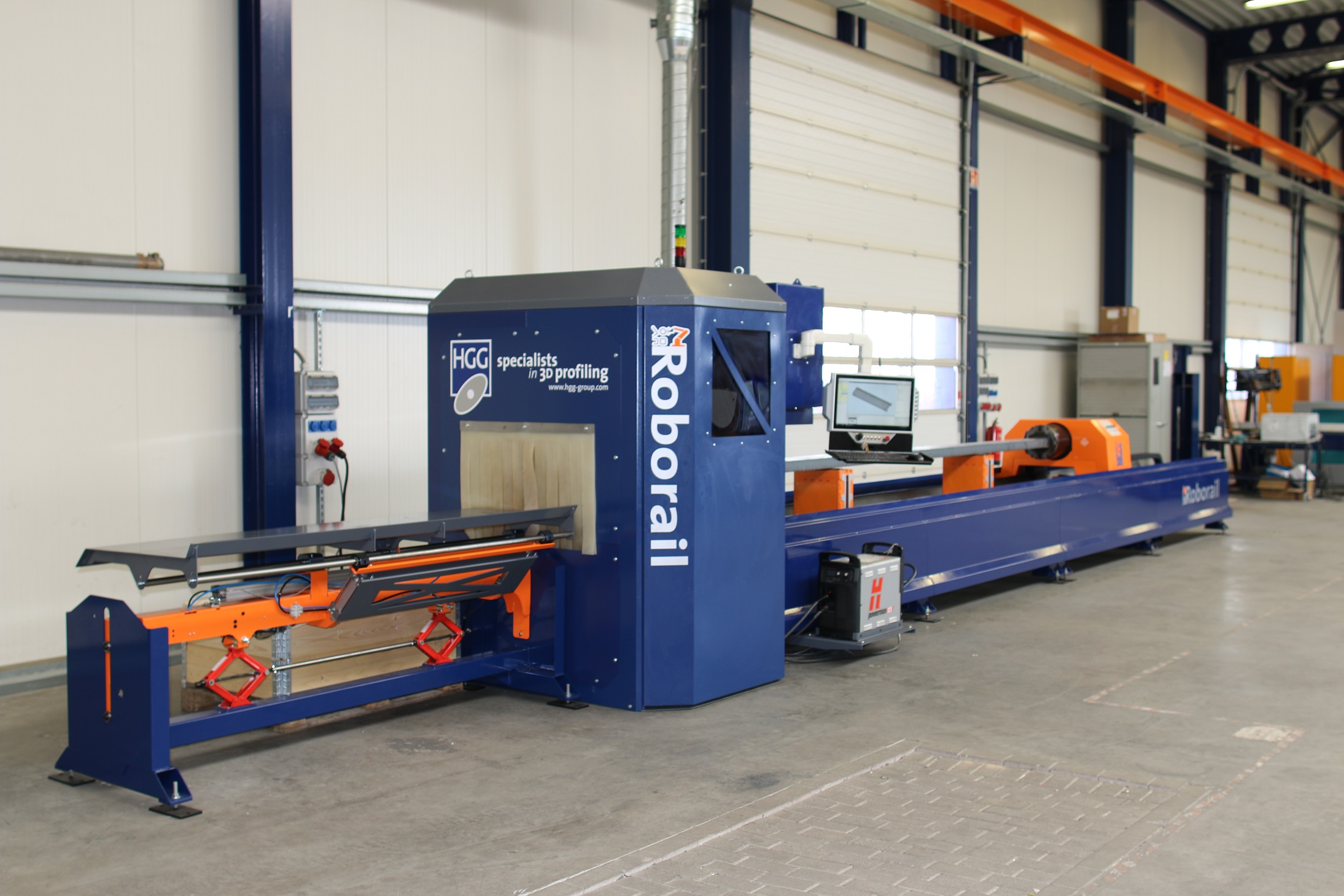

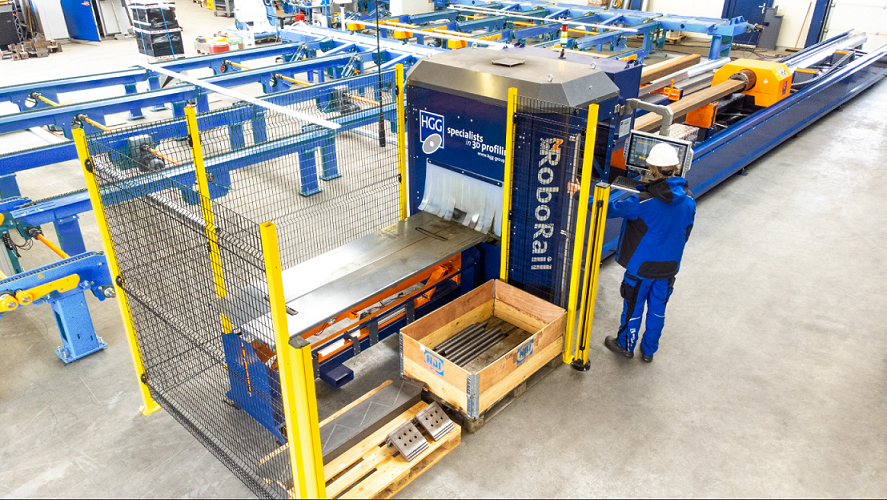

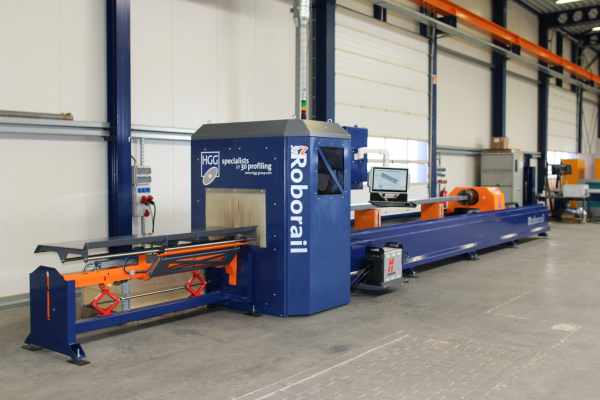

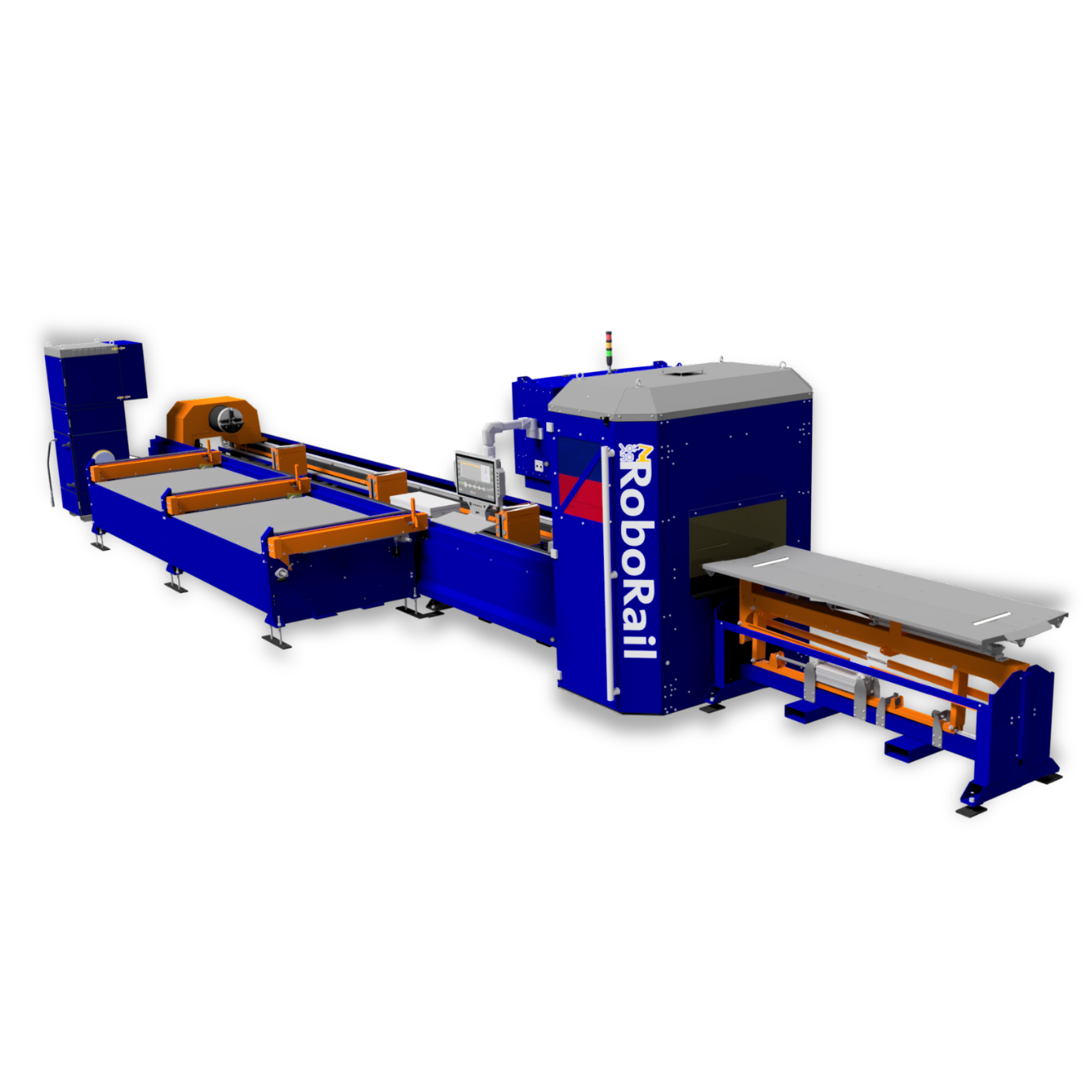

Profiling Machine HGG RoboRail

The RoboRail will give you a more robust, reliable, and flexible solution. HGG is the world leader in 3D profiling technology, and the new RoboRail has been developed in partnership with Automated Layout Technology, LLC to process a vast range of material quickly and accurately to length: cuts, copes, holes, layout marking, and more. Handrail pipe, stringer channels, box tubes, and angles are processed with a state-of-the-art Staubli robot and reliable Hypertherm plasma system.

Specifications
• Plasma cutting

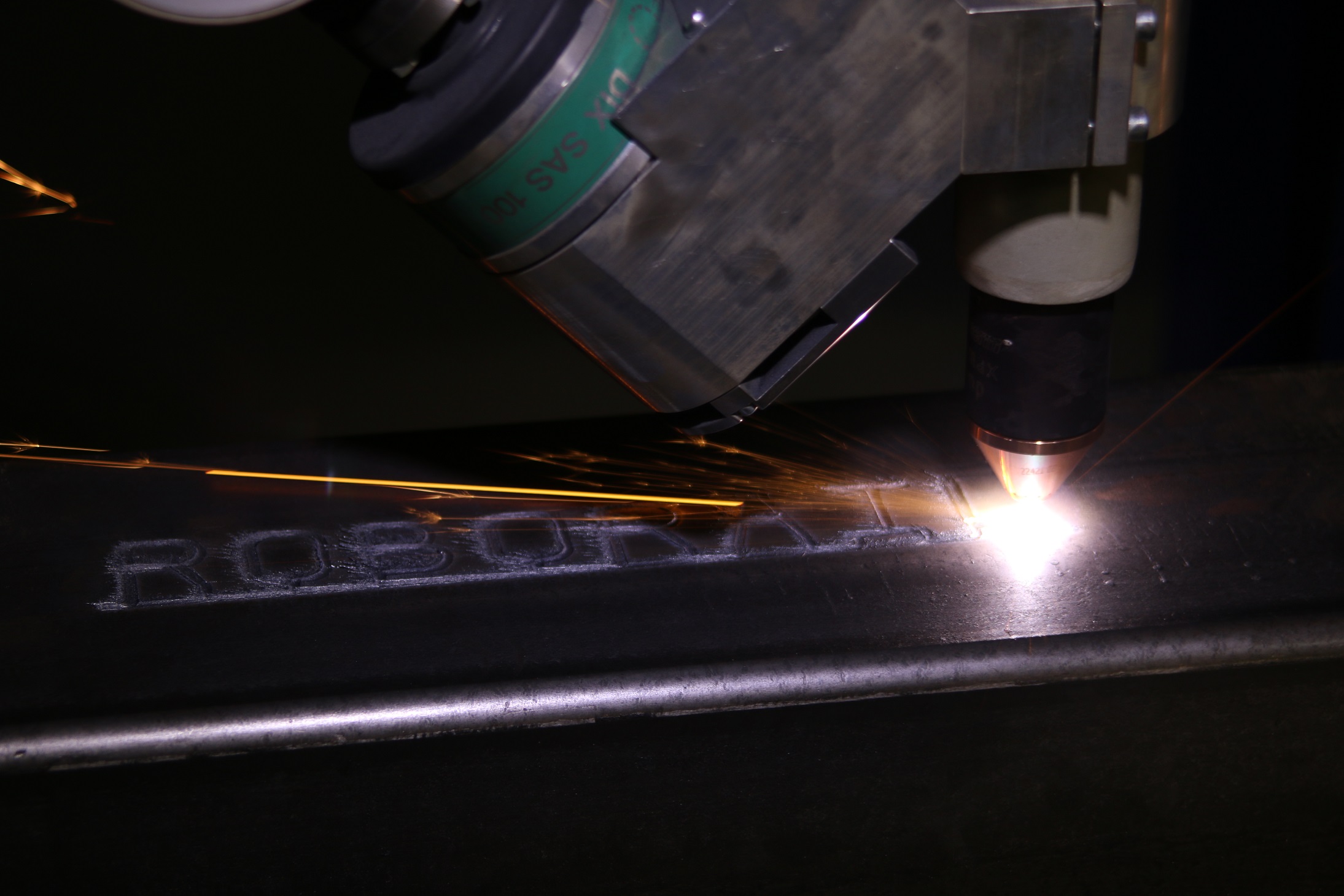

• Plasma marking
• CAD Connection
• Material thickness between 3 - 20 mm
• Infeed length/weight limited to 7.135 mm / 400 Kg
• Outfeed length is limited to 2.500 mm
• Minimal flatbar thickness is 10 mm

3D Profiling Shapes

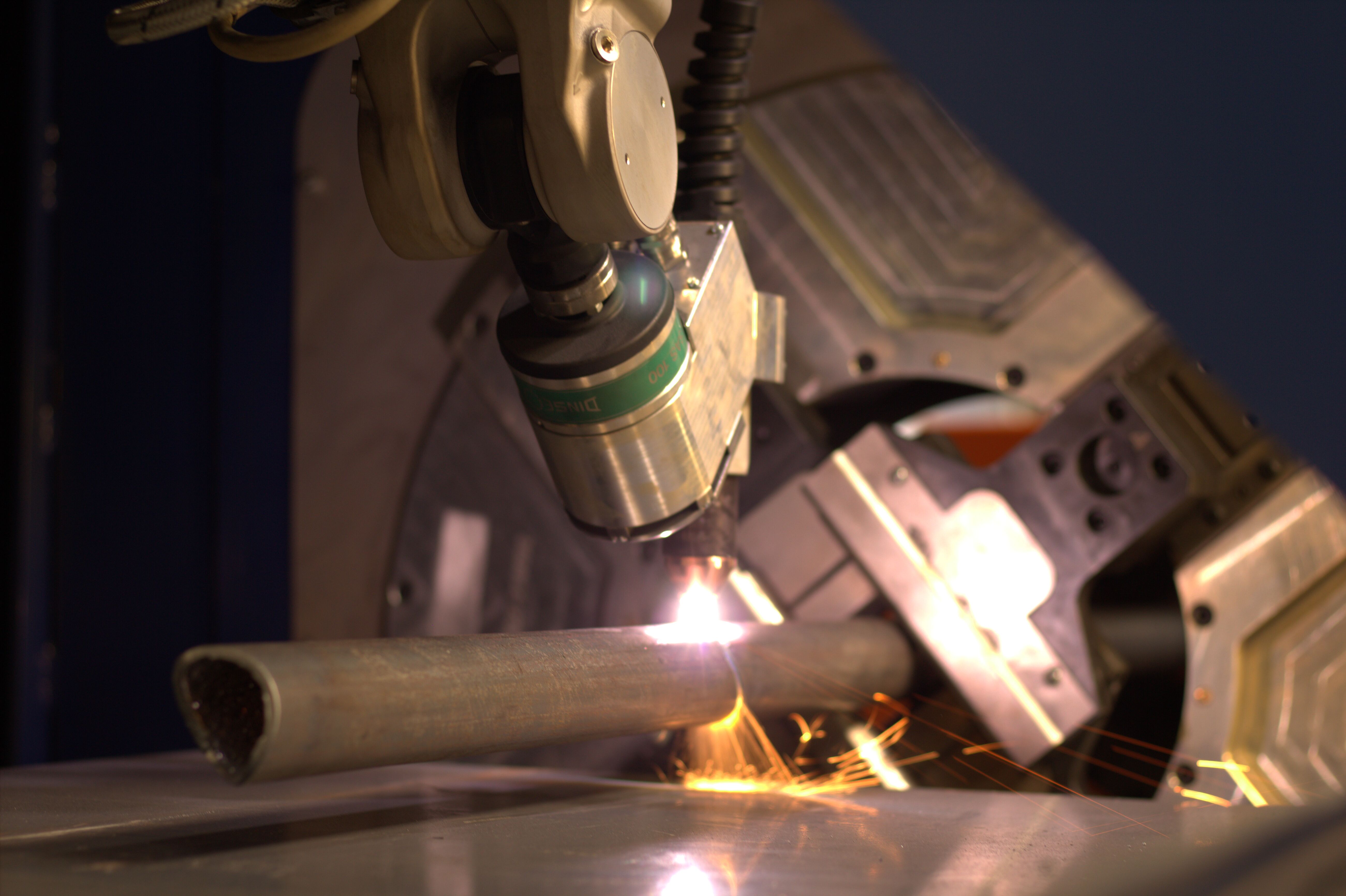

1. Automated Pipe Cutting
From handrail to medium sized truss structures, the RoboRail can do it all. In a matter of seconds.
• Plasma Cutting
• Plasma Marking
• Material 25 - 250 mm

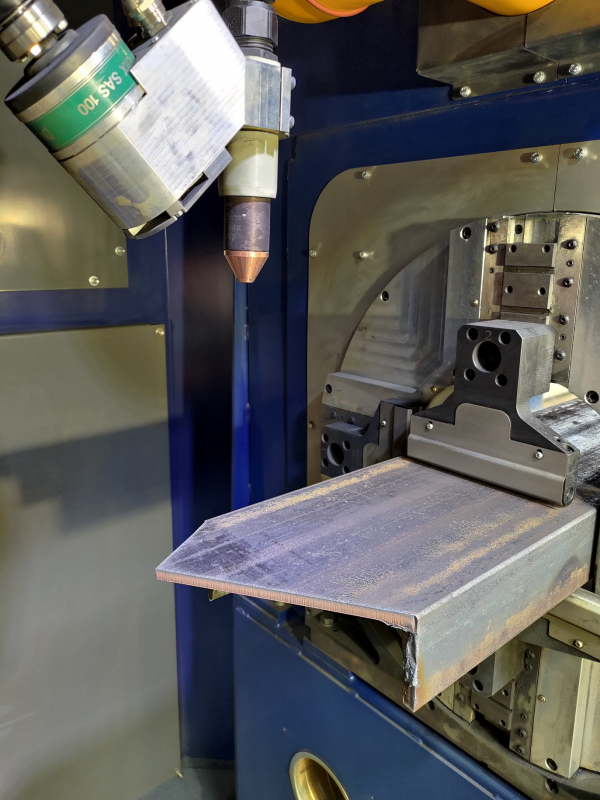

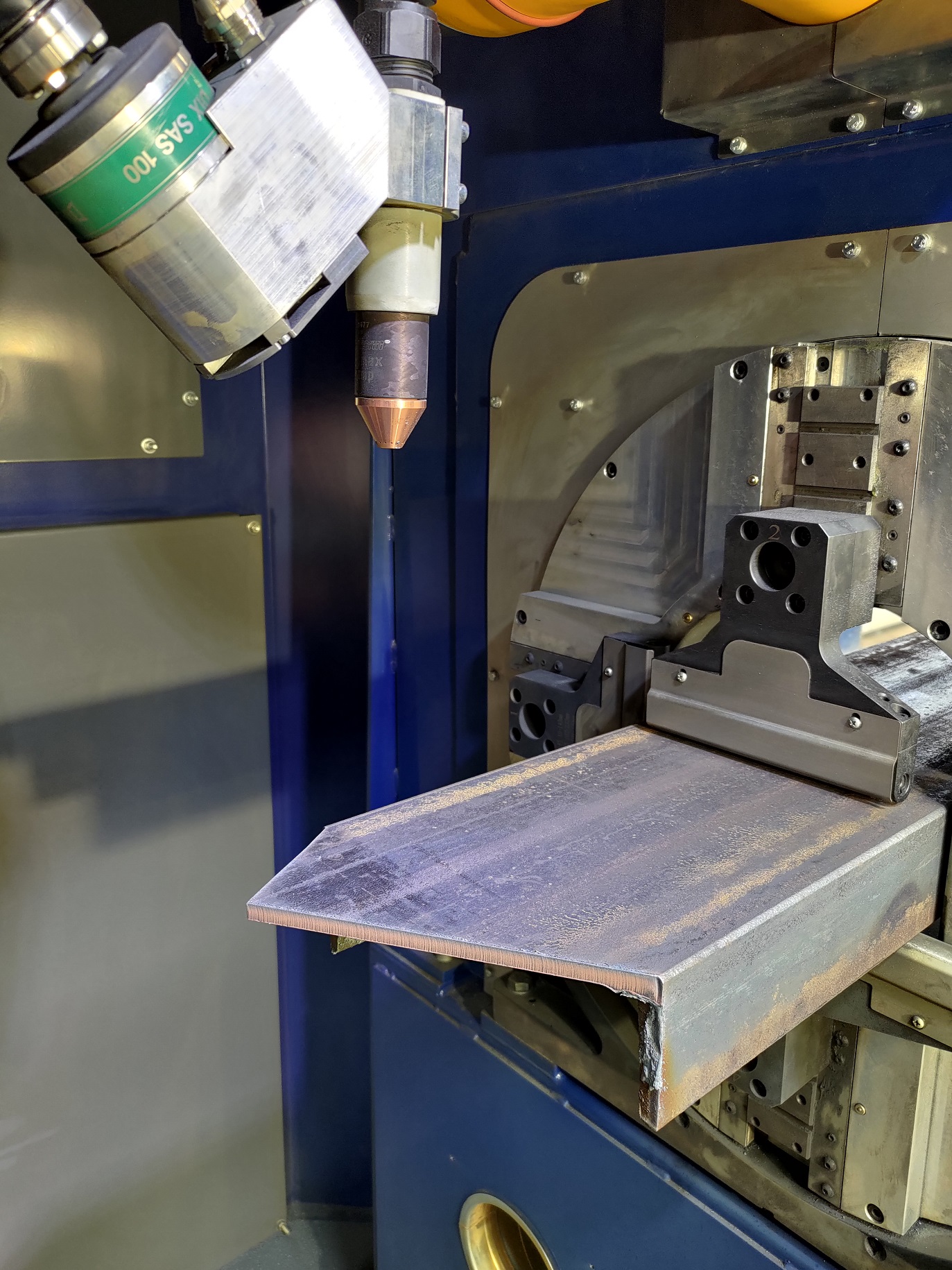

2. Automated Angle Cutting
• The option to cut angle profiles gives you extra flexibility to complete any miscellaneous work.
• Plasma Cutting
• Plasma Marking
• Material 75 - 300 mm


3. Automated Channel Cutting
• The RoboRail is the best in processing stair stringers, platform reinforcement structures.
• Plasma Cutting
• Plasma Marking
• Material up to 280 x 95 mm

Cut profiles and hollow sections with one machine
The RoboRail has the best of both worlds. A chuck for cutting the hollow sections by rotation. And a Staubli robot arm which gives the freedom to cut profiles without the need for rotation. One machine for copes, notching, cut-outs, holes, slot holes and markings.
