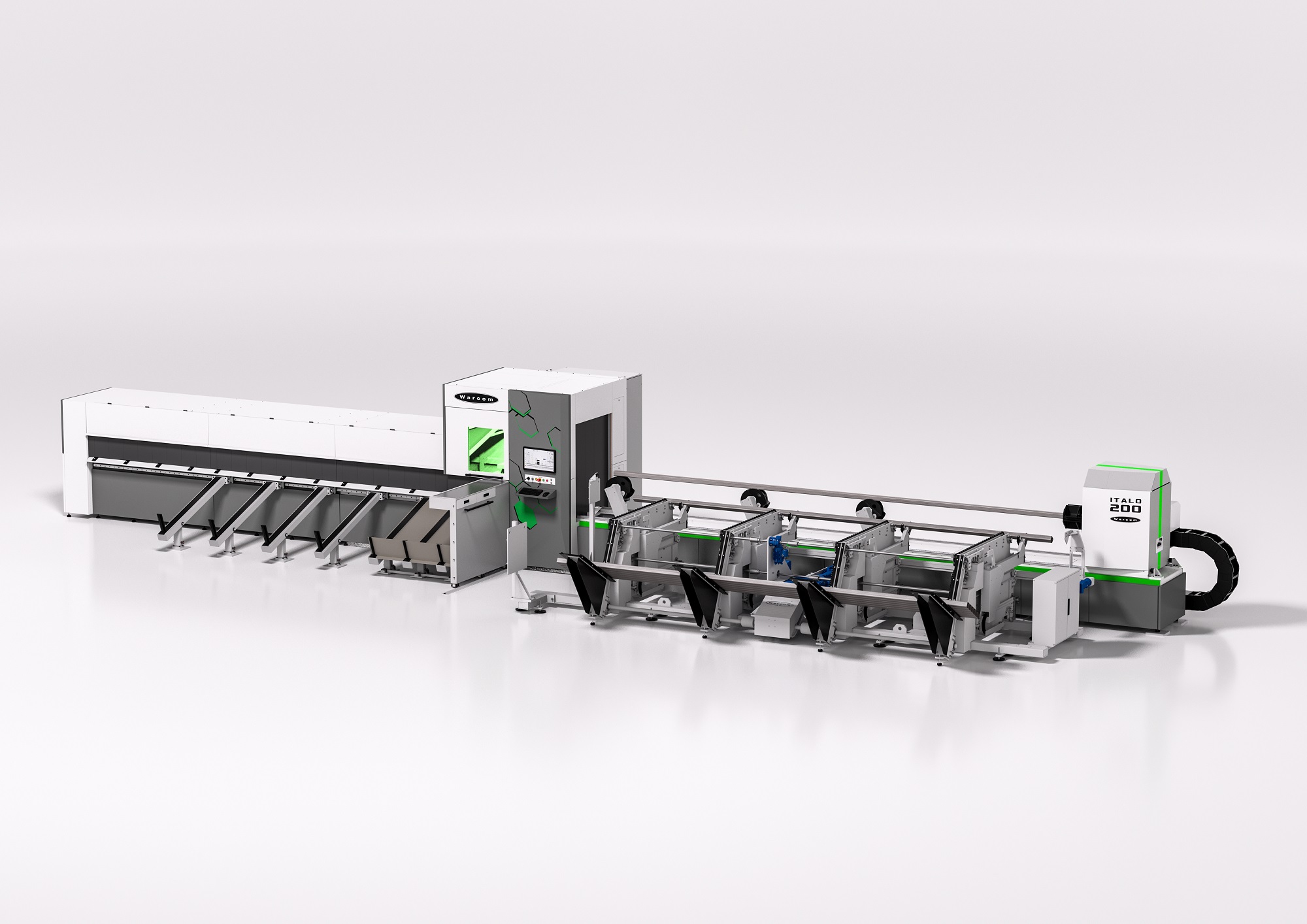

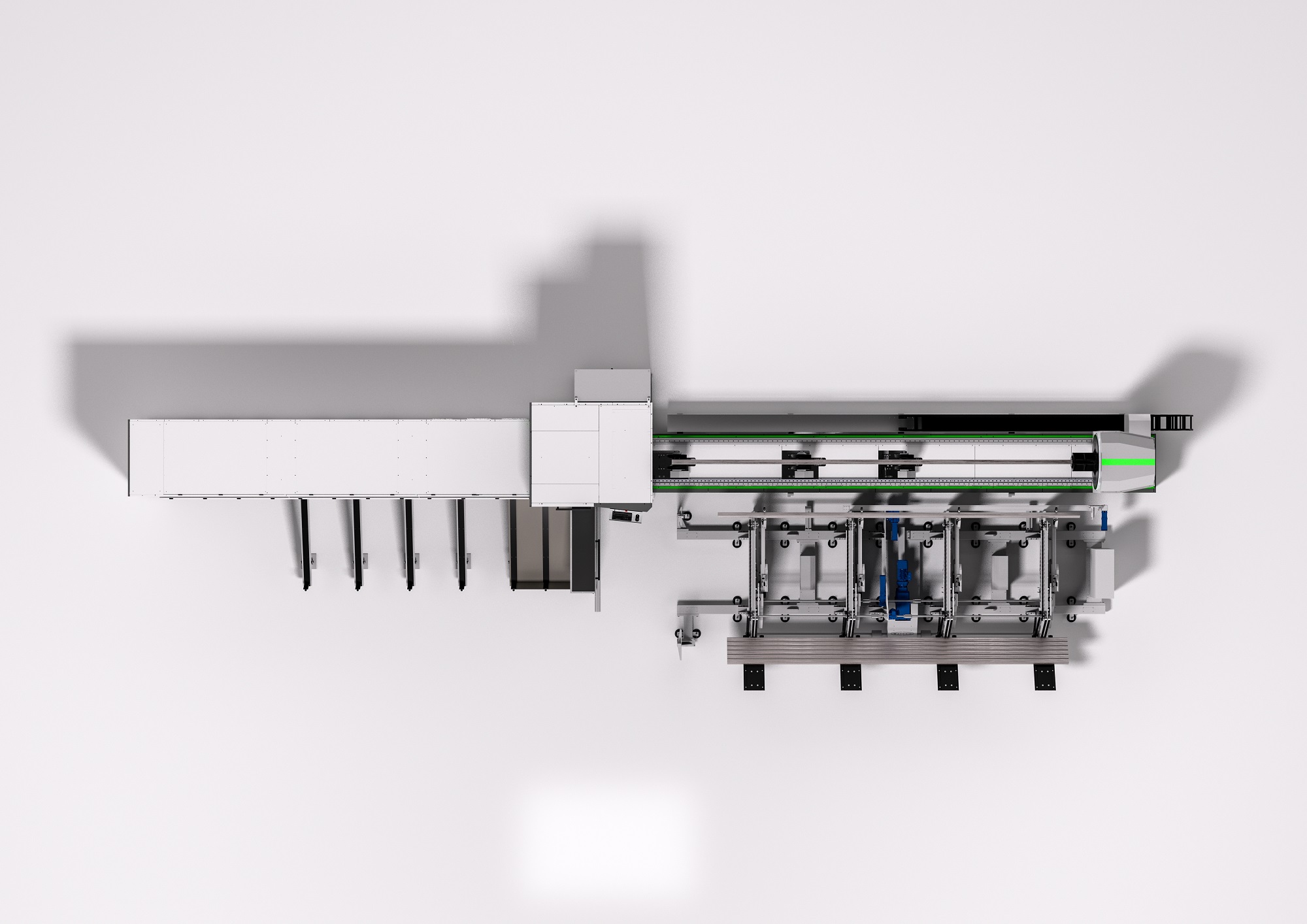

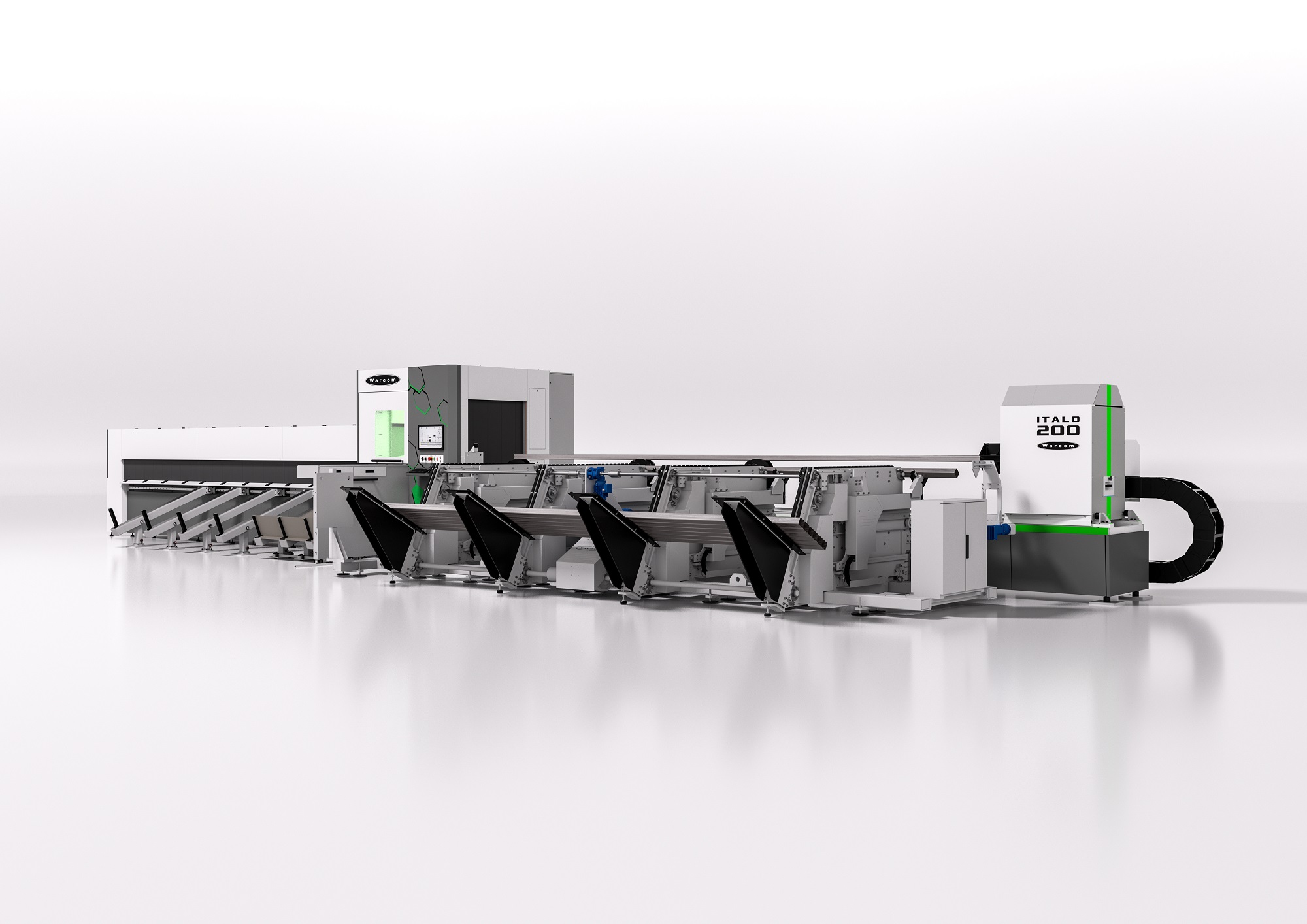

Starting from a basic configuration with manual loading and 1 kW source, it is possible to arrive at a configuration with automatic loading from bundle and chain, automatic unloading and 3 kW source. It is possible to make holes, grooves, cuts on pipes with round, square and rectangular sections up to a maximum diameter of 200 mm.
The plant is supplied with VIRTUO software, easy to use and equipped with the import of the main 3D assemblies.
GEOMETRIC AND TECHNOLOGICAL RANGE OF PROCESSING
The machine is equipped with a self-centering chuck of the "All-In-One" type, which does not require mechanical replacement or adjustment of the jaws when changing the profile or diameter.
Standard dimensions of closed profiles:
Round pipes: from OD 20 mm to OD 200 mm
Square profiles: from 20 × 20 mm to 150 × 150 mm
Rectangular and flat-oval profiles: from 20 × 30 mm to a maximum inscribed diameter of 200 mm
Capacity of lengths and weights:
Maximum length of the loaded profile: 6 500 mm
Minimum length of the loaded profile: 1 800 mm
Maximum length of finished workpiece: 6 000 mm
Minimum length of technological waste (sfrido): 205 mm
Maximum linear weight of the processed material: 25 kg/m
