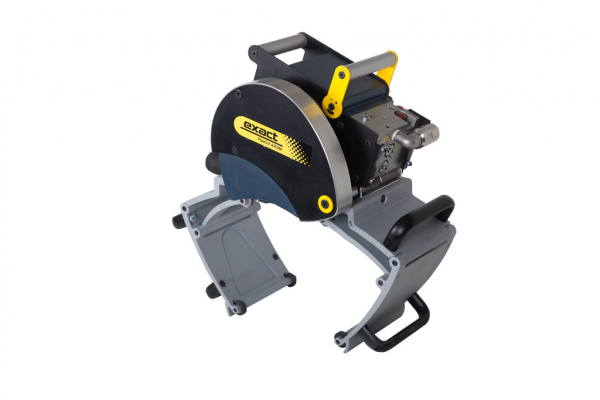

Exact PipeCut AIR 360

Pneumatic PipeCut AIR 360 is specially designed for repair and maintenance applications in the water Utility
market sector. Suitable for ALL materials.
Common Characteristics
Pneumatic PipeCut AIR 360
A new pneumatic pipe saw In Exact family. It is designed mainly to be used to cut assembled pipes in a ditch, but it can be also used on the pipe supports like any other Exact pipe saw.
The model PipeCut Air 360 has been designed and developed for the main purpose of cutting Cement Lined Cast Iron pipe material for repair and maintenance applications in the water Utility market sector.

The market demand behind it’s introduction onto the market was for an Air driven saw that cuts this type of pipe material in a fixed position underground with the pipe encapsulated with water.

The PipeCut Air 360 model meets these demands and has been enthusiastically received by utility companies from the date of it’s official launch earlier this year.

In addition the PipeCut Air 360 offers users the opportunity to cut plastic pipe material and for cutting steel pipes albeit the latter having a short lifetime of the saw blade before it becomes blunt and requires to be sharpened or replaced. Required Air pressure 6 bar90 psi.
Price includes:
1. PipeCut AIR 360
2. Wrench with push stick
3. A small funnel to fit into the oil inlet hole
4. 5mm Allen Key for the oil port

Not included in the packet:
1. Air swivel connection
2. Saw blade or diamond disc
3. Air tool oil VGA 32
Technical Data
ParameterValue
Pipe O (OD)110 - 360 (4 - 15)  mm(“)
Wall thickness45 (1.8)  mm(“)
Voltage / Power4.6 HP / 3,4 KW  V/W
Blade diameter180 (7.09)  mm(“)
Mounting bore62 (2.44)  mm(”)
Weight26,7 (59)  kg(lbs)
