Professional Solution for Sheet Metal Processing
The TFON Surfacer® 2510 Series has been developed for the automated processing of sheet metal parts after laser cutting, plasma cutting, or oxy-fuel cutting. Depending on the selected configuration, the machines provide efficient slag removal, edge rounding, and surface finishing, ensuring consistent processing quality and optimal preparation for subsequent manufacturing operations.
The automated process delivers repeatable results, minimizes manual labor, and significantly reduces production time by preparing components for welding, painting, powder coating, or final assembly.
The TFON Surfacer® 2510 Series is an ideal solution for manufacturers of steel structures, machine builders, laser and plasma cutting service centers, electrical enclosure manufacturers, industrial equipment producers, agricultural machinery manufacturers, transport equipment manufacturers, and all companies involved in sheet metal fabrication.
Advantages
- Automatic slag removal after thermal cutting.

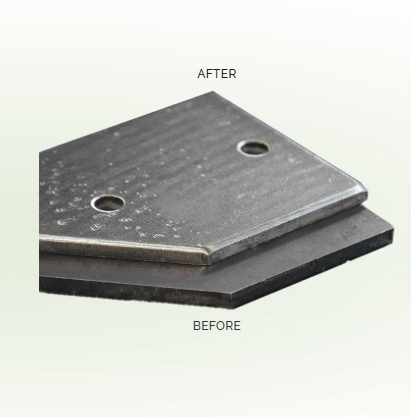

- Precise and uniform edge rounding.
- Removal of slag and oxide layers.
- Improved surface quality for painting and powder coating.
- Better preparation for welding operations.
- Reduced manual finishing work.
- Increased production efficiency.
- Consistent and repeatable processing quality.
- User-friendly operation via touchscreen control panel.
- Configurable machine layouts to meet individual production requirements.
Technical Specifications
- Max. Material Width: 1000 mm
- Material Thickness: 0 to 120 mm
- Max. Material Weight: 500 kg • Min. Material Width: 50 × 50 mm
- Conveyor speed: 0.6 - 4.0 m/min
- Suitable for processing black steel, stainless steel and aluminum
Why Choose the TFON Surfacer® 2510 Series
The TFON Surfacer® 2510 Series is the ideal solution for manufacturers processing standard-size sheet metal components who require high productivity, reliable operation, and superior processing quality. Thanks to the available machine configurations, each model can be selected to match specific production requirements—from standard slag removal to complete edge rounding and surface finishing.
By automating the finishing process, manufacturers can significantly reduce processing time, improve workplace safety, minimize labor costs, and achieve consistent, high-quality results throughout every production batch.
TFON Surfacer® 2510 Series Models
|
Model |
Main Processing Operations |
|

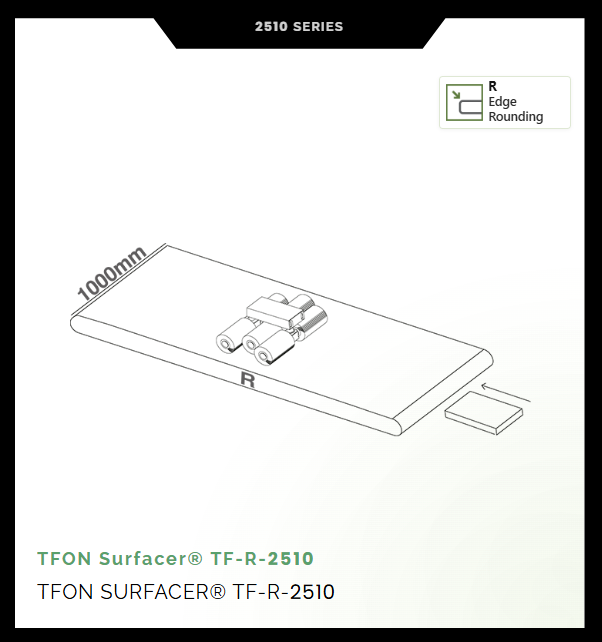

TF-R-2510 |
Edge Rounding |
|

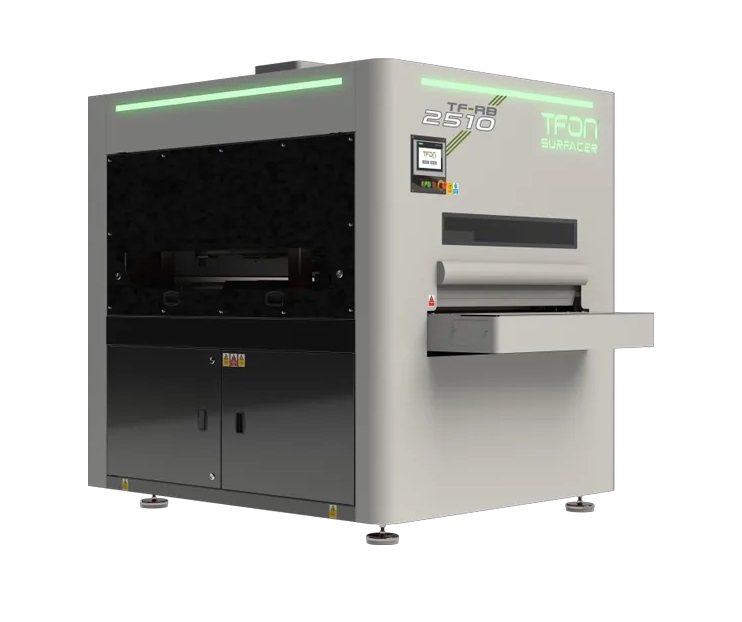

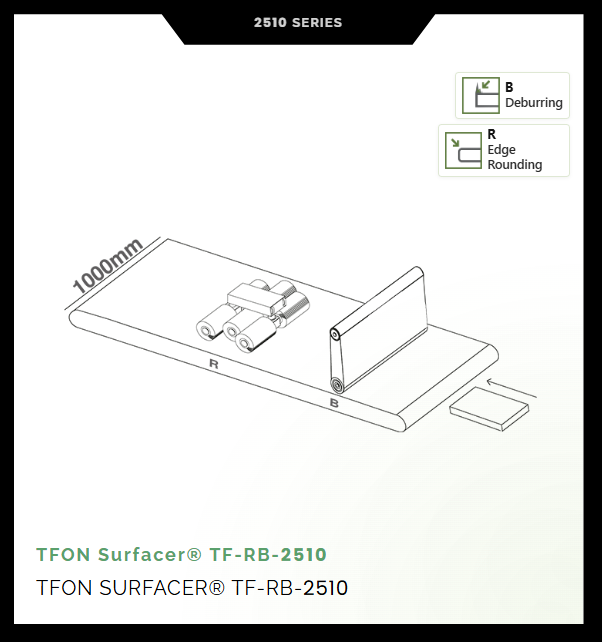

TF-RB-2510 |
Edge Rounding and Deburring |
|

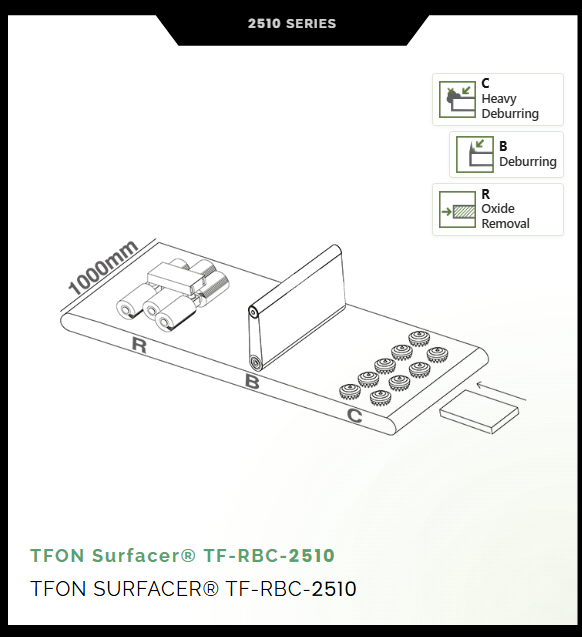

TF-RBC-2510 |
Oxide Removal, Deburring and Heavy Deburring |
|

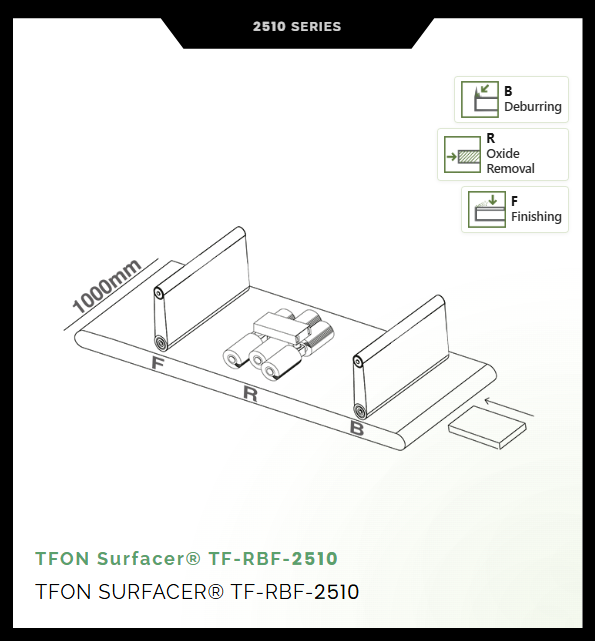

TF-RBF-2510 |
Oxide Removal, Deburring and Finishing |
|

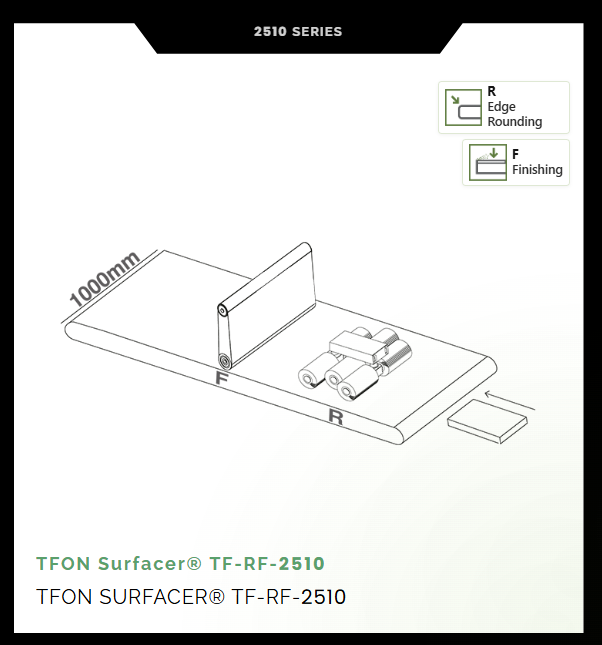

TF-RF-2510 |
Edge Rounding and Finishing |
Contact us to receive expert advice and select the TFON Surfacer® 2510 configuration that best suits your production requirements.
