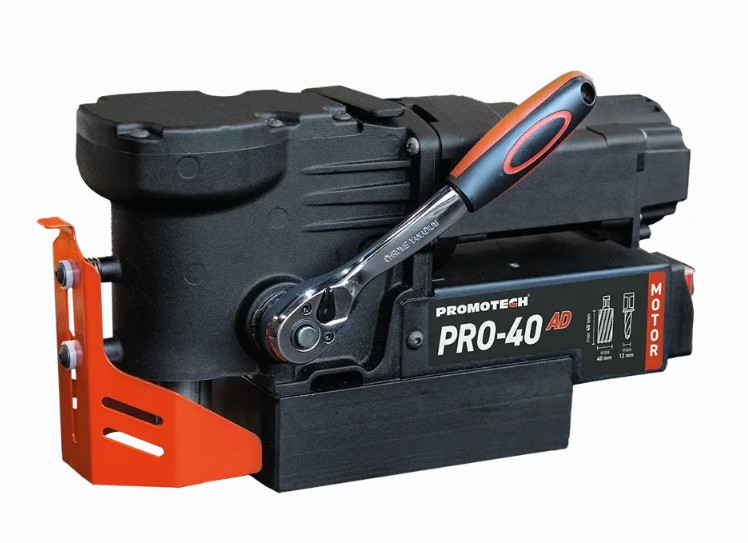

PRO-40 AD is a low profile mag drill, that fits in the tightest of spots.
Common Characteristics
Perfect solution for any applications in confined spaces, where
typical mag drills are too large.
Its powerful motor enables drilling of holes up to 40 mm (1-9/16”) in diameter and up to 40 mm (1-9/16”) deep. An innovative
ultra-strong magnetic base with high performance on air gaps makes it possible to work even on painted, rusted or thin surfaces.
Magnetic Power Adhesion Control (MPAC) protects both the drill and the operator from working on too thin or inadequate surfaces,
preventing the motor from engaging if the adhesive force is dangerously low.
PRO-40 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4”) Weldon shank.
Features&benefits:
• Low profile mag drill of 185 mm height only
• Ultra-strong magnetic base with 1009 kgf (9900 N) holding force
• Compact and lightweight design of just 10 kg
• Milling capacity up to 40 mm with annular cutters
• Accepts also twist drills with 19,05 mm (3/4”) Weldon shank
• Extended stroke of 45 mm allows up to 40mm depth of cut
• Magnetic Field Shape Control (MFSC) provides maximum holding
power on thin materials
• Integrated swarf guard
• Detachable feed lever (feat. ratchet) can be fixed from either side
• Lifting handle for easy transportation
• Cooling with a bottle
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 370
rpm |
| Motor Power | 1100
W |
| Weight | 10
kg |
| Max milling capacity TCT/HSS | 40/36
mm |
| Max drilling capacity | 12
mm |
| Max countersinking | 40
mm |
| Stroke | 45
mm |
| Max depth of cut | 40
mm |
| Voltage | 1~ 220–240
V |
| Magnet Base Dimensions | 168 x 84 x 48.5
mm |
| Min. Workpiece Thickness | 6
mm |
| Tool holder | 19
mm |
