Four-Speed Drilling Machine.
Common Characteristics

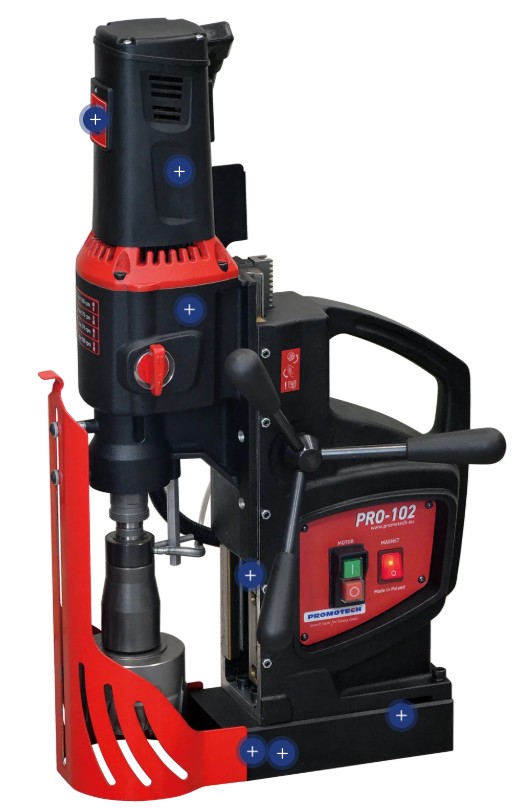

PRO-102 is a powerful 4-speed mag drill, enabling milling capacity up to 100 mm (4”) and drilling up to 31.75 mm (1-1/4”). Thanks to innovative lightweight smart magnet PRO-102 weighs only 24.0 kg (52.9 lbs).
Its rigid design extends tool life and semi-automatic gib adjustment enables simple, fast and correct operation to be done in a few easy steps.
PRO-102 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC).
The drill protects both the machine and the operator from work on too thin workpiece by means of Magnetic Power Adhesion Control (MPAC).
PRO-102 is also equipped with Energy Saving Base (ESB) that uses only 50% of its power when the motor is not running.
Features and benefi ts:
• powerful motor with heavy duty 4-speed gearbox
• milling with TCT or HSS cutters or drilling
• rigid design extends tool life
• innovative smart magnet with reduced weight
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece
• Energy Saving Base (ESB) uses only 50% of its power when motor is not running
• The motor stops automatically when the brushes are worn out (it is necessary to replace the brushes to restart the motor)
• semi-automatic gib adjustment
• lightweight design
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 100/175/275/500
rpm |
| Motor Power | 1650
W |
| Weight | 24
kg |
| Max milling capacity TCT/HSS | 100/80
mm |
| Max drilling capacity | 31.75
mm |
| Max countersinking | 63
mm |
| Stroke | 225
mm |
| Max depth of cut | 100
mm |
| Voltage | 1~ 220–240
V |
| MFSC | Да
|
| Magnetic clamping force | 1835/18 000
kgf/N |
| Magnet Base Dimensions | 110x49.8x8
mm |
| Min. Workpiece Thickness | 10
mm |
| Spindle | MT3
mm |
| Tool holder | 19 Weldon
mm |
