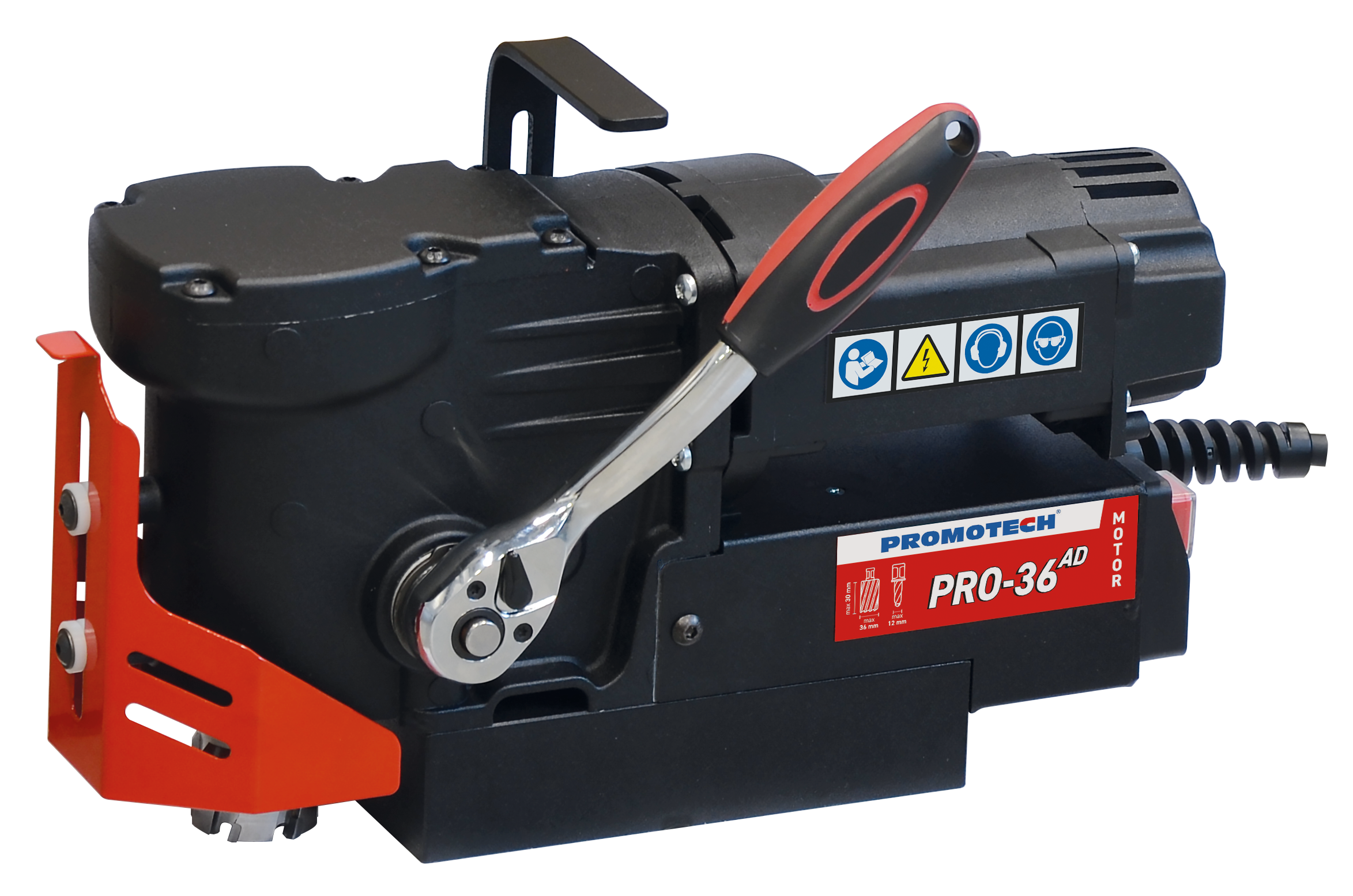

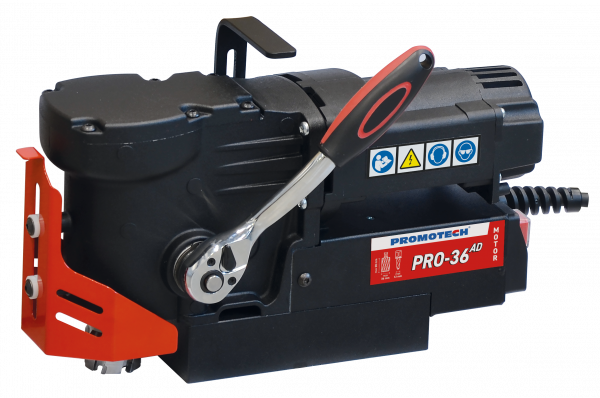

Ultra-low profile mag drill, that fits in the tightest of spots.
Common Characteristics
Perfect solution for any applications in confined spaces, where typical mag drills are too large.
A powerful motor and strong electromagnetic base enable drilling of holes up to 36 mm diameter to a depth of up to 30 mm.
PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm Weldon shank.
Features & benefits:
•Ultra-low profile mag drill of 176 mm height only
•Extremely low weight of just 9.5 kg
•Milling capacity up to 36 mm (1-7/16”)
•Accepts also twist drills with 19,05 mm (3/4”) Weldon shank
•Stroke – 39 mm
•Integrated swarf guard
•Detachable feed lever (feat. ratchet) can be fixed from either side
•Lifting handle for easy transportation
•Cooling with a bottle
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 370
rpm |
| Motor Power | 920
W |
| Weight | 9.5
kg |
| Max milling capacity TCT/HSS | 36
mm |
| Max drilling capacity | 12
mm |
| Max countersinking | 40
mm |
| Stroke | 39
mm |
| Max depth of cut | 30 TCT; 20 HSS
mm |
| Voltage | 1~ 220–240
V |
| Power consumption | 1000
W |
| MFSC | Да
|
| Magnetic clamping force | 908(8900)
kgf/N |
| Magnet Base Dimensions | 90 x 180 x 38.5
mm |
| Min. Workpiece Thickness | 6
mm |
| Tool holder | 19 Weldon
mm |
