Cordless Drilling Machine.
Common Characteristics

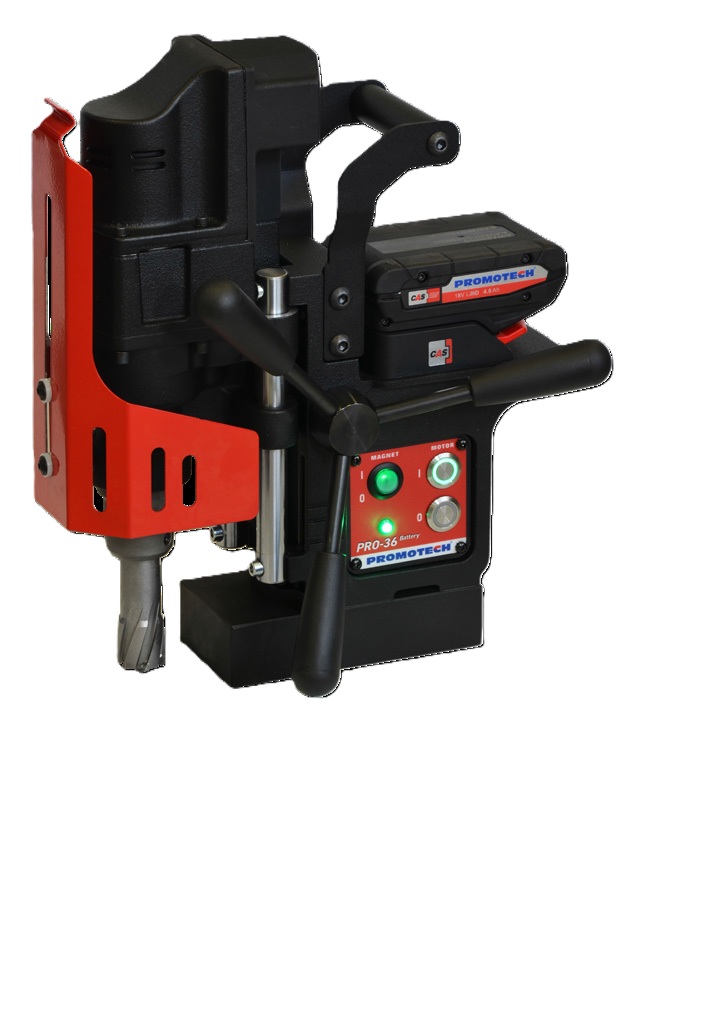

The PRO-36 Battery makes holes up to 36 mm in diameter by using annular cutters. The machine can also drill holes up to 12 mm in diameter twist drill bits. A cordless drill is equipped with an LED monitoring system that generates signals in green and red colors to indicate the current condition of the drill and give safety information. The control panel is equipped with so-called “vandal resistant” illuminated start/stop switches (green/red)
Features and benefits:
•LED Monitoring System indicates current condition of the drill and gives safety information
•LED interface flashes green when inadequate adhesion is detected due to e.g. gap or thin work piece
•dual bars guide system ensures extraordinary stiffness and adjustment free operation
•overload protection
•Tilt sensor stops the motor if machine breaks away
•Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
•Energy Saving Base(ESB) uses only 50% of its power when motor is not running
•innovative smart magnet with reduced weight.
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 260
rpm |
| Motor Power | 450
W |
| Weight | 11.5
kg |
| Max milling capacity TCT/HSS | 36
mm |
| Max drilling capacity | 12
mm |
| Stroke | 70
mm |
| Max depth of cut | 50
mm |
| Voltage | 18
V |
| MFSC | Да
|
| Magnetic clamping force | 765/7500
kgf/N |
| Magnet Base Dimensions | 80x160x38
mm |
| Min. Workpiece Thickness | 6
mm |
| Spindle | 19 Weldon
mm |
