Compact Drilling Machine.
Common Characteristics

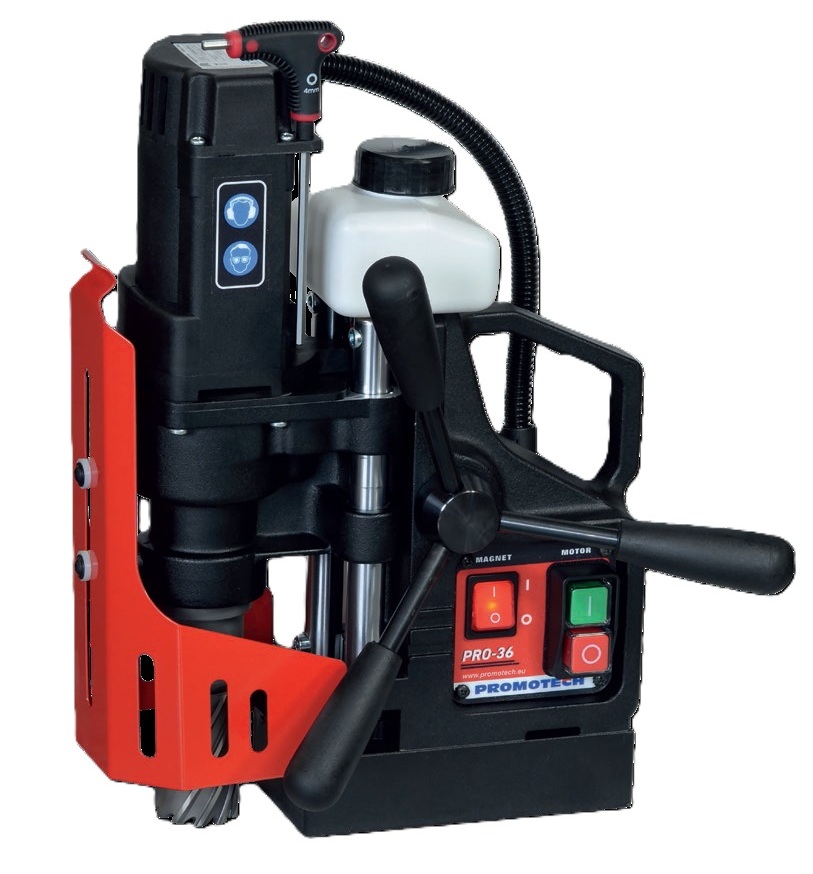

The PRO-36 makes holes up to 36 mm in diameter by using annular cutters. The machine can also drill holes up to 12 mm in diameter by means of twist drill bits with Weldon shank 19mm (3/4’’).
Compact design and excellent ratio weight/power make this mag drill a very popular choice for customers.
Features & benefits:
•Dual bars guide system ensures extraordinary stiffness
and adjustment free operation
•Compact size and ultra-lightweight – ideal for site work
•Rugged one piece slide and gear box for extra stability
•Purpose designed motor with heavy duty gear box
•Maintenance-friendly design makes it easy to use
•Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
•Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin work piece
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 350
rpm |
| Motor Power | 1020
W |
| Weight | 10
kg |
| Max milling capacity TCT/HSS | 36
mm |
| Max drilling capacity | 12
mm |
| Max countersinking | 40
mm |
| Stroke | 70
mm |
| Max depth of cut | 51
mm |
| Voltage | 1~ 220-240
V |
| MFSC | Да
|
| Magnetic clamping force | 917(9000)
kgf/N |
| Magnet Base Dimensions | 80 x 161 x 36,5
mm |
| Min. Workpiece Thickness | 6
mm |
| Tool holder | 19
mm |
