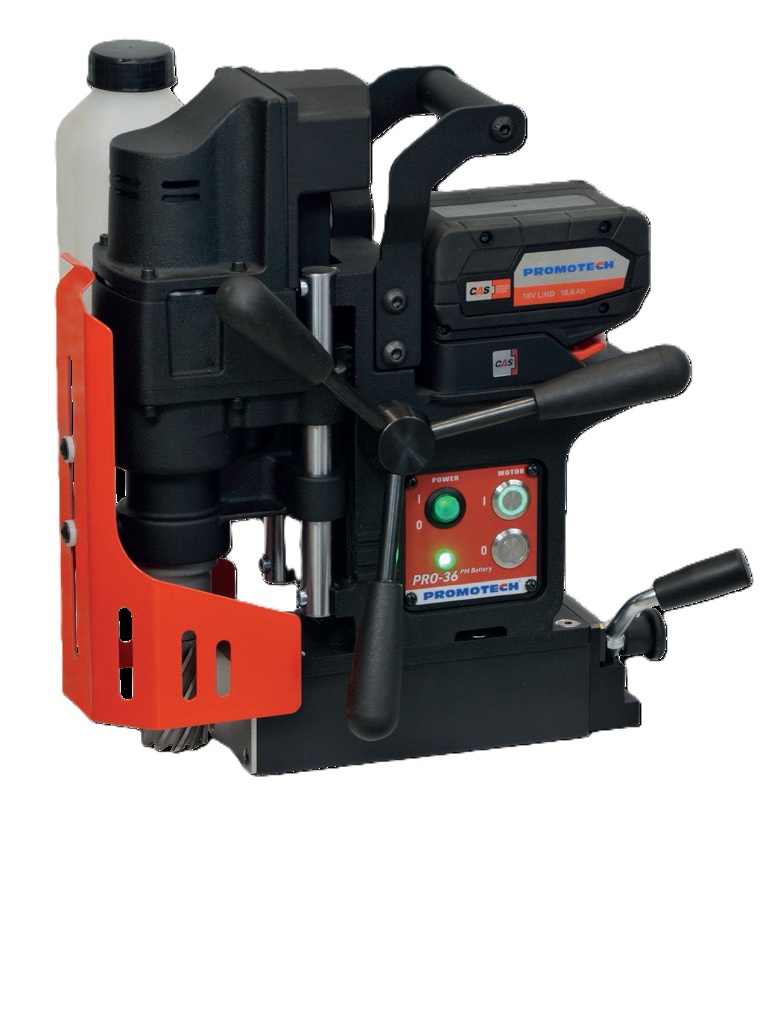

Cordless Drill With Permanent Mag Base
Common Characteristics
This special design battery-operated drilling machine equipped with a permanent magnetic base is dedicated to operate in remote areas, where no power supply is available.
The base includes very strong neodymium magnets and does not require any electricity to operate.
PRO-36 PM Battery is equipped with LED monitoring system that generates signals in green and red colors to indicate the current status of the drill and provide safety information.
The drill can be used with convex (min diameter – 80 mm) and concave (min diameter 1000 mm) materials.
Features and benefits:
•LED interface flashes green when inadequate adhesion is detected due to e.g. gap or thin work piece
•dual bars guide system ensures extraordinary stiffness and adjustment free operation
•overload protection
•tilt sensor stops the motor if machine breaks away
•control panel is equipped with so called „vandal resistant” illuminated start/stop motor buttons.
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 260
rpm |
| Motor Power | 400
W |
| Weight | 14.5
kg |
| Max milling capacity TCT/HSS | 36/30
mm |
| Max drilling capacity | 12
mm |
| Stroke | 70
mm |
| Max depth of cut | 50
mm |
| Voltage | 18
V |
| Magnetic clamping force | 714/7000
kgf/N |
| Magnet Base Dimensions | 75x188x53
mm |
| Min. Workpiece Thickness | 6
mm |
| Tool holder | 19 Weldon
mm |
