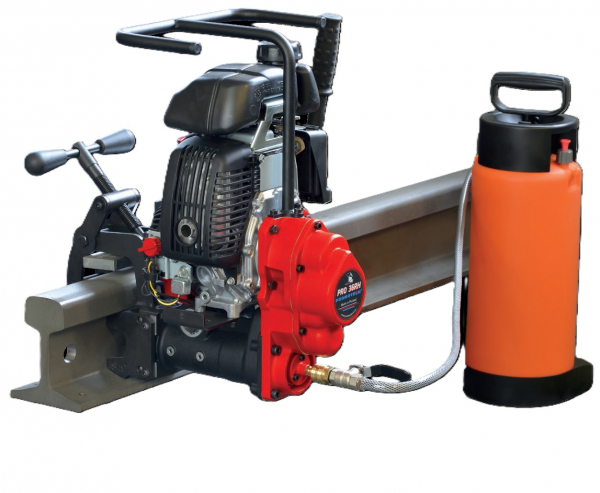

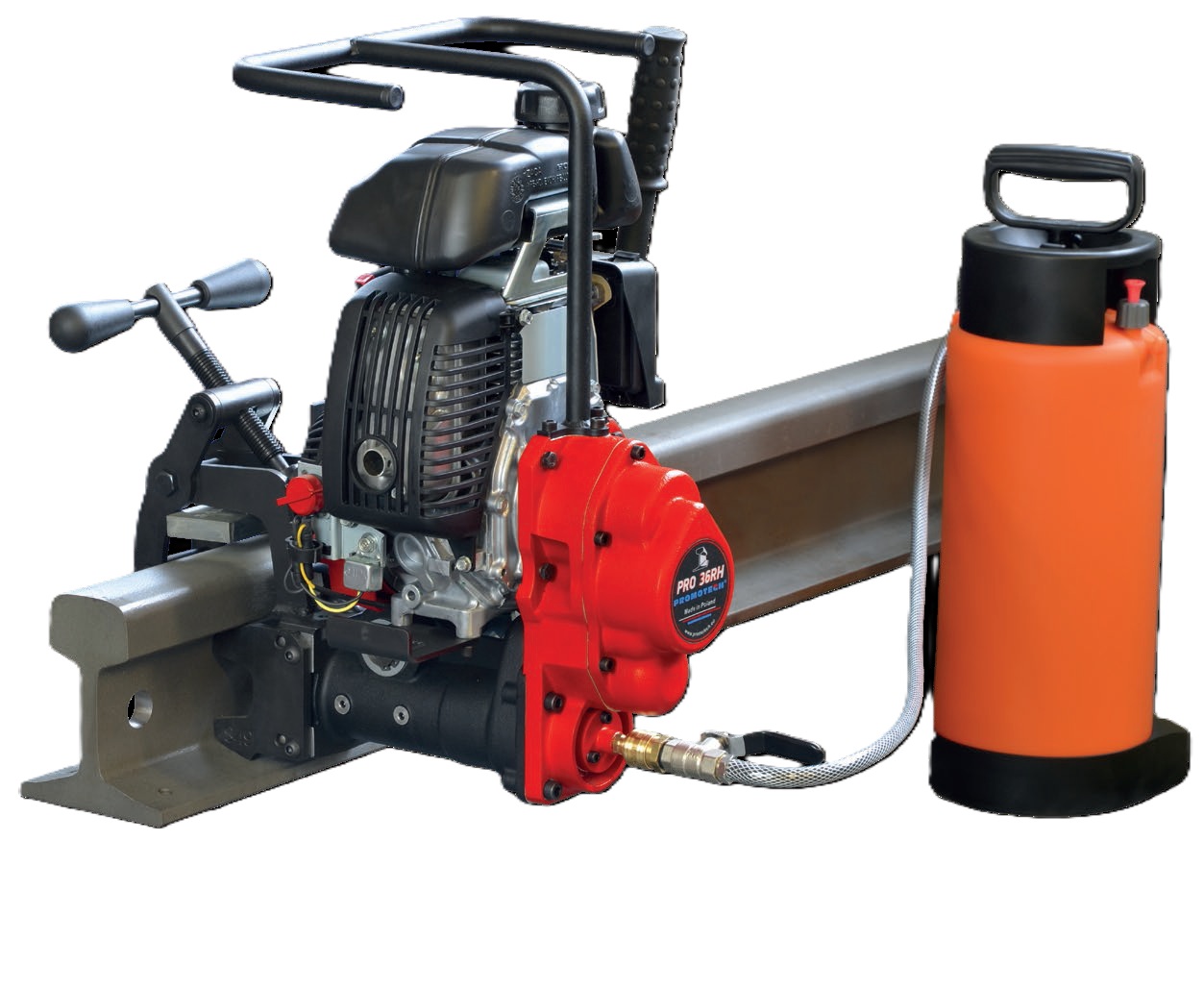

Petrol rail drilling machine equipped with Honda engine.
Common Characteristics
PRO-36RH enables drilling in rails of any standard with two optional rail profile templates and one-hole center positioner, to be chosen by customers from a comprehensive range of auxiliary accessories dedicated to a variety of types of rails. PRO-36RH can also be ordered with an electric motor as PRO-36R.
Features and benefits:
Powerful 4-stroke petrol motor enables drilling of holes up to 36 mm in diameter
Compact and lightweight rail drill
No need for an electric supply means it is ideally suited for site work
Fast positioning, quick clamping, and instant unlocking mechanisms make it easy to use and safe device
Pressure Coolant system including 5l bottle enables forced feeding of the cooling medium in any drilling positions
Custom-made positioners and templates to suit any required rail standards are available on request
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 225
rpm |
| Motor Power | 1500
W |
| Weight | 18.5
kg |
| Max milling capacity TCT/HSS | 36
mm |
| Max drilling capacity | 16
mm |
| Stroke | 39
mm |
| Max depth of cut | 30
mm |
| Spindle | 19 3/4" Weldon
mm |
