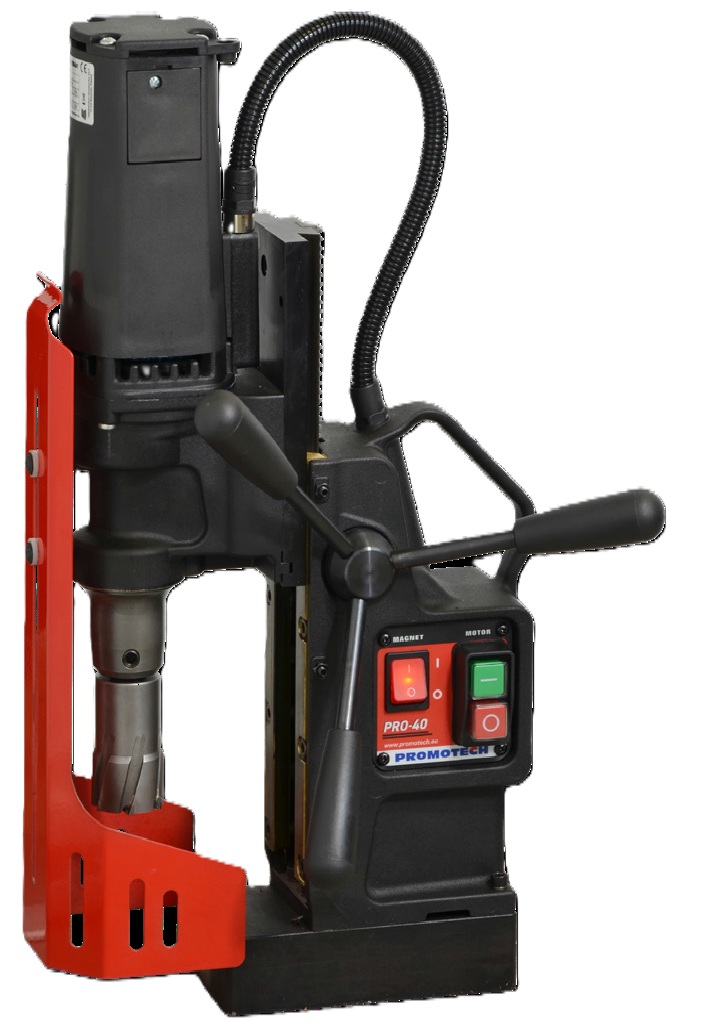

Practical magnetic drill.
Common Characteristics
PRO-40 featuring a purpose-designed motor and 1-speed gearbox of 440 rpm is optimized to provide appropriate speed for work with HSS cutters up to Ф 40 mm and cylindrical twist drills up to Ф 16 mm. Rigid construction optimized by means of FEA (finite element analysis) software extends tool life. The compact design along with an innovative smart magnet with reduced weight makes it a lightweight machine.
Features and benefits:
• Compact design with excellent ratio weight/power
• Purpose designed motor
• Motor Speed 440 rpm (under load)
• Spindle equipped with Weldon ?”
• Innovative smart magnet with reduced weight
• Rigid design to extend tool life
• Large stroke enables the use of long tools
• Motor cable with additional protective cover
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin work piece
• Energy Saving Base (ESB) uses only 50% of its power when motor is not running
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 440
rpm |
| Motor Power | 1100
W |
| Weight | 13
kg |
| Max milling capacity TCT/HSS | 40/40
mm |
| Max drilling capacity | 16
mm |
| Stroke | 160
mm |
| Max depth of cut | 50
mm |
| Voltage | 1~ 220–240
V |
| MFSC | Да
|
| Magnetic clamping force | 1009/9900
kgf/N |
| Magnet Base Dimensions | 84x168x41.5
mm |
| Min. Workpiece Thickness | 6
mm |
| Spindle | 19
mm |
| Tool holder | 19
mm |
