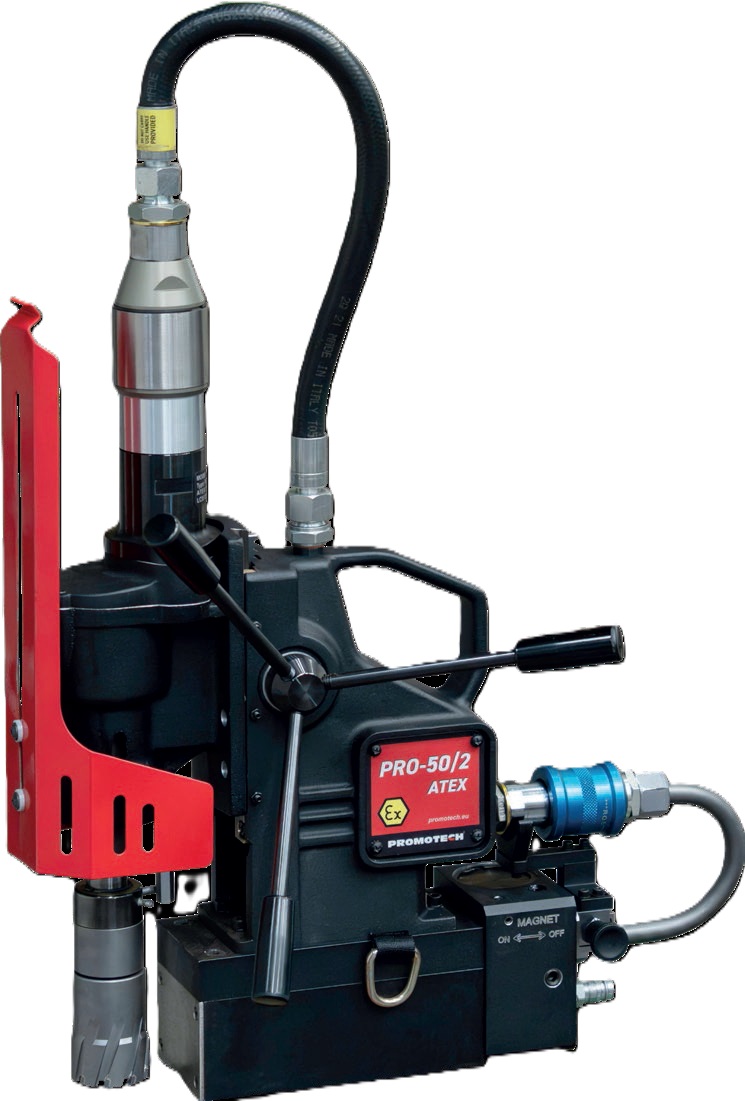

2-Speed Pneumatic Mag Drill.
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 190
rpm |
| Motor Power | 800
W |
| Weight | 24.5
kg |
| Max milling capacity TCT/HSS | 50
mm |
| Max drilling capacity | 23
mm |
| Stroke | 150
mm |
| Max depth of cut | 50
mm |
| Magnetic clamping force | 968/9500
kgf/N |
| Magnet Base Dimensions | 90x192.5x66.5
mm |
| Min. Workpiece Thickness | 10
mm |
| Spindle | MT2
mm |
| Air consumption | 1400
l/min |
| Pressure | 6
bar |
| Minimum diameter of air hoses | 13
mm |
| Required ambient temperature | 0-40
° |
| Minimum pipe diameter | 250
mm |
| Potentially explosive atmosphere | II 2G Ex h IIC 135?C (T4) Gb II 2D Ex h IIIB T135?C Db
|
| Overall dimensions L x W x H | 487x186x790
|
