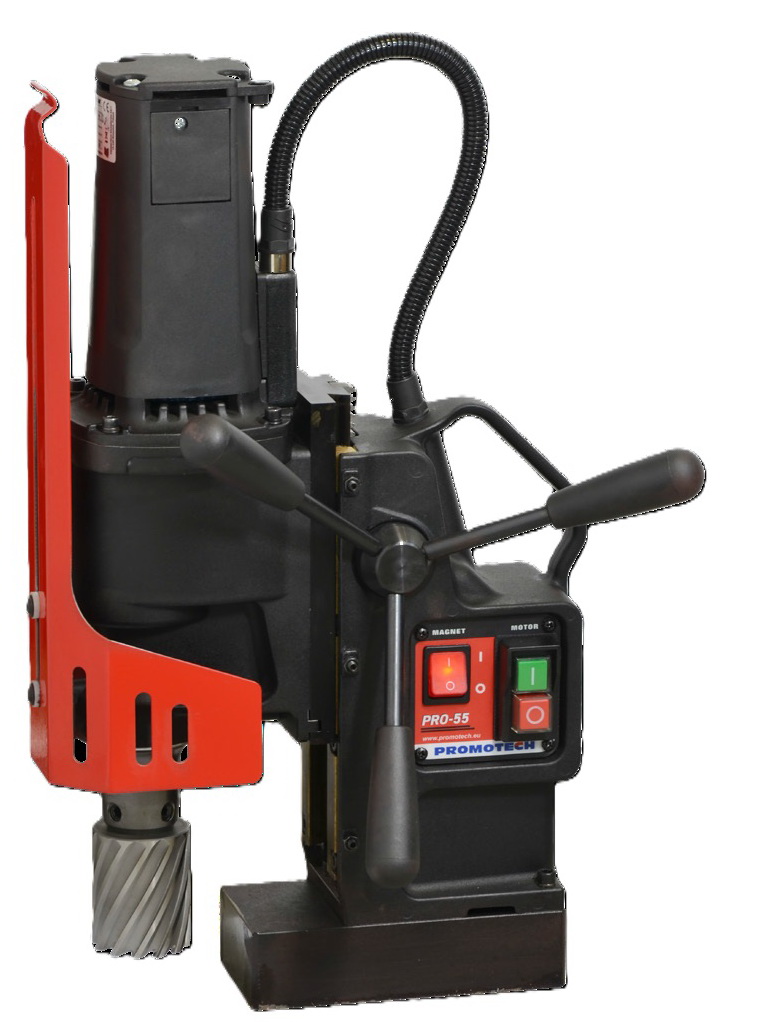

2-speed Drilling Machine.
Common Characteristics
PRO-55 featuring purpose designed motor and 2-speed gear box 200/400 rpm is optimized to provide appropriate speed for work with HSS cutters up to Ф 50 mm and twist drills up to Ф 16 mm. Rigid construction, optimized by means of FEA
(finite element analysis) software extends tool life and enables depth of cut up to 75 mm.
Features and benefits:
•Compact design with excellent ratio weight/power
•Purpose designed motor
•Motor Speeds 200/400 rpm (under load)
•Spindle equipped with Weldon ?”
•Innovative smart magnet with reduced weight
•Rigid design to extend tool life
•Large stroke enables the use of long tools
•Motor cable with additional protective cover
•Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
•Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece
•Energy Saving Base (ESB) uses only 50% of its power when motor is not running
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 200/400
rpm |
| Motor Power | 1100
W |
| Weight | 15
kg |
| Max milling capacity TCT/HSS | 55/50
mm |
| Max drilling capacity | 16
mm |
| Stroke | 160
mm |
| Max depth of cut | 75
mm |
| Voltage | 1~ 220–240
V |
| MFSC | Да
|
| Magnetic clamping force | 1009(9900 N)
kgf/N |
| Magnet Base Dimensions | 84x168x41.5
mm |
| Min. Workpiece Thickness | 6
mm |
| Spindle | 19
mm |
| Tool holder | 19
mm |
