Annular Cutter Drilling Machine.
Common Characteristics

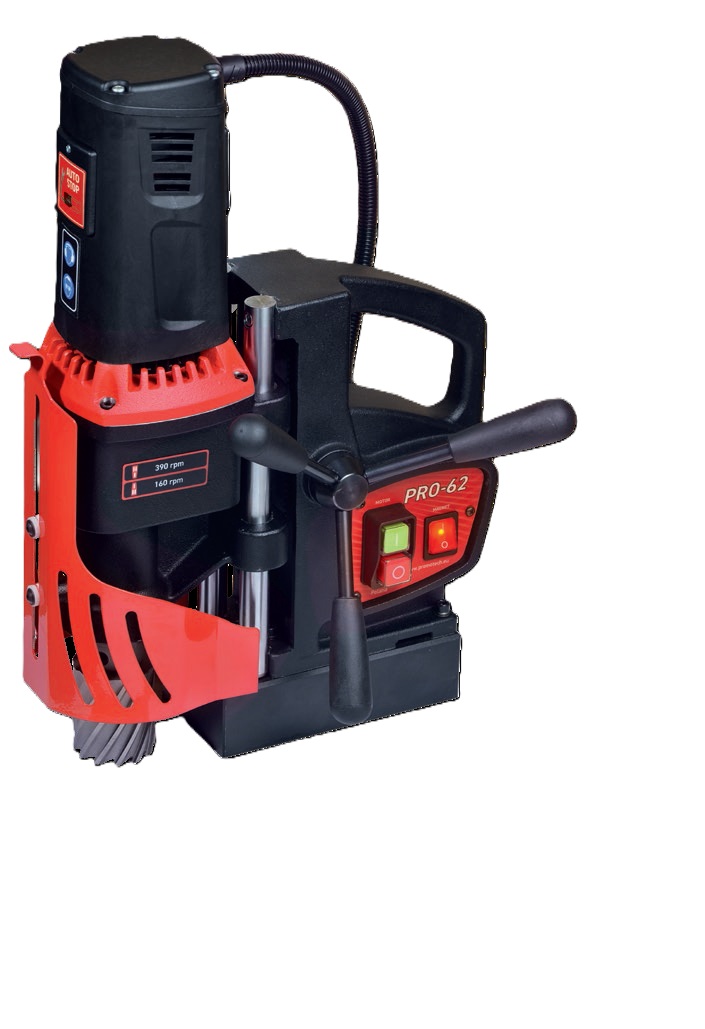

The PRO-62 drill equipped with a 19 mm (3/4?) Weldon toolholder uses TCT and HSS annular cutters. The strong motor enables cutting capacity up to 65 mm (2-9/16?) and a depth of cut up to 75 mm (3?). Dual bars guide system ensures extraordinary stiffness and adjustment-free operation.
Features and benefits:
•powerful motor with heavy duty 2-seed gearbox
•maintenance free rail guide system thanks to dual guide bars
•innovative smart magnet with reduced weight
•rigid design extends tool life
•Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
•Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece
•Energy Saving Base(ESB) uses only 50% of its power when motor is not running
•The motor stops automatically when the brushes are worn out (it is necessary to replace the brushes to restart the motor)
•milling with TCT or HSS cutters
•drilling with twist drills feat. Weldon shank
•large coolant container
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 160/390
rpm |
| Motor Power | 1600
W |
| Weight | 17
kg |
| Max milling capacity TCT/HSS | 65
mm |
| Stroke | 95
mm |
| Max depth of cut | 75
mm |
| Voltage | 1~ 220–240
V |
| MFSC | Да
|
| Magnetic clamping force | 1122/11 000
kgf/N |
| Magnet Base Dimensions | 90x180x48
mm |
| Min. Workpiece Thickness | 8
mm |
| Tool holder | 19 Weldon
mm |
