Two-Speed Drilling Machine.
Common Characteristics

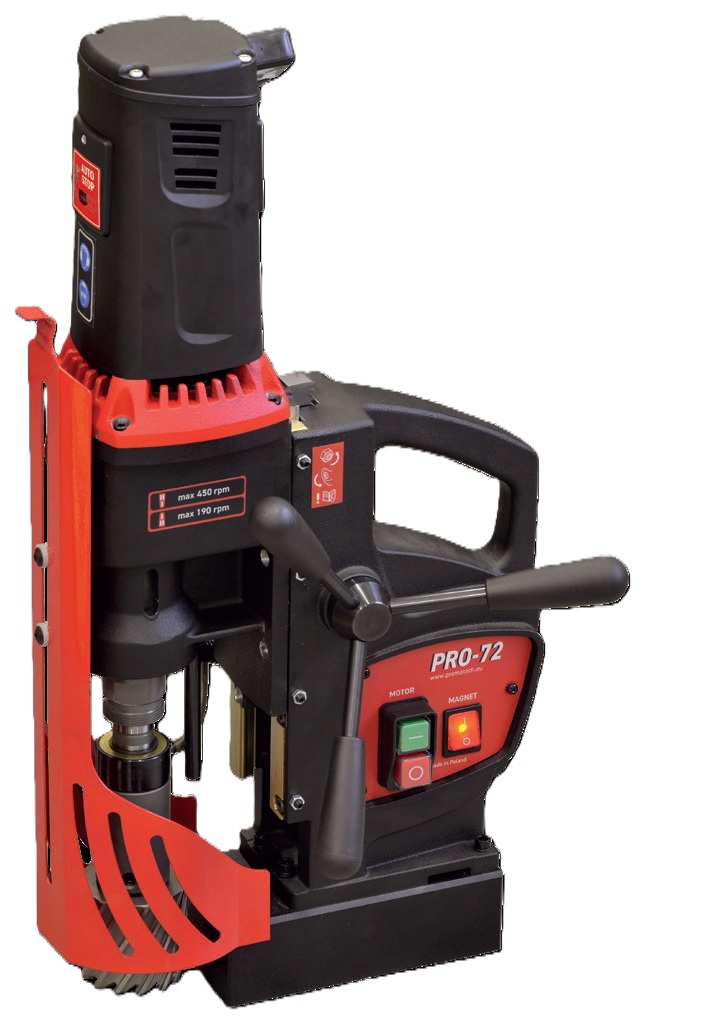

Mag drill enabling milling capacity up to 70 mm and drilling up to 25 mm.
Thanks to innovative lightweight smart magnet PRO-72 weighs only 18,0 kg.
Its rigid design extends tool life and semi-automatic gib adjustment enables simple, fast and correct operation to be done in a few easy steps.
PRO-72 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC).
The drill protects both the machine and the operator from work on too thin workpiece by means of Magnetic Power Adhesion Control (MPAC).
Features and benefits:
•powerful motor with heavy duty 2-speed gearbox
•milling with TCT or HSS cutters or drilling
•rigid design extends tool life
•innovative smart magnet with reduced weight
•Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
•Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece
•Energy Saving Base (ESB) uses only 50% of its power when motor is not running
•The motor stops automatically when the brushes are worn out (it is necessary to replace the brushes to restart the motor)
•semi-automatic gib adjustment
•lightweight design.
Technical Data
| Parameter | Value |
|---|
| Motor Speed (under load) | 160/390
rpm |
| Motor Power | 1600
W |
| Weight | 18
kg |
| Max milling capacity TCT/HSS | 70
mm |
| Max drilling capacity | 25
mm |
| Stroke | 190
mm |
| Max depth of cut | 75
mm |
| Voltage | 1~ 220–240
V |
| Magnetic clamping force | 1122/11 000
kgf/N |
| Magnet Base Dimensions | 92x180x54
mm |
| Min. Workpiece Thickness | 8
mm |
| Spindle | MT3
mm |
| Tool holder | 19 Weldon
mm |
