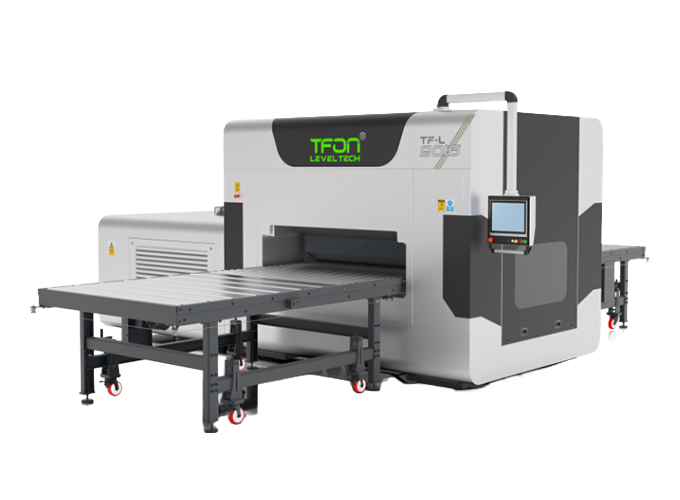

Leveling and Stress Relief Machines TFON Leveltech® L Series

For manufacturers processing thick metal plates and components that require outstanding flatness, high geometric accuracy, and effective relief of internal stresses generated after laser, plasma, or oxy-fuel cutting.
Common Characteristics

The TFON Leveltech® L Series is TFON's most powerful standard range of sheet metal leveling machines.

The machines in this series process materials with thicknesses ranging from 1 to 30 mm and utilize a high-precision servo-hydraulic gap adjustment system. Thanks to the powerful multi-roll leveling technology, the L Series delivers excellent leveling performance even for heavy-duty and large-format workpieces. This significantly improves the quality of downstream manufacturing operations such as welding, CNC machining, bending, painting, and final assembly.

The series is designed for high-production industrial environments where reliability, maximum productivity, and consistently high processing quality are essential.



Advantages

  • Precise leveling of sheet metal with thicknesses from 1 to 30 mm

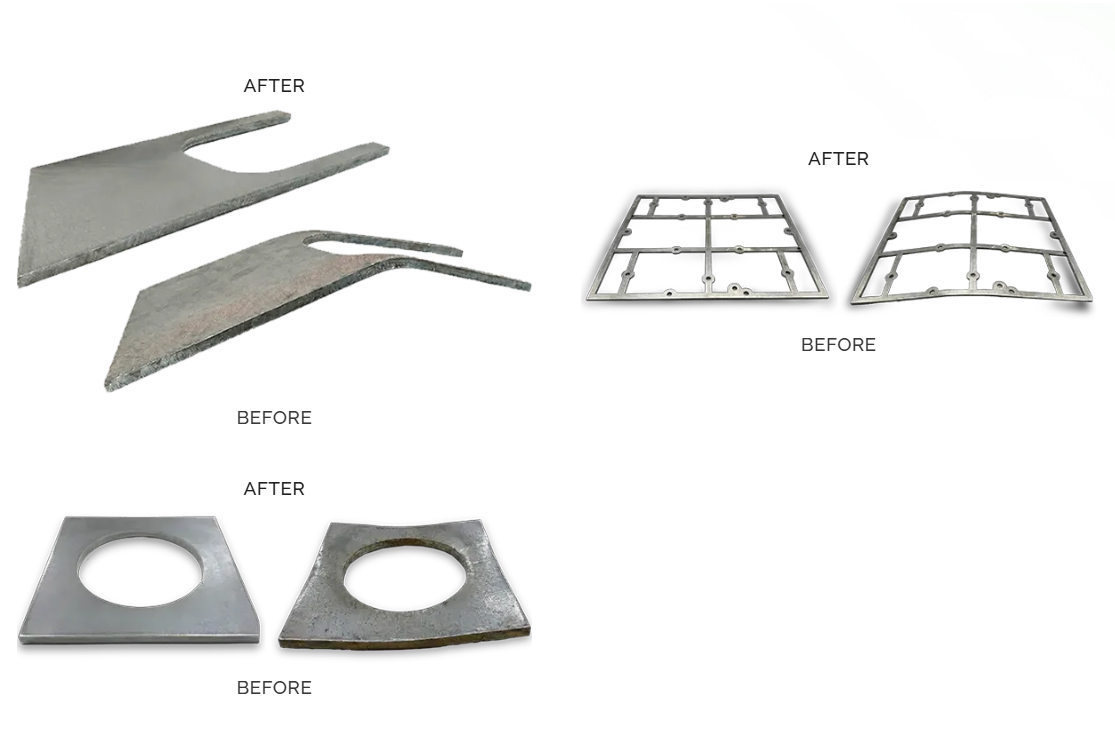

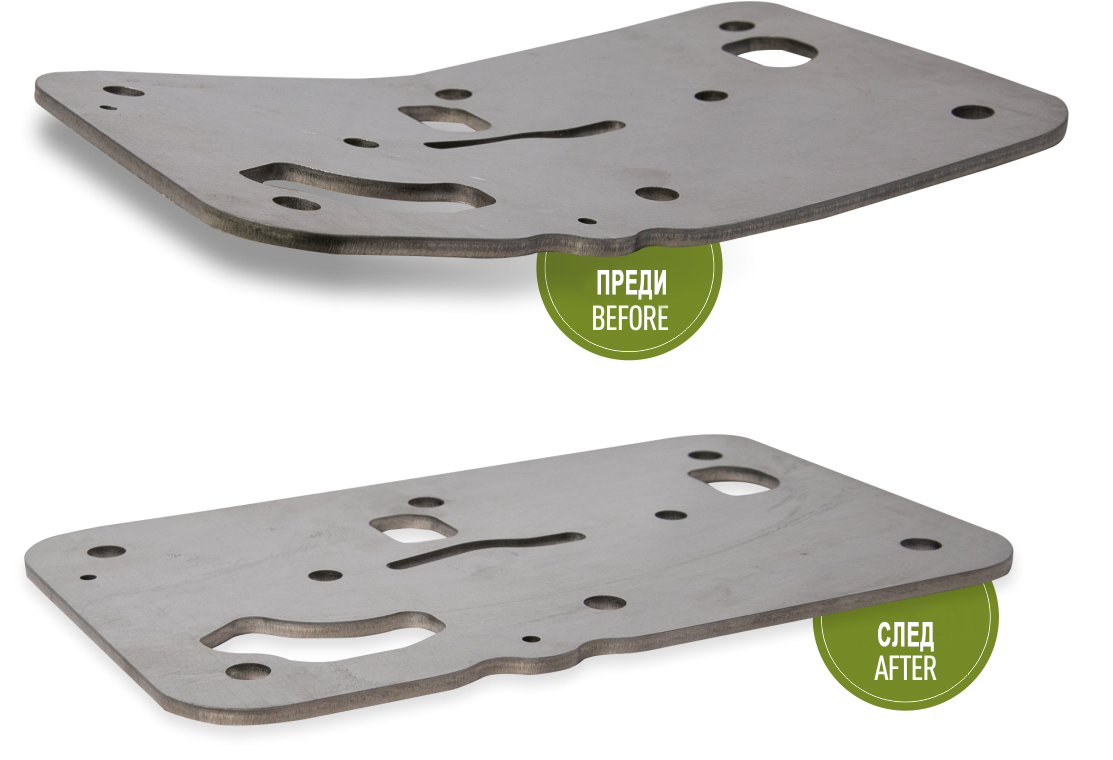

  • Relief of internal stresses after thermal cutting processes.
  • Excellent flatness and geometric accuracy.
  • Reduced scrap and rework in subsequent manufacturing operations.
  • Improved welding quality and machining accuracy.
  • Servo-hydraulic control of the leveling gap.
  • PLC control system with touchscreen display.
  • Overload protection.
  • High productivity during continuous operation.
  • Heavy-duty industrial construction.
  • Easy integration into automated production lines.
  • Low operating costs and long service life.



Technical Specifications

Technical Parameter

TF-L 9060

TF-L 9011

TF-L 9013

TF-L 9016

TF-L 9020

Maximum Material Width

600 mm

1100 mm

1300 mm

1600 mm

2000 mm

Material Thickness

1 – 30 mm

1 – 30 mm

1 – 30 mm

1 – 30 mm

1 – 30 mm

Number of Leveling Rollers

19

19

19

19

19

Roller Diameter

56 mm

56 mm

56 mm

56 mm

56 mm

Minimum Material Length

160 mm

160 mm

160 mm

160 mm

160 mm

Leveling Gap Adjustment

Servo Hydraulic / PC Control

Servo Hydraulic/ PC Control

Servo Hydraulic/ PC Control

Servo Hydraulic/ PC Control

Servo Hydraulic / PC Control

Quick Changeover for Cylinders

Standard

Standard

Standard

Standard

Standard

Screen

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Touch Screen

Machine Size (WxLxH)

2350 x 2450 x 4060 mm

2350 x 2450 x 4560 mm

2350 x 2450 x 4760 mm

2350 x 2450 x 5060 mm

2350 x 2450 x 5460 mm

Total Weight

28 500 kg

33 000 kg

34 550 kg

38 000 kg

39 600 kg
