Bevelling machine TAG PREP 16
Common Characteristics

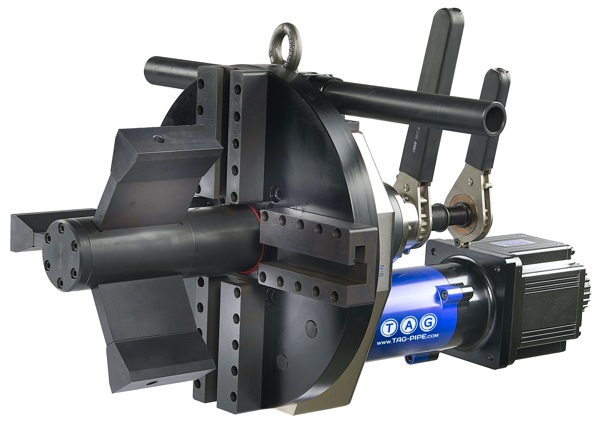

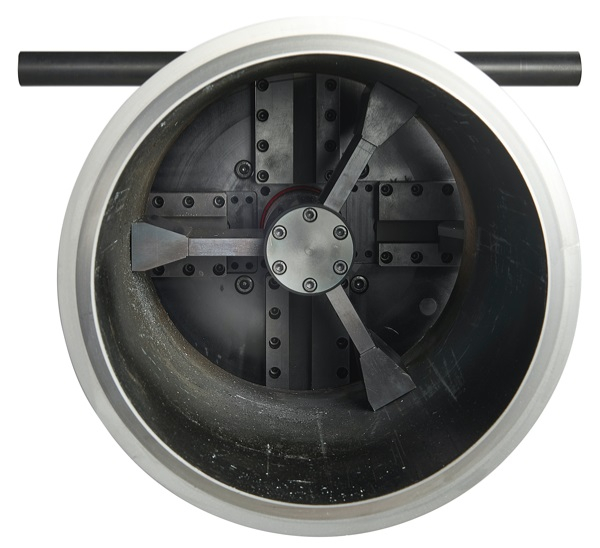

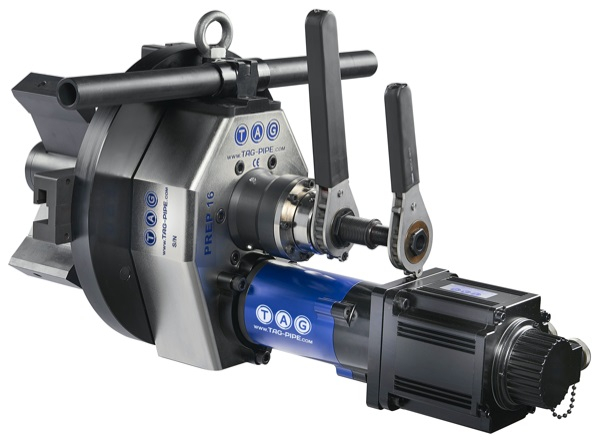

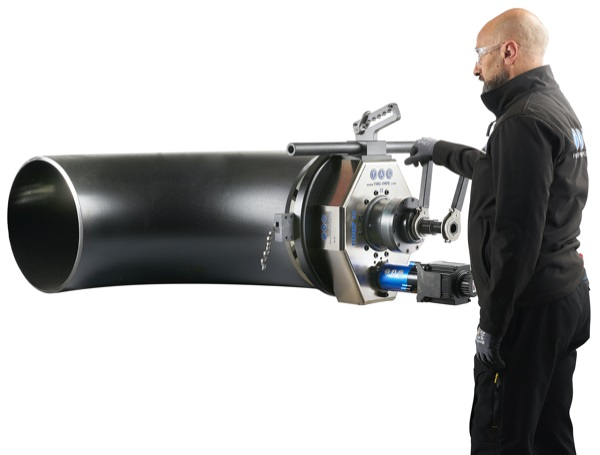

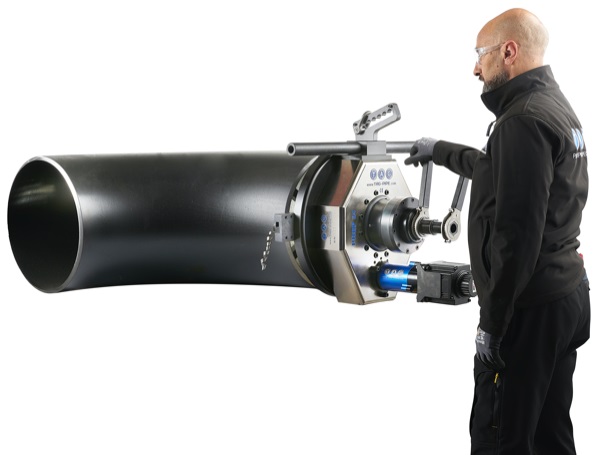

The bevelling machine TAG PIPE PREP 16 is available with electric and pneumatic drive. To enable ease of set up, the machine is eqipped with a double-sided joke with removable extensions so the machine can be easily installed and removed from the pipe.
Technical Data
| Parameter | Value |
|---|
| Locking tube range | 72- 385
mm |
| Recommended working range | 72-406
inch |
| Idle speed | 2-21
rpm |
| Torgue | 1770+
kgm/nm |
| Length of axial feed | 35
mm |
| Max acoustic radiation | 45
dB |
| Max operating temperature | 60
C° |
| Weight | 40
kg |
| Motor power | 1750
W |
| Voltage | 110/ 220
V |
| Frequency | 50/ 60
Hz |
